Indoor/Outdoor Installation - DIODE LED AlphaTECH LED STRIP LIGHT Installation Manual

a
UNDERWIRE CHANNEL
1
*Note: Placing AlphaTECH
channel may not be necessary nor recommended.

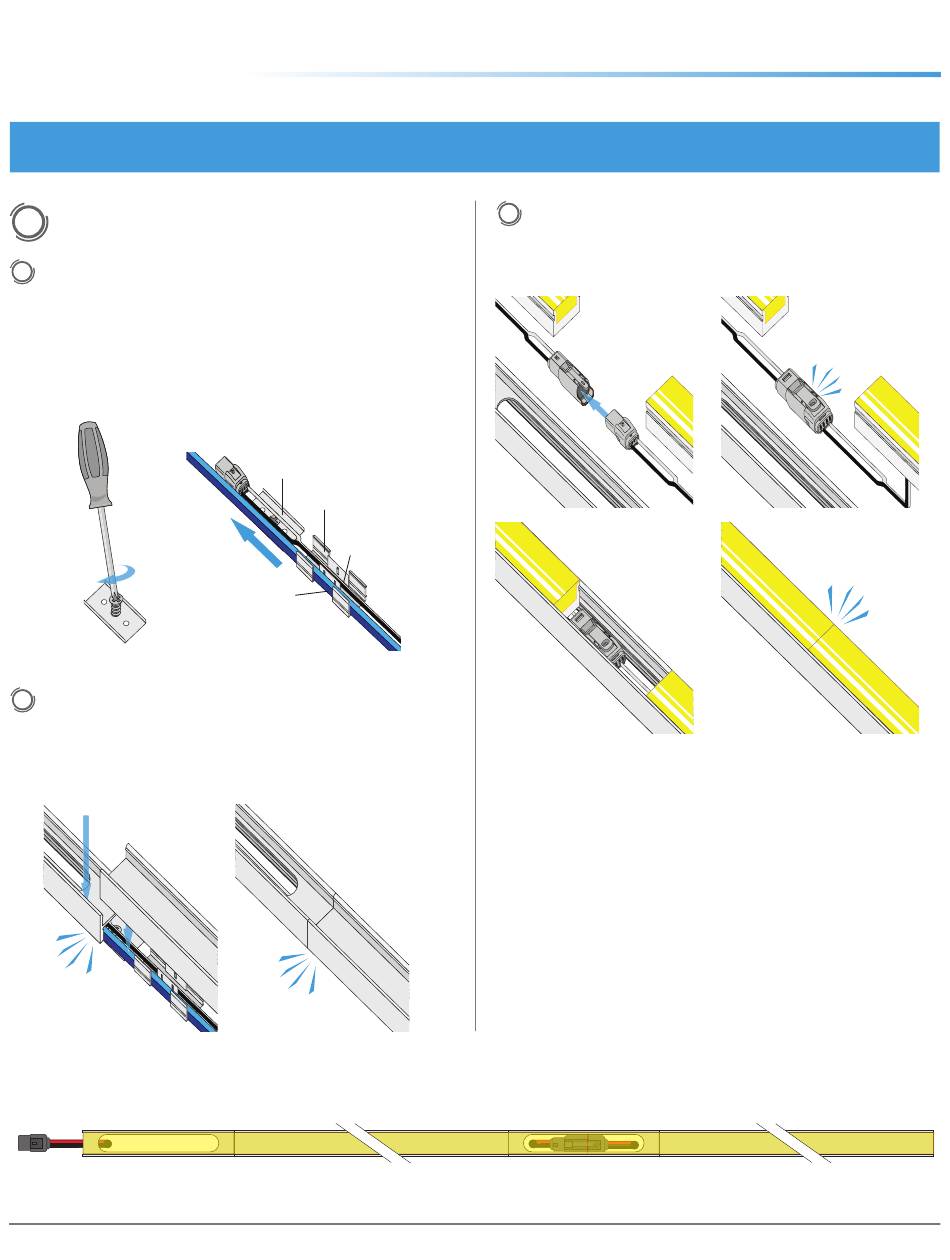

Fasten mounting clip to surface. If running wire
under channel, place AlphaTech wires in offset
(smaller) side of strain relief, and any thru-wires on
opposite (wider) side of strain relief.
2 Place Underwire
mounting clip, over strain relief, to create smooth,
linear surface.
Beginning of run
(6" Connection Channel)
LED Strip Light INSTALLATION GUIDE
AlphaTECH
®

INDOOR/OUTDOOR INSTALLATION

LED Strip Light within another
®
Mounting Clip
Strain relief
End Entry
Connector/AlphaTech wire
(place in offset)
or
Bottom Entry
2.5 in. (63.5mm) 20/2 AWG Wire
Thru-wires
(place opposite of offset)
Bottom Entry
2.5 in. (63.5mm) 20/2 AWG Wire
Channels end-to-end
L 48 in.
(1219.2 mm)
W .62 in.
(15.74mm)
Continue run
(48" Channels)
AlphaTECH
Connect AlphaTECH
3
firmly into channel. If necessary, include a small
amount of silicone adhesive/sealant within the
channel to hold it in place.
2.5 in. (63.5mm) 20/2 AWG Wire
2.5 in. (63.5mm) 20/2 AWG Wire
onto
H .41 in. W .76 in. H .62 in. W .76 in.
(10.4mm)
(19.3mm) (15.74mm) (19.3mm)
Additional connections
(6" Connection Channel)
3 OF 8
LED STRIP LIGHT
®
INSTALLATION GUIDE
LED Strip Light, then press
®
L 6 in.
(152.4 mm)
Run Completion
(48" Channel)
IG121620-3.0
