DRY LOCATION
SAFETY & WARNINGS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Install in accordance with national and local electrical
code regulations.
2. This product is intended to be installed and serviced by
a qualified, licensed electrician.
3. Do not modify or disassemble this product beyond
instructions or the warranty will be void.
4. Do not use if there is any damage to the fixture or wiring.
Inspect periodically.
5. Do not install near areas with exposure to salt water or
chlorinated water.
6. Do not install in direct sunlight or damage to the LED
phosphor will occur.
7. Do not attempt to fix this product in the field.
8. Failure to follow safety warnings, and installation
instructions will void the warranty for this product.

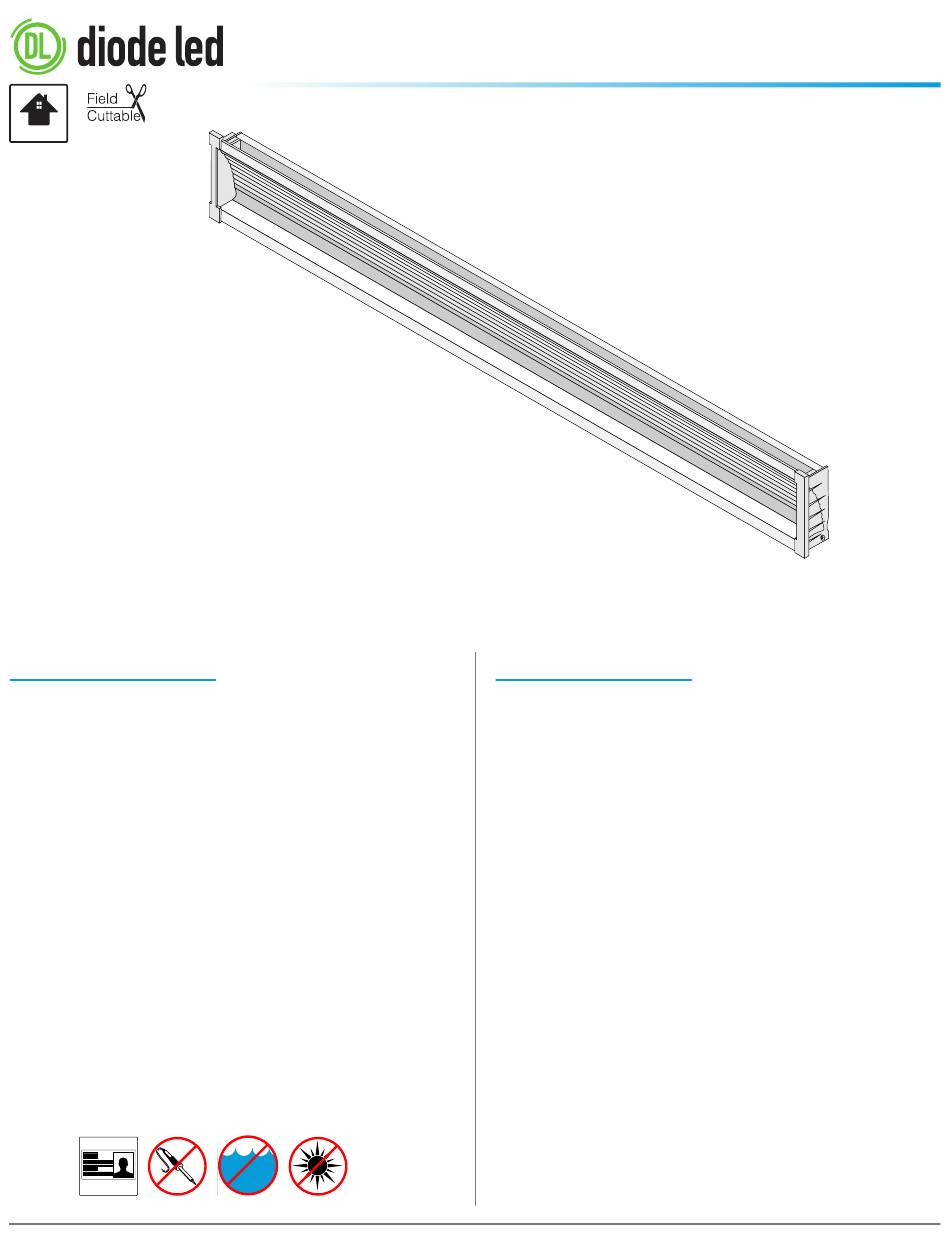

CHROMAPATH
BUNDLE: REFLECTOR
®
®
INSTALLATION GUIDE
CHROMAPATH
COMPATIBILITY LIST
The following products are compatible with this CHROMAPATH
Bundle Channel and Cover. Components not listed here are not
compatible.
TAPE LIGHT
AVENUE 24
™
BLAZE
™
DAZZLE
RGB
®
FLUID VIEW
1 OF 3
BUNDLE: REFLECTOR
®
ALUMINUM CHANNEL
INSTALLATION GUIDE
ULTRA BLAZE
VALENT
®
VALENT
®
®
®
™
HD
IG061518-2.0
