DIODE LED BROADWAVE DL-120V-BW-WW-RGBW-4F-BL Installation Manual

®
PLEASE READ ALL INSTRUCTION BEFORE ATTEMPTING INSTALLATION
l .To prevent personal injury or product damage only licensed electricians should install.
2.To avoid electrical shock or component damage, disconnect power before attempting installation or servicing.
3.This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric
codes and safety standards.
4.Disconnect product and allow cooling prior to any further steps.
5.Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage
and/or product malfunction.
6.To prevent product malfunction and/or electrical shock this product must be properly grounded.
7.This luminaire is designed to operate in ambient temperatures ranging from -40
LED board facing downward.
8.The input voltage is l20V-277VAC .

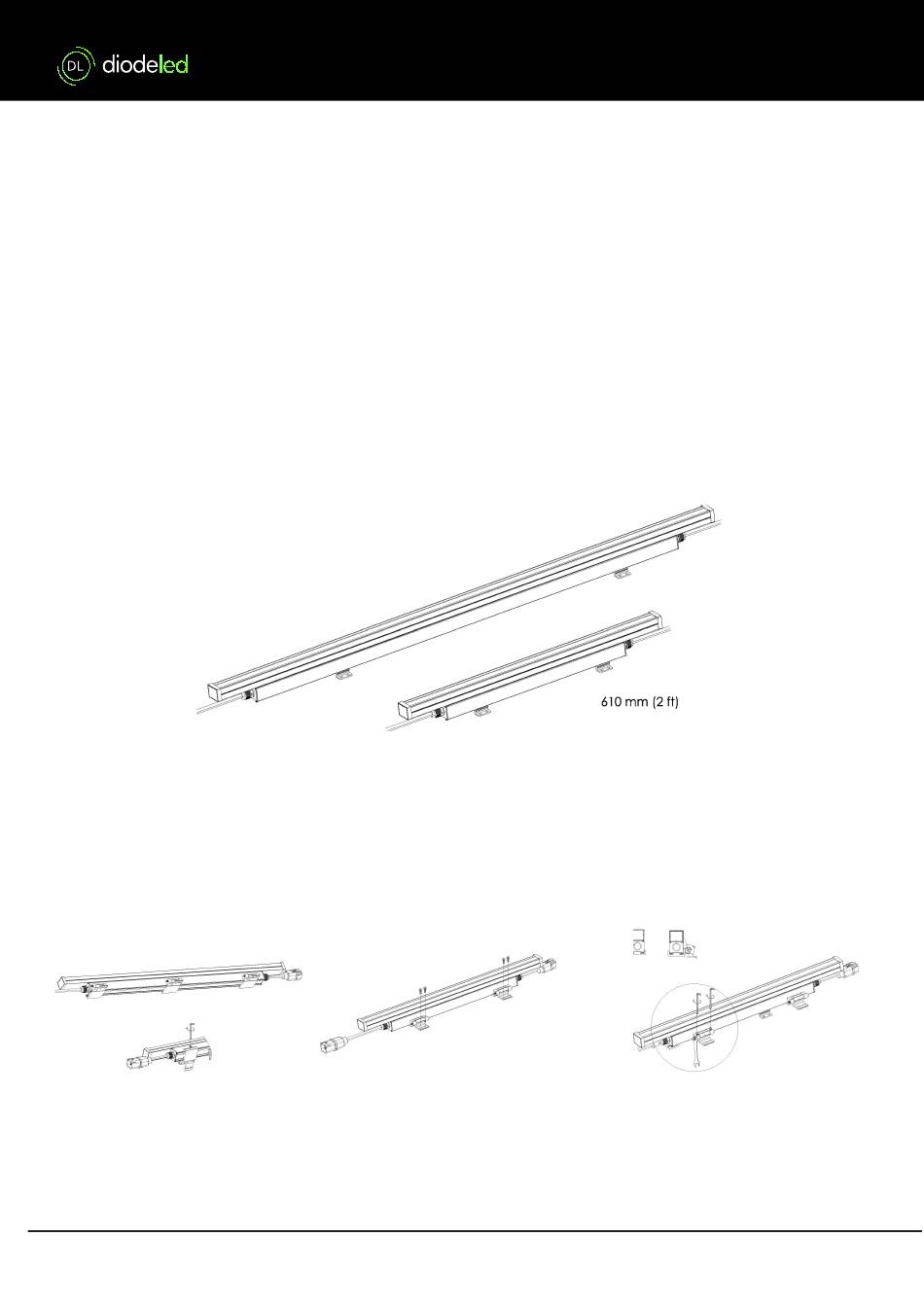

• Mount luminaires
1. Slide the mounting brackets into the
fixture and loosen the inner allen
screws.
INSTALLATION GUIDE | BROADWAVE LED WALL WASHER
1 OF 2
1200 mm (4 ft)
2. Secure the fixture to the wall or
mounting surface by 4 screws.
BROADWAVE® LED WALL WASHER
INSTALLATION GUIDE
° °
C to 50 C and to be horizontally mounted with the
3. Aim the luminaire to the required angle
and tighten the inner allen screws.
