COLOR-CHANGING
SAFETY & WARNINGS
1. Install in accordance with national and local electrical
code regulations.
2. This product is intended to be installed and serviced by a
qualified, licensed electrician.
3. Do not modify or disassemble this product beyond
instructions or the warranty will be void.
4. All plastics are affected by the elements and may shift
in color and other properties after product installation,
particularly with direct exposure to sun, chlorinated
water, and other chemicals.
5. Only install with a Listed Class 2 DC LED driver.
6. To avoid Voltage Drop, ensure wire gauge used with LED
Strip Light is sufficient to keep under 3% voltage drop.
7. Do not exceed maximum run recommended for Strip
Light.
8. Diode LED Strip Light is designed to be cut at designated
cut points only. Cutting anywhere other than the cut
points will result in damage to the Strip Light.
9. Failure to follow safety warnings, and installation
instructions will void the warranty for this product.
HYDROLUME

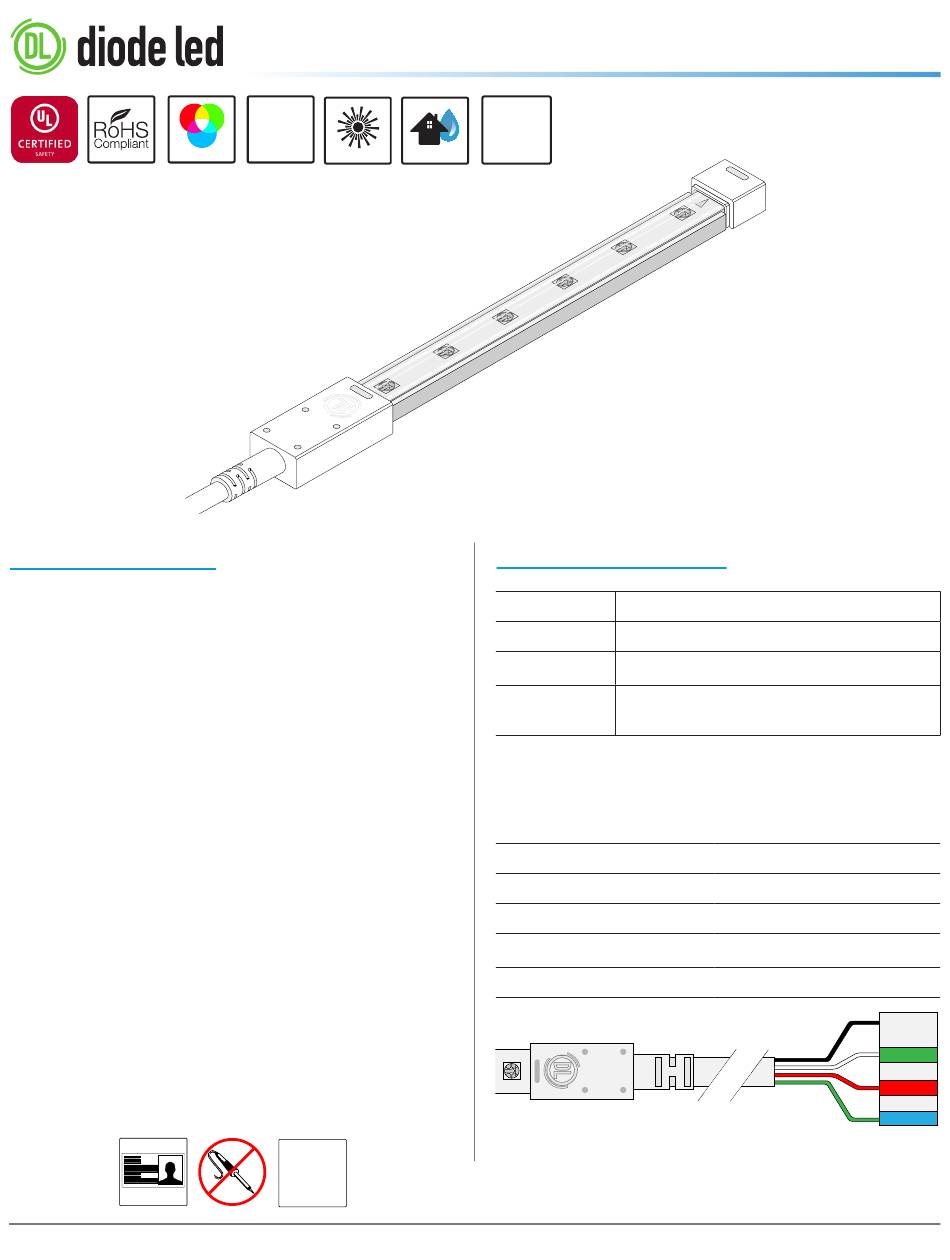

SLIM RGB LED STRIP LIGHT INSTALLATION GUIDE
®
HYDROLUME
®
24VDC
UV RESISTANT
POWER SUPPLY
CLASS
2
®
SLIM RGB LED Strip Light
IP68
DRY/WET LOCATION
QUICK SPECS / MODELS
Input
Power
Max Run
Ambient
Temp †
† Do not install product in environment outside listed
temperature.
1 OF 7
INSTALLATION GUIDE
24VDC Constant Voltage
3W/ft. (1.5W/cut point)
25.29 ft.
-4° - 140°F (-20° - 60°C)
Wiring Diagram
Black Wire = 24VDC +
White Wire = Green Light
Red Wire = Red Light
Green Wire = Blue Light
24VDC +
GREEN
RED
BLUE
IG050619-3.0
