DIODE LED AlphaTECH LED STRIP LIGHT Installation Manual page 7

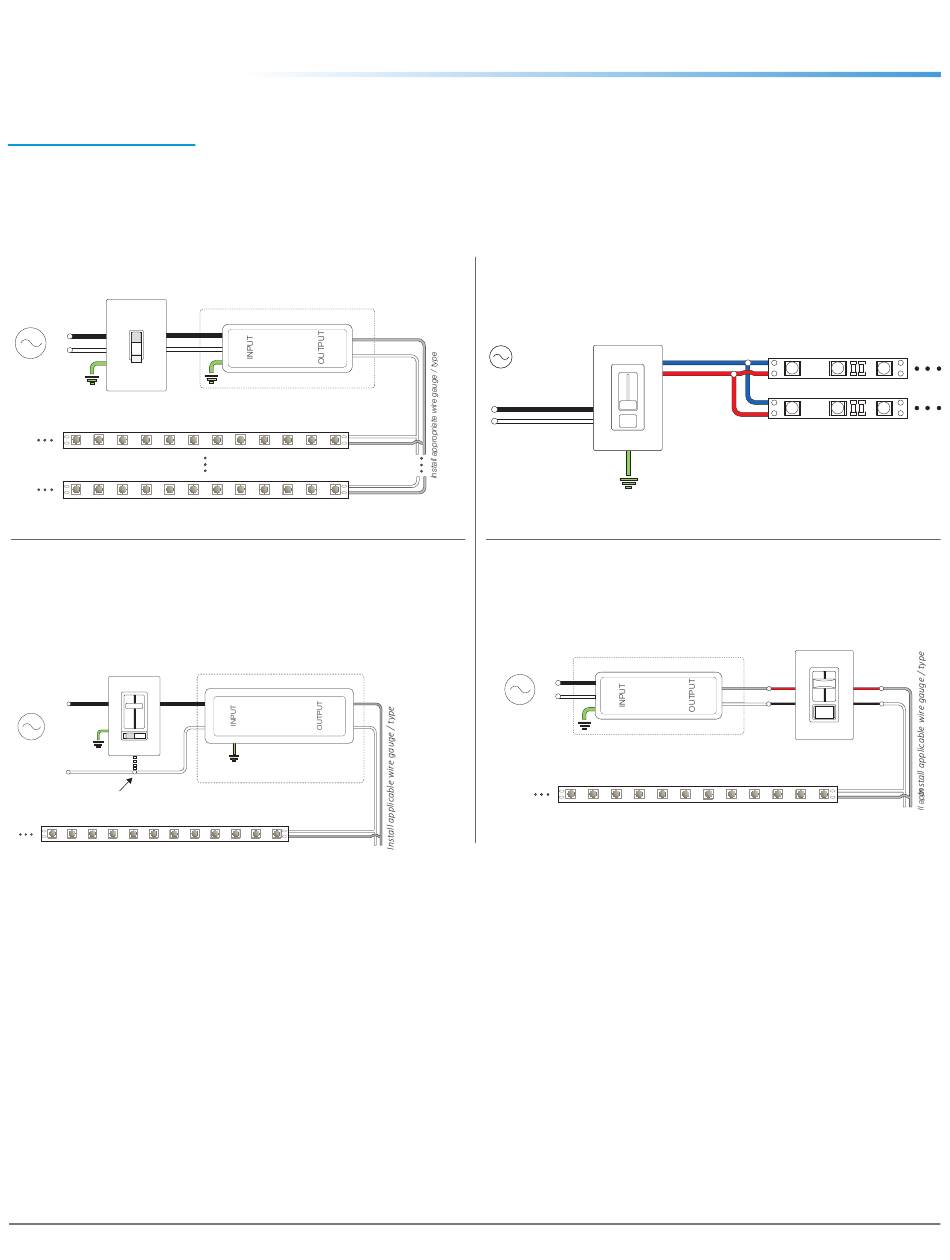

SYSTEM DIAGRAMS
The following diagrams are provided as example system designs. For information regarding larger systems or systems not
pictured below, please see our web page or contact technical support. Always review each component installation guide for
detailed and up-to-date wiring instructions. Install in accordance with national and local electrical codes.
Traditional ON/OFF Switch System
L
N
AC Power
50/60Hz
120VAC On/Off Switch
LED Tape Light / Fixture
OMNIDRIVE Electronic Dimmable Driver
®
System
Compatible Dimming Control
or On/Off Switch
5
L
AC Power
50/60Hz
N
N
Some dimmers may require an
additional neutral wire connection.
LED Tape Light / Fixture
1. Driver may not require a fault ground connection. Refer to driver specifications for additional information.
2. Install a compatible Class 2 constant voltage driver. Refer to each driver specification sheet for full power ratings & load deratings.
3. Install a Class 2 constant voltage driver compatible with a low voltage PWM controller/dimmer switch. Refer to each driver specification sheet for full power
ratings & load deratings.
4. Determine the number of low voltage outputs of the driver when installing multiple PWM controllers/dimmer switches. No more than one PWM controller/dimmer
switch can be attached to a single output of the driver.
5. Install a compatible dimming control or switch. See the 'Electronic Dimmable Driver / Dimmer Compatibility List' for compatible dimming controls. See the
dimming control manufacturer installation guide for complete wiring instructions.
6. Ensure to load the driver at least 60% of the labeled load for proper dimming performance (required for dimmable installations only).
7. Refer to driver or controller specifications for a compatible junction box.
8. See fixture specifications for maximum series run limits.
LED Strip Light INSTALLATION GUIDE
AlphaTECH
®
L
V+
N
V
−
G*
Class 2 Low Voltage Driver
2
7
Installed in Junction Box
V-
V+
V-
V+
8
OMNIDRIVE Dimmable Driver
® 6
L V+
V−
N
Class 2 Low Voltage Driver
2
7
Installed in Junction Box
GND*
V−
V+
V−
V+
8
AlphaTECH
®
SWITCHEX Dimmer/Driver System
®
SWITCHEX
(Dimmer + Driver)
120 VAC
~ 60Hz
L (BLK)
N (WHT)
Ground (GRN)
REIGN 24V Dimmer System
®
L
L
N N
G*
AC Power
50/60Hz
Class 2 Low Voltage Driver
Installed in Junction Box
7 OF 8
LED STRIP LIGHT
INSTALLATION GUIDE
LED ARRAY / FIXTURE
V− (BLUE)
−
+
V+ (RED)
−
+
V+ (Red)
V+
Input
V −
V- (Black)
3
REIGN 12-24V Dimmer
7
8
LED Tape Light / Fixture
Output
4
V-
V+
V-
V+
