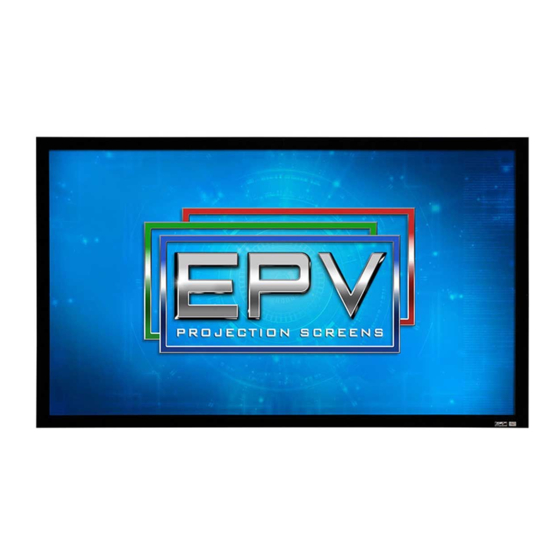

Fixed frame projection screen

Advertisement

Peregrine ISF Series
Thank you for choosing the Elite Prime Vision, Peregrine ISF fixed frame projection screen! Please read
through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product
life.
Care & Use Instructions: Dust, dirt and scratches on the projection surface will affect the picture
quality, please take note of the points below to prevent that from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the
screen material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents
or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to
clean it.

Hardware and Parts List

A. Frame Parts x 6 pcs
(4 top/bottom frame pcs + 2 side frame pcs)
B. ChromaWhite Screen Material x 1 pc
C. Center joint x 2 pcs
D. Elbow Joint x4 pcs
E. Wall bracket x 4 pcs
F. Wood screw x 8 pcs
G. Hollow wall anchorx 8 pcs
Note: Please make sure all parts are included in your package before proceeding to assemble your Elite
Prime Vision, Peregrine ISF fixed frame projection screen.
052715-JA
Fixed Frame Projection Screen
User's Guide
www.EPVscreens.com
H. M5x15 screw x 16 pcs
I. Center Support Bar x 1 - 2 pcs
(depending on model/size)
J. Support joiner x 2 - 4 pcs
(depending on model/size)
K. Fix Plates x 60 - 180 pcs
(depending on model/size)
L. Rubber mallet x 1 pc
M. Screw driver x 1 pc
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Peregrine ISF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for EPV Peregrine ISF Series

  • Page 1 Fixed Frame Projection Screen Peregrine ISF Series User’s Guide Thank you for choosing the Elite Prime Vision, Peregrine ISF fixed frame projection screen! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
  • Page 2 FRAME ASSEMBLY 1. Insert the center joint (c) connector to the horizontal frame piece with bevel connection and flat head, and then fasten it with two M5x15 screws (h). ½ Long Frame M5x15 Screw bevel connection Flat head 2. Insert the other horizontal frame piece to the center joint connector and then fasten it with twoM5x15 screws.
  • Page 3 Push Push Short frame Short frame (Fig.1.1) Screw M5×15Screws (Fig.1.2) ( fig.3) Join all four frame parts together following the steps shown below. (Fig.2) Note: When assembled, please push simultaneously the two ends of the long frames. Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles Push...
  • Page 4 Attaching the Screen Material to the Frame 1. Make sure the screen material and frame are both lying face down on a clean, dry, and non-abrasive surface. 2. Carefully unroll the material inside the frame. (Fig.3) Please note the material will be noticeably smaller than the frame, as the material must be stretched to create a sufficient amount of tension for perfect material flatness.
  • Page 5 Tip for attaching the last corner (D): 1. Position yourself left of location ①. ③ 2. Pull the material to the corner of the frame with your hand while your left Pull hand snaps in the fix plate on location ①(the third red dot). ④...
  • Page 6 Center Support BarInstallation Insert the support joiner into each end of the center support bar. support joiner Center support bar Insert the Center Support Bar into the upper top groove on the back of the frame (not the one where the fix plate inserts) with the bottom end near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in alignment with the groove (see Fig.
  • Page 7 Installation 1. Locate your desired installation location with a stud finder (recommended) and mark the drill-hole area of where the screen is to be installed. 2. Drill a hole with the proper bit size according to the wood screws included. 3.
