Polar Star® eFinity Series
Ceiling Ambient Light Rejecting EDGE FREE® Fixed Frame Screen
Product Description:

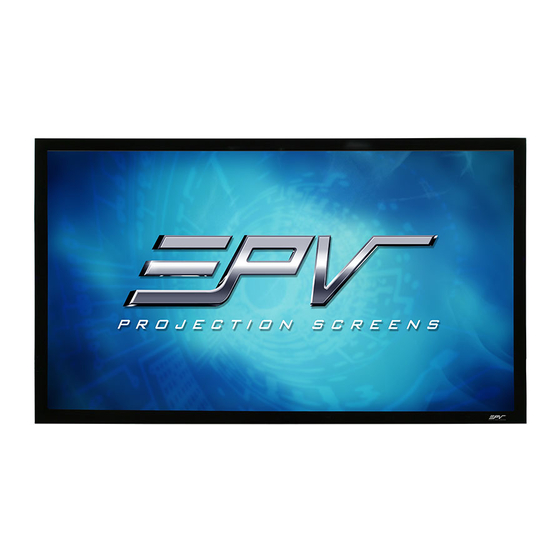

The Polar Star® eFinity Series is a fixed frame projection screen that uses Elite Prime Vision's (EPV)
EDGE FREE® technology. The EDGE FREE® design resembles a flat panel TV display. The eFinity
includes a micro-thin bezel trim to further enhance the frame appearance and absorb projector overshoot.
An LED kit is also included for mood lighting.
The screen material included is our ISF certified Polar Star®, which is a reference quality front projection
material precisely formulated for environments with minimal control over room lighting. It was designed
to enhance picture brightness, offer accurate color fidelity, and improve contrast levels. The Polar Star® is
best for family rooms, educational facilities, conference rooms or any applications in which incident light
is a factor.
In order for the Polar Star® to maintain its projection qualities and optimum performance, please refer to
the list below for proper maintenance and cleaning.
• Use a dry microfiber cloth to remove dust from the screen's surface.
• When cleaning, use a damp microfiber cloth with warm water to remove any marks.
• Never rub or apply pressure when cleaning the surface.
• Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
• In order to avoid damaging the screen, avoid touching it directly with your fingers,
pens/pencils or any other sharp or abrasive objects.
JA02132020
USER'S GUIDE
www.epvscreens.com
U-00153
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Polar Star eFinity Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EPV Polar Star eFinity Series

  • Page 1 USER’S GUIDE Product Description: The Polar Star® eFinity Series is a fixed frame projection screen that uses Elite Prime Vision’s (EPV) EDGE FREE® technology. The EDGE FREE® design resembles a flat panel TV display. The eFinity includes a micro-thin bezel trim to further enhance the frame appearance and absorb projector overshoot.
  • Page 2 1. Frame and Edge Trim Parts List 2 pcs 2 pcs Main Frame Parts Edge Trim Parts item item vertical frame Part A. Part D. ½ horizontal frame Part B. Part E. ½ horizontal frame Part C. Part F. 2. Hardware Parts List M4*4 D5*4 M4*4...
  • Page 3 ” ” ” ” ” ” ” ” Item Parts List Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position) Top wall brackets Bottom wall brackets M4x7 Screws Spring Spring Hook Φ5x50 Wall Screws Hollow Wall anchors M4x4 Screws...
  • Page 4 Step 5: Secure the elbow joints by fastening them with M4x7 screws ( , 4 at each corner. Screen Material Step 6: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to the other side as shown below.
  • Page 5 Step 8: Hook one end of the (small) spring and secure inside the groove of the frame, use the spring hook (h) to attach the (large) spring to the grommet hole located on the screen material’s outer edge in the following order. Large hook side Grommet attaches to screen...
  • Page 6 Center Support Bar Step 9: Insert the Center Support Bar (o) into the upper top groove on the back of the frame with the bottom end near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in alignment with the groove.
  • Page 7 Connect edge trim frames (e/f) together using the and secure with four of the Center Joints- M4(a) M4x4 Screws (m) as shown in Step 1. Repeat for other side. Once both top and bottom edge trim frames have been connected, attach the vertical (left/right) sides edge trim frames (d) using the and secure with four M4x4 screws (m) on all corners, Step 2.
  • Page 8 Wall Installation Step 13: Measure the overall length and height of the frame and drill holes for the top brackets. Line up the wall brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not installing into a structural wood stud, use a hollow wall anchor then screw in the M5x50 wood screws with a screwdriver.
