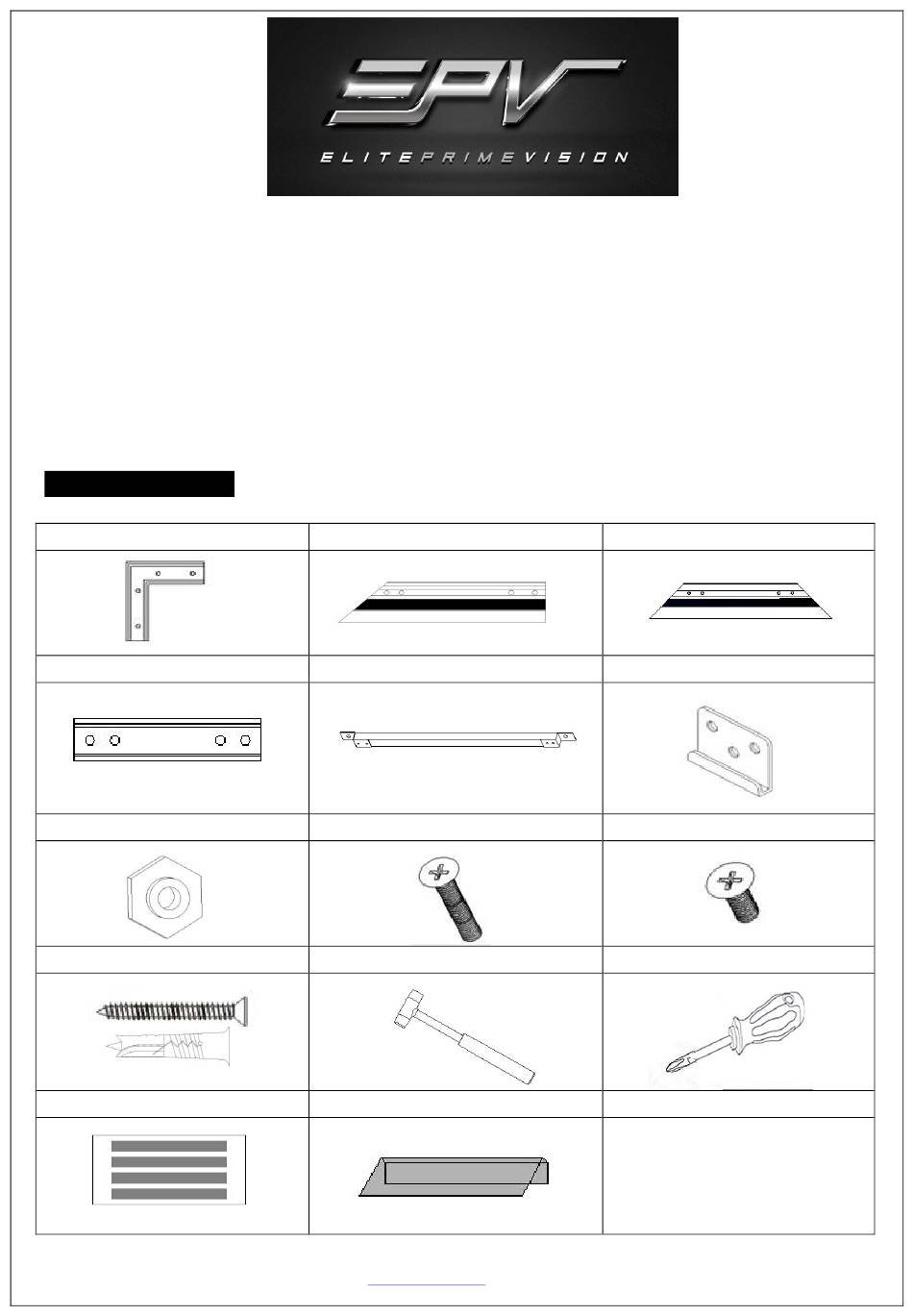

Efinity Series Edge Free™ Fixed Frame Projection Screen User’s Guide Applies to all available screen materials: CineGrey 5D Edge Free ™ , CineWhite Edge Free ™ , PowerGain 3D Edge Free ™ Hardware and Parts List Please make sure all parts listed below are included before installation. A.
Frame Assembly Note: Refer to the section “ Splicer Installation” if joining two or more frames. 1. Insert the center joint into one of the ½ horizontal frames and fasten it with the two M5x15 screws (H). 2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws. 3.
Page 3
6. Insert the two vertical short frames (C) into the elbow joint (A). Horizontal long frame (B) push push Vertical short frame (C) Vertical short frame (C) 7. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below. push push Horizontal Long frame (B)
8. Make sure all four corners are properly in place to form a perfect rectangle. Then fasten the four angles with the M5x15 Screws (H). Four corners join correctly to form a perfect rectangle. Use the included screwdriver (L) to fasten the Mx15 screws (H) into each corner by aligning the frame screw holes to the holes in the elbow joint (A).
Page 5
Attach the screen material to the corners as shown below. 3) Fold over second side 4) Repeat until all four 1) Stretch the screen 2) Fold over and material in the direction and snap onto frame sides are done in the snap onto frame of the arrowhead.
Page 6
5. Proceed to attach the rest of the material to the frame as described in the illustrations below. Grasp the middle of the screen material and attach it to the velcro strip on the frame Lay the Velcro end on the screen material over the Velcro end of the frame and keep it within the edge.
Screen Material Removal Follow the steps to properly remove the screen material from the frame. This procedure will ensure prolonging the life of the screen material. 1. Detach the velcro from the frame. 2. Gently pull back the material to unsnap the material from the buttons on the corners Pull back the screen material from the buttons to detach from the frame.
Notice to Installer: These instructions only apply if you have the CineGrey 5D or PowerGain 3D ALR material. Please use the following installation instructions to obtain superior optical performance from the Angular Reflective ALR (Ambient Light Rejecting) Screen. Projector Ceiling Installation: Make sure the projector (light in) is angled (ϴ1) to reflect (ϴ2) at the mirror-opposite angle (light out) to align with...
Page 9
Edge trim Installation The Aeon fixed screen is edge free, but you may install the trim strip to provide it with an elegant pencil thin bezel finish. Edge trim x 6 PCS Black tape x1pcs 1. Put the assembled frame on the flat and clean surface (Please face up), and then stick the black tape on the center of the top and bottom of the screen, please align the tape with the edge of the screen, as shown in the fig.
Page 10
Attention: the comparison of view size between the before and after installing the trim strip, take 100H&120H as examples as the following shown. 100H comparison: Before installing the trim strip After installing the trim strip 120H comparison Before installing the trim strip After installing the trim strip Splicer Installation (sold separately) If you want to joint two frameworks, please insert twelve M6 screws into each vertical short frame each before...
Page 11
M6 Screws 2. Align the position of the M6 screws with the splicer. splicer 3. Join the frames together with the splicer, and tighten the frame and splicer with M6X12 screws as shown in the figure below: For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com 030714-JA www.elitescreens.com...
