Product Description:

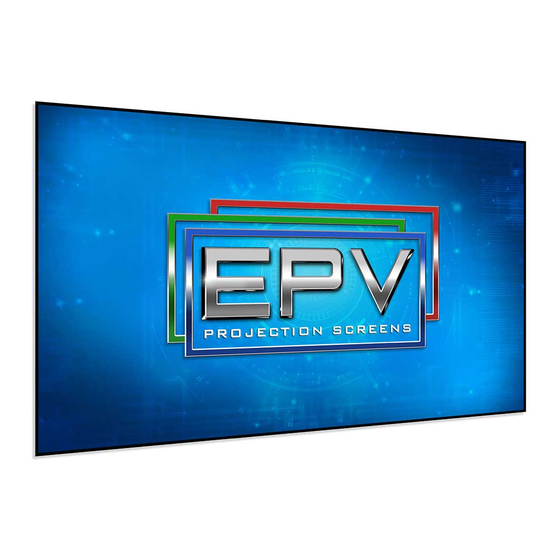

The Dark Star® UST 2 eFinity Series is a fixed frame projection screen that uses EPV's EDGE FREE®
technology. The EDGE FREE® design resembles a flat panel TV display. The Dark Star® UST 2 includes
a micro-thin bezel trim to further enhance the frame appearance and absorb projector overshoot.
The screen material included is our Dark Star® UST 2, which is an optical lens front projection material
precisely formulated for environments with minimal control over room lighting. It was designed to filter
and absorb overhead light while directing table-top mounted ultra-short throw projection. It best for family
rooms, educational facilities, conference rooms or any applications in which incident light is a factor.
Screen maintenance
Dust, dirt and scratches on the projection screen surface will affect the quality and performance of the projection
image. Follow the instructions below to properly maintain the screen.
1) The screen surface has a horizontal linear structure. DO NOT wipe the screen up and down or in a
circular motion. Wipe gently from left to right only.
2) Clean the dust on the screen surface with a soft brush or microfiber cloth. A rough/coarse towel or
cloth may damage the screen's surface.
3) Gently wipe the screen with a lightly moistened white lint free cloth with water or with a neutral
detergent (1mL/0.33 oz) mixed with water (1000 mL/33.8 oz).
Notes: The following precautions should always be followed to avoid damaging the material, which is
not covered under warranty.
• Don't touch the screen material to avoid leaving fingerprints.
• Use gloves when handling the material.
• Don't scratch the material, as it will leave permanent markings on the screen's surface.
• Don't point to the screen material with a fingertip or other sharp objects to prevent damage to the
material.
• Don't use acetone, benzene, alcohol and any other organic solvents to clean the screen material.
Using such chemicals will permanently damage the screen.
JA07092020
EDGE FREE® Ceiling Ambient Light Rejecting
www.epvscreens.com
Dark Star® UST 2 eFinity
Fixed Frame Screen
U-00169
USER'S GUIDE
1
Advertisement
Table of Contents
Related Manuals for EPV Dark Star UST 2 eFinity Series
Summary of Contents for EPV Dark Star UST 2 eFinity Series
- Page 1 USER’S GUIDE Product Description: The Dark Star® UST 2 eFinity Series is a fixed frame projection screen that uses EPV’s EDGE FREE® technology. The EDGE FREE® design resembles a flat panel TV display. The Dark Star® UST 2 includes a micro-thin bezel trim to further enhance the frame appearance and absorb projector overshoot.
- Page 2 1. Frame and Edge Trim Parts List 2 pcs 2 pcs Main Frame Parts Edge Trim Parts item item vertical frame Part A. Part D. ½ horizontal frame Part B. Part E. ½ horizontal frame Part C. Part F. 2. Hardware Parts List M4*4 D5*4 M4*4...
- Page 3 Item Parts List EF123H Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position) M4x7 Screws Spring Spring Hook wall brackets Φ5x50 Wall Screws Hollow Wall anchors M4x4 Screws Angle cover Center Support Bar White gloves Spring...
- Page 4 Step 5: Secure the elbow joints by fastening them with M4x7 screws ( , 4 at each corner. Center Support Bar Step 6: Insert the Center Support Bar (o) into the upper top groove on the back of the frame with the bottom end near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in alignment with the groove.
- Page 5 Step 8: Carefully and gently place the assembled frame on top of the screen material in the marked areas as shown below. Make sure to not allow the angle edge of the frame to come in direct contact with the screen material to avoid puncturing it.
- Page 6 To avoid ripples forming in the material it is imperative that all of the corners are properly wrapped around the edges as illustrated in the check mark diagrams. Note (after all springs have been attached): Correct material installation – Corners of the screen material are properly wrapped around the corner edges of the frame and material is evenly tensioned and flat, creating a nicely taut surface.
- Page 7 Step 12: Install the springs (h) in each middle area to further support the bezel trim edge frame. screen Notice to Installer: Material Tip: Proper Projector Placement for DarkStar® UST 2 The DarkStar® UST 2is exclusively for table-mounted ultra-short throw projectors. Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent layer deflecting light that is not aligned with its reflective angle.
- Page 8 Step 14: Position the fixed frame screen onto the top wall brackets as shown below and push down at the center of the top of the frame to secure. For Technical Support or an EPV Screens contact in your area, visit www.epvscreens.com www.epvscreens.com...
