R15L100-GCC3(HB) Quick Start Guide V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 91521110101B Please read these instructions carefully before using this product, and save this manual for future use.
FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
Page 4
European Union Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014 o IEC61000-4-6: 2014 o IEC61000-4-8: 2010 o IEC61000-4-11: 2004 EN55032: 2012/AC:2013 EN61000-3-2:2014 EN61000-3-3:2013 Low Voltage Directive (2014/35/EU) ...
Page 5
Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We...
Page 6
Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

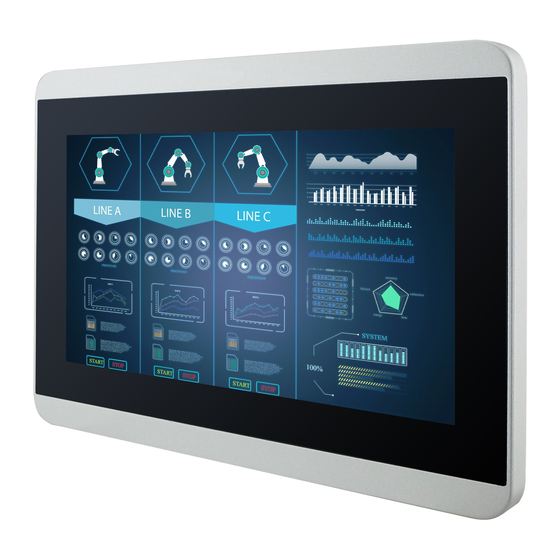

Introduction Congratulations on purchasing Winmate® GC65 Display. The elegantly designed, yet rugged, industrial grade G-WIN GC series is designed heavy duty applications. With rugged construction, ultimate computing power, GC65 series are guaranteed to meet "heavy duty" needs. This series feature high...
Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide USB Cable for Display (Hardcopy)
Product Overview W07L100-GCM1(HB) Unit: mm № № Description Description ① ④ 12V DC in Touch (USB) ② ⑤ HDMI 1 Watt Speaker ③ ⑥ OSD Control Panel - 10 -...
Page 11
W10L100-GCH1(HB) Unit: mm № № Description Description 12V DC in ① ④ Touch (USB) (Optional 9-36V DC) ② ⑤ HDMI 1 Watt Speaker ③ ⑥ OSD Control Panel - 11 -...
Page 12
R10L100-GCT2(HB) Unit: mm № № Description Description 12V DC in ① ④ Touch (USB) (Optional 9-36V DC) ② ⑤ HDMI OSD Control Panel ③ - 12 -...
Page 13
R12L100-GCM2(HB) Unit: mm № № Description Description 12V DC in ① ④ Touch (USB) (Optional 9-36V DC) ② ⑤ HDMI 2 Watt Speaker ③ ⑥ OSD Control Panel - 13 -...
Page 14
R15L100-GCC3(HB) Unit: mm № Description № Description 12V DC in ① ④ Touch (USB) (Optional 9-36V DC) ② HDMI ⑤ 2 Watt Speaker ③ VGA ⑥ OSD Control Panel - 14 -...
Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Display. Physical Buttons Icon Button Description DOWN/ VOLUME Press to lower down the volume DOWN UP/ VOLUME Press to increase the volume ESC/ AUTO Press to exit the menu Press to confirm the action or to...
Page 16
LED Indicators LED Type Status Description Power is on Power is off Storage activity Blinking (Data is being read or written) System is idle - 16 -...
Getting Started Turning On Your Device Follow the following steps to turn on your device: 1. Connect the Display to the AC adapter. 2. Connect the AC adapter to the power cord. 3. Plug in the power cord to a working AC wall outlet. Press power button on the OSD control panel.
OSD Menu Navigation AUTO Scan BRIGHTNESS BRICONTRAST CHANNEL ANALOG CONTRAST HDMI Only support VGA mode POSITION RECALL H position V position Only support VGA mode Auto Adjustment IMAGE OSD EXIT Clock Phase White Balance USER 9300K COLOR 6500K RIGHTNESS GAMMA0 GAMMA GAMMA1 GAMMA2...
Turning Off Your Device To turn off the device: 1. Press the power button located on the OSD control panel. 2. Disconnect the power cord from the display to completely power off the device. - 19 -...
Installation Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.
Connecting to Other Devices This section explains how to connect external interfaces to the Display. Power Connector Display has DC power source input is 2.5mm power jack connector. Pin № Signal Name +12V HDMI Connector GC65 Display has HDMI 1.4a connector. Pin №...
Page 22
VGA Connector GC65 Display has standard 15pin D-sub connector. Pin № Signal Name Pin № Signal Name GREEN BLUE AGND AGND AGND VGA_DE DDCSDA H Sync V Sync DDCSCL - 22 -...
GC65 Display comes with different mounting options suitable for most of the industrial and commercial applications. RAM Mounting Notice that only 7” model support RAM Mounting to fit any vehicle application. *The picture is for demonstration purposes only. RAM Mounting accessories are not supplied by Winmate. - 23 -...
100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 24 -...
Panel Mounting Panel Mount mounting solutions is suitable for many applications where Display should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, mm 7” 174.4 x 130.4 M4x4 10.1”...
Troubleshooting If your monitor fails to operate correctly, check the following chart for possible solution before calling for repairs: Condition Check Point • Check if the signal cable is firmly seated in the socket. The picture • Check if the Power is ON at the computer does not appear •...
Specifications Display Specifications Model Name W07L100- W10L100- R10L100- R12L100- R15L100- GCM1(HB) GCH1(HB) GCT2(HB) GCM2(HB) GCC3(HB) Display 10.1” TFT 7" TFT 10.4” TFT 12.1” TFT 15” TFT Size/Type (Wide) (Wide) 1024 x 768 1024 x 768 Resolution 1024 x 600 1024 x 600 1024 x 768 350 nits Brightness...
Page 28
Mechanical Specifications Panel Mount, VESA Mounting, RAM Mount* Mounting *Only available for 7” model Environment Considerations Operating -10°C to +55°C Temperature Operating 10% to 95% (non-condensing) Humidity IP Rating Front IP65 Shock Operating: 30g for 18 ms, 300 Vibration Operating: 1.60/1.96/2.18 g rms for XYZ/ 5-500Hz Standards and Certification Safety CE, FCC...
Appendix Appendix A: Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. ...
1920x1080 800x600 1920x1200 1024x768 1024x768 1024x768 1280x1024 1280x1024 1366x768 1600x1200 1680x1050 1920x1200 1920x1080 For information about available input signals, please refer to R-Series AD Board Manual included in the package or visit Winmate Download Center at http://www.winmate.com/DownCenter/DownLoadCenterIndex.asp - 30 -...
