Section 2: Installation

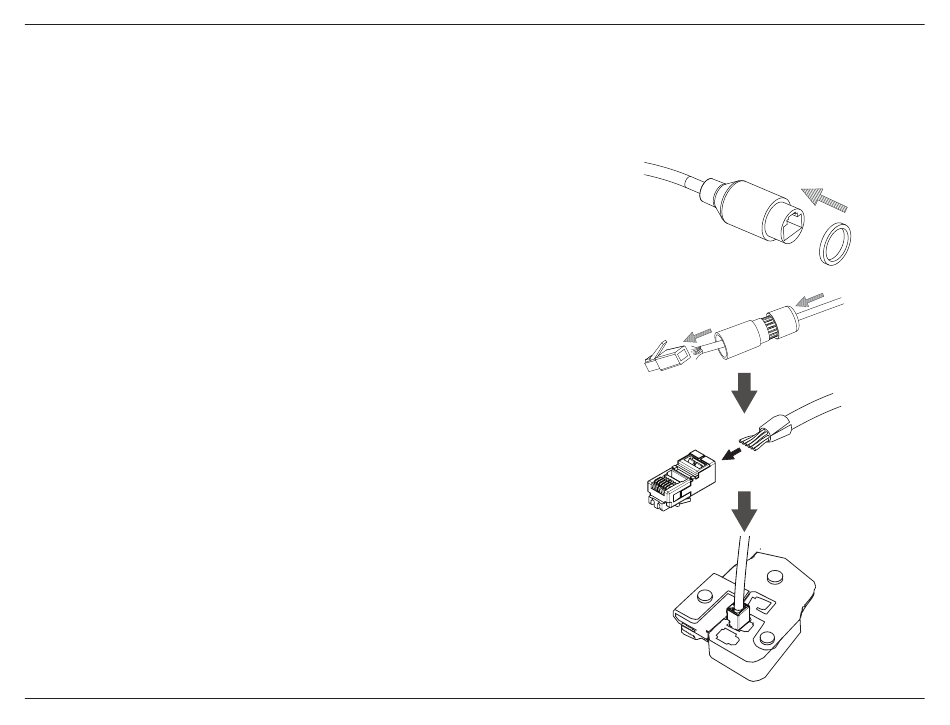

Waterproofing Your Installation
To waterproof your camera installation, follow the instructions below. Round Ethernet cable, a crimping tool, and RJ-45 plugs are required for this
procedure.
Step 1
Place the washer around the base of the Ethernet connector as shown.
Step 2
Thread bare Ethernet cable through the waterproof connector as shown, then crimp an RJ-45
plug onto the cable.
Step 3
Crimp an RJ-45 connector onto the end of the cable.
Step 4
Connect the other end of the Ethernet cable to the camera's Ethernet port.
D-Link DCS-4605EV User Manual
17
