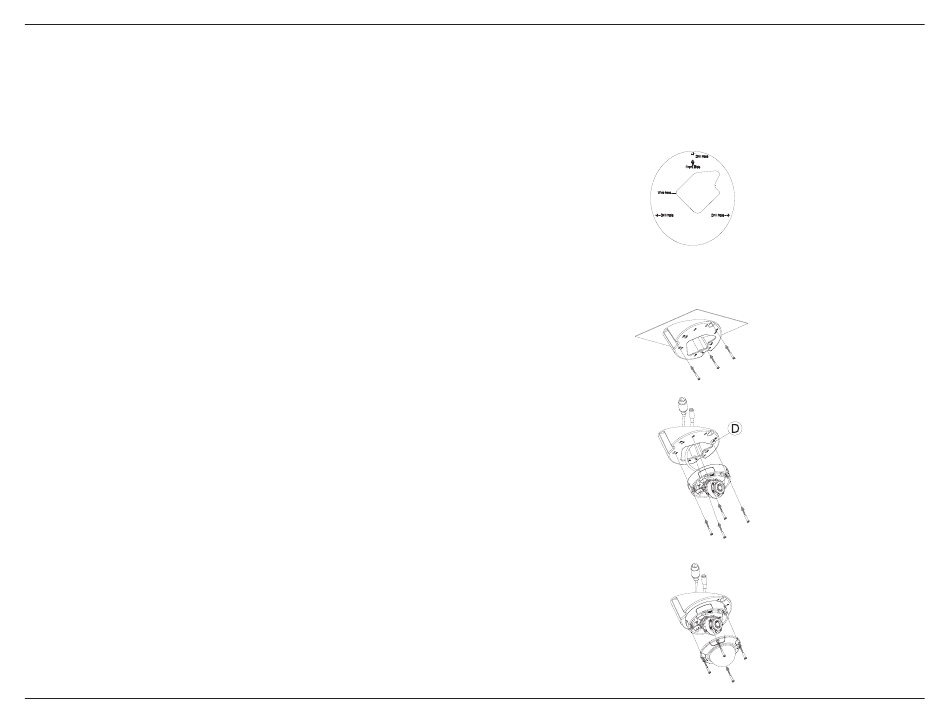

To mount the camera with the DCS-37-3 mount, follow the instructions below.

Step 1

Place the DCS-37-3 mounting sticker in the desired location, then use a 6 mm drill bit to drill

the required holes 25 mm deep and insert the wall anchors into the holes. If you plan to pass

cables through the ceiling, you will also need to drill a hole for the cable channel.

Note: The camera in the corresponding graphics may be different from your product, but the

procedure is the same.

Step 2

Use the provided screws to mount the DCS-37-3 to the ceiling using the inner mounting holes.

Step 3

Remove the cover from the camera.

Guide the camera connectors through the bottom cable channel on the DCS-37-3. Use the

provided screws to mount the camera to the DCS-37-3 using the set of mounting holes marked

Step 4

Remove the cover and adjust the angle and rotation of the camera as desired, then put the

cover back in place. Screw the camera cover back in place.

Make sure the rubber stopper is in the side cable channel to seal it.
