D-Link DCS-4633EV User Manual

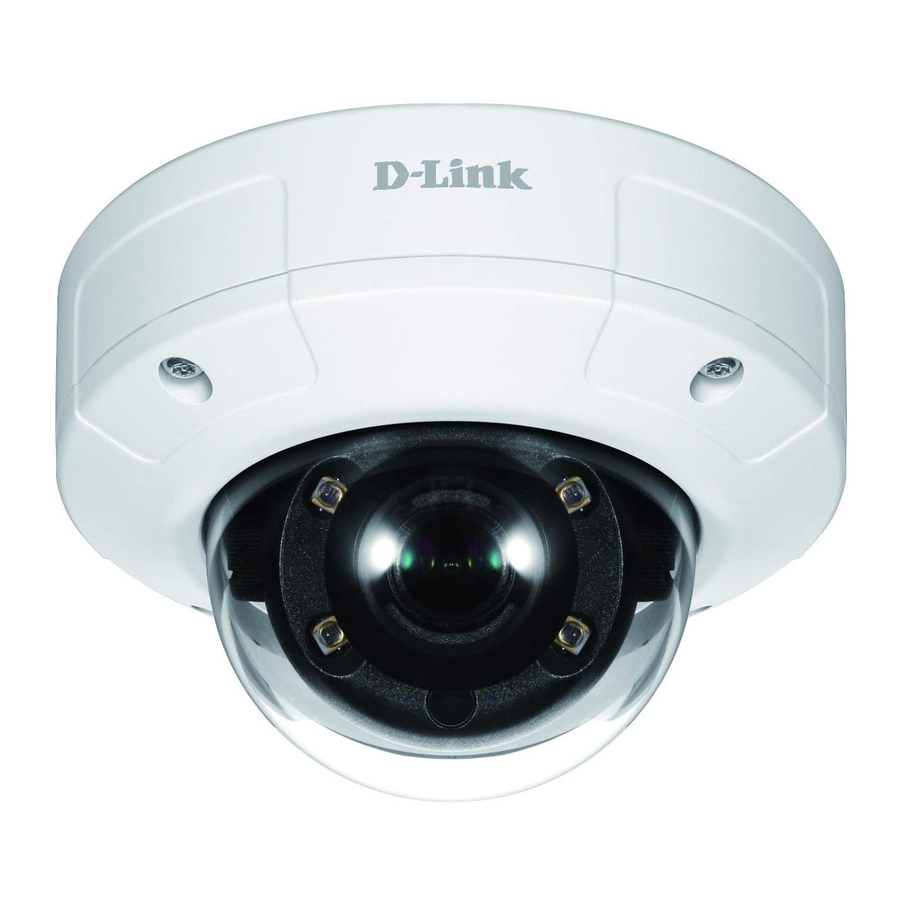

Vigilance 3 megapixel h.265 outdoor dome camera
Hide thumbs

Advertisement

Quick Links

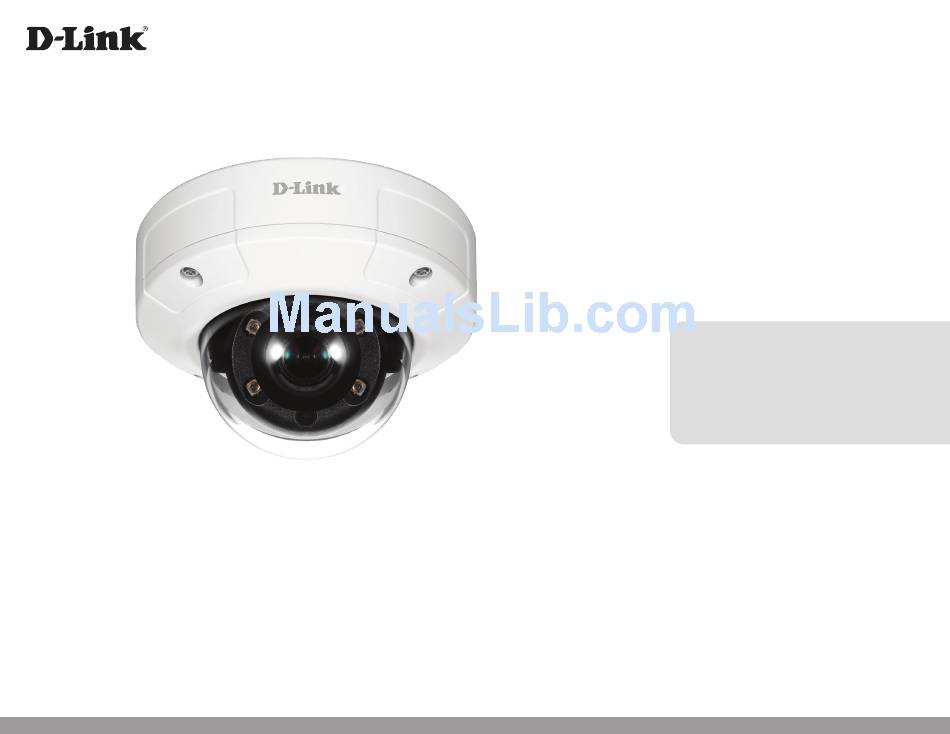

Version 1.00 | 12/1/2017

User Manual

Vigilance 3 Megapixel H.265 Outdoor Dome Camera
DCS-4633EV

Advertisement

loading

  Also See for D-Link DCS-4633EV

  Related Manuals for D-Link DCS-4633EV

  Summary of Contents for D-Link DCS-4633EV

  • Page 1: User Manual

    Version 1.00 | 12/1/2017 User Manual Vigilance 3 Megapixel H.265 Outdoor Dome Camera DCS-4633EV...
  • Page 2: Manual Revisions

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
  • Page 3: Table Of Contents

    Configuration ............23 Using the Configuration Interface ........23 Live Video ................25 Setup Wizard ................27 Network Setup Wizard ........28 Motion Detection Setup Wizard ........30 Settings ..................33 Network Settings ............33 Camera Settings ..............39 Recording Management ..........48 Advanced Setup ..............60 D-Link DCS-4633EV User Manual...
  • Page 4: Product Overview

    Section 1: Product Overview Product Overview Package Contents DCS-4633EV Vigilance 3 Megapixel H.265 Outdoor Dome Camera Cable Waterproofing Connector Mounting Kit CD-ROM with User Manual and software Quick Installation Guide If any of the above items are missing, please contact your reseller.
  • Page 5: Introduction

    The DCS-4633EV can be accessed remotely, controlled and configured from any computer over your local network or through the Internet via a web browser. The simple installation and intuitive web-based interface offer easy configuration across the full range of its advanced feature set, including granular control over multiple video streams with different configurations and multicast video streams that help you manage your video bandwidth.
  • Page 6: Features

    DCS-4633EV easy to integrate into your existing network environment. Advanced Event Management The DCS-4633EV can be set up to send e-mail notifications with snapshots when an event occurs, such as when motion is detected. Events can be triggered from several sources, such as motion detection and time-based events.
  • Page 7: Hardware Overview

    Protects the camera lens assembly from the environment. RJ-45 connector for Ethernet which can also be used to power the camera using Power over Ethernet Port Ethernet (PoE). Power Port Connects to an optional 12 V / 1.5 A power adapter (not included). D-Link DCS-4633EV User Manual...
  • Page 8 IR LEDs Provide illumination for low-light environments. Reset Button Press and hold this button down for 10 seconds to reset the camera to factory default settings. Camera Lens Camera lens to record video of the surrounding area. D-Link DCS-4633EV User Manual...
  • Page 9: Installation

    If you are running the camera cables through the wall, drill a hole in the center and pull the cables through the hole. Step 3 Use the included wrench to loosen the 4 screws on the top of the camera, then lift the camera cover off. D-Link DCS-4633EV User Manual...
  • Page 10 Step 5 Connect the power and Ethernet cables, or just the Ethernet cable if you are using a PoE connection. D-Link DCS-4633EV User Manual...
  • Page 11 Note: The camera has a limited range of motion; if it stops when you are adjusting it, do not attempt to rotate or tilt the camera any further in that direction. Step 7 Use the screws provided to mount the camera to the ceiling. Step 8 Re-attach the camera cover. D-Link DCS-4633EV User Manual...
  • Page 12: Using The Dcs-37-1 Mount (Optional)

    Use the provided screws to mount the DCS-37-1 to the wall. Step 3 Guide the camera connectors through the back or bottom cable channel on the DCS-37-1. Then screw the mounting plate to the bracket using the set of mounting holes marked B. D-Link DCS-4633EV User Manual...
  • Page 13 Step 5 Attach the camera cover. If you are passing the camera cables through the wall, place the rubber stopper into the bottom cable channel on the mount to seal it. D-Link DCS-4633EV User Manual...
  • Page 14: Using The Dcs-37-2 Mount (Optional)

    Step 3 Guide the camera connectors through the back or side cable channel on the DCS-37-2. Use the provided screws to mount the camera to the DCS-37-2 using the set of mounting holes marked B. D-Link DCS-4633EV User Manual...
  • Page 15 Step 5 Attach the camera cover. If you are passing the camera cables through the ceiling, place the rubber stopper into the side cable channel to seal it. D-Link DCS-4633EV User Manual...
  • Page 16: Using The Dcs-37-3 Mount (Optional)

    Remove the cover and adjust the angle and rotation of the camera as desired, then put the cover back in place. Screw the camera cover back in place. Make sure the rubber stopper is in the side cable channel to seal it. D-Link DCS-4633EV User Manual...
  • Page 17: Waterproofing Your Installation

    Thread bare Ethernet cable through the waterproof connector as shown, then crimp an RJ-45 plug onto the cable. Step 3 Crimp an RJ-45 connector onto the end of the cable. Step 4 Connect the other end of the Ethernet cable to the camera's Ethernet port. D-Link DCS-4633EV User Manual...
  • Page 18 Screw the back part of the waterproof connector clockwise until there is a tight seal around the Ethernet cable. If you are using PoE to power your camera, use the power connector cap to seal the power connector. D-Link DCS-4633EV User Manual...
  • Page 19 Section 2: Installation If you are using a power adapter (not included) to power your camera, wind waterproof tape around the connection in an overlapping manner to cover it. D-Link DCS-4633EV User Manual...
  • Page 20: Software Installation

    Insert the DCS-4633EV CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click the Start button and type D:\autorun.exe (where D: represents the drive letter of your CD-ROM drive) and press Enter.
  • Page 21 Admin ID is admin with the password left blank. Click the checkboxes if you wish to change the admin ID and password for the camera, and enter the new ID and password you wish to use. Click Next to continue. D-Link DCS-4633EV User Manual...
  • Page 22 Select Static IP if you want to manually enter the IP settings for the camera. Click Next to continue. Step 6 Take a moment to confirm your settings and click Restart. D-Link DCS-4633EV User Manual...
  • Page 23: Configuration

    After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your DCS-4633EV. At the end of the wizard, click Link, or enter the IP address of your camera into a web browser, such as Firefox.
  • Page 24 After entering a password, click Save. Under Password, enter the same password configured during setup and click Login to continue. Step 4 This section displays your camera’s live video. You can select your video profile and view or operate the camera. D-Link DCS-4633EV User Manual...
  • Page 25: Live Video

    This will start recording a video clip to your PC using the storage Record a Video folder you have selected. Click it again to stop recording. If you Clip close the browser window, the recording will stop. D-Link DCS-4633EV User Manual...
  • Page 26 Alarm received. Record Status This will turn red when the camera is recording. Click this to open a window that describes the Live Video Help controls. Logout Click this to log out of the web interface. D-Link DCS-4633EV User Manual...
  • Page 27: Setup Wizard

    Click on this button to start the Network Setup Wizard. Refer to"Network Wizard: Setup Wizard" on page 28. Motion Click on this button to start the Motion Detection Setup Wizard. Refer to Detection "Motion Detection Setup Wizard" on page 30. Setup Wizard: D-Link DCS-4633EV User Manual...
  • Page 28: Network Setup Wizard

    Enter the correct configuration information and click Next to continue. If you are using PPPoE, select PPPoE and enter your user name and password. • Click Next to continue. D-Link DCS-4633EV User Manual...
  • Page 29 Set the correct time to ensure that all events will be triggered as scheduled. Click Next to continue. Confirm the settings are correct and click Finish to save them. The settings will be saved to the DCS-4633EV and the camera will restart. D-Link DCS-4633EV User Manual...
  • Page 30: Motion Detection Setup Wizard

    Step 2 This step allows you to enable motion detection based on a customized schedule. Specify the day and hours. You may also choose to always record whenever motion is detected. Click Next to continue. D-Link DCS-4633EV User Manual...
  • Page 31 Step 3 This step allows you to specify where to send the snapshot/video clip/system log when motion is detected. Select E-mail, FTP, Network Storage, or SD Card, and enter the relevant information. Click Next to continue. D-Link DCS-4633EV User Manual...
  • Page 32 Section 3: Configuration Step 4 You have completed the Motion Detection Wizard. Please verify your settings and click Finish to save them. Please wait a few moments while the camera saves your settings and restarts. D-Link DCS-4633EV User Manual...
  • Page 33: Settings

    Invalid gateway settings may cause the failure of transmissions to a different subnet. Primary DNS: Enter the primary domain name server for translating domain names to IP addresses. Secondary Enter the secondary domain name server for translating domain names to DNS: IP addresses. D-Link DCS-4633EV User Manual...
  • Page 34 User Name / Enter the username and password for your PPPoE account. Re-enter your Password: password in the Confirm Password field. You may obtain this information from your ISP. PPPoE Status: This shows your current PPPoE connection status. D-Link DCS-4633EV User Manual...
  • Page 35 Use this section to configure the HTTP and HTTPS access settings for your camera. After making any changes, click the Save button to save your changes. HTTP Stream Enable or disable stream authentication. Authentication: HTTP Port: The default port number is 80. Access Name The default name is video#.mjpg, where # is the number of the stream. for Stream 1~3: D-Link DCS-4633EV User Manual...
  • Page 36 ƒ Create a certificate request and install Status: Displays the status of the certificate. Note: The certificate cannot be removed while the HTTPS is still enabled. To remove the certificate, you must first uncheck HTTPS secure connection. D-Link DCS-4633EV User Manual...
  • Page 37 Multicast Multicast for The DCS-4633EV allows you to multicast each of the available streams via Stream 1/2: a group address and specify the TTL value for each stream. Enter the port and TTL settings you wish to use if you do not want to use the defaults.
  • Page 38 Use this section to enable Bonjour, which allows your camera to be accessed more easily on your network. After making any changes, click the Save button to save your changes. Bonjour: Enable this to enable Bonjour support. Bonjour Name: Enter a name to identify this camera on Bonjour. D-Link DCS-4633EV User Manual...
  • Page 39: Camera Settings

    Create a unique name for your camera that will be added to the file name Name: prefix when creating a snapshot or a video clip. Indicator LED: You may specify whether or not to illuminate the status LED on the camera. D-Link DCS-4633EV User Manual...
  • Page 40: Image Settings

    This setting controls the amount of noise reduction that will be applied to the picture. 3D Denoise: This setting controls the amount of 3D denoise that will be applied to the picture. 3D denoise reduces the amount of image noise when viewing a low- light environment. D-Link DCS-4633EV User Manual...
  • Page 41 Specify a value from 0 to 10 to specify how much WDR adjustment to apply to the image, or select None. Reset: Click this button to reset the image to factory default settings. D-Link DCS-4633EV User Manual...
  • Page 42 Adjust this setting to alter the color intensity/strength. Saturation: This setting controls the amount of coloration, from grayscale to fully saturated. Sharpness: Specify a value from 0 to 100 to specify how much sharpening to apply to the image. D-Link DCS-4633EV User Manual...
  • Page 43 Set Day/Night mode using the schedule set in the drop-down boxes. The Mode: camera will enter Day mode at the starting time and return to Night mode at the ending time. Activate the Disable IR LED to set Day mode for the set times. D-Link DCS-4633EV User Manual...
  • Page 44: Osd Settings

    You can delete the window by clicking the Delete button. The Privacy Mask setting allows you to define up to 3 rectangular areas on the camera's image to be blocked/excluded from recordings and snapshots. D-Link DCS-4633EV User Manual...
  • Page 45: Video Stream

    ƒ CBR - Constant Bit Rate will use a fixed bit rate that you set. ƒ CVBR - Constrained Variable Bit Rate works like VBR, but lets you set a maximum bit rate. D-Link DCS-4633EV User Manual...
  • Page 46 H.264 and H.265, as MJPEG uses the full image for every frame. A general rule of thumb is the lower that number, the better the image but the higher the bandwidth and storage requirements. D-Link DCS-4633EV User Manual...
  • Page 47: Preset Point

    You can also set how many seconds the camera will stay at each position by setting the Dwell Time for each preset. D-Link DCS-4633EV User Manual...
  • Page 48: Recording Management

    Event Management The DCS-4633EV has a comprehensive Event system that lets you configure the camera to perform certain actions when an event occurs. For example, when motion is detected, you can have snapshots sent to an e-mail address. You can also configure the camera to take regular video recordings according to a schedule you define.
  • Page 49 2. To delete the selected item from the server, media, event, or recording drop-down menus, click the Delete button next to it. 3. Click on the name of an item to edit it. D-Link DCS-4633EV User Manual...
  • Page 50 If you want to use a network storage device for your server, select this and Storage: enter its settings here. SD Card: If you want to use an inserted microSD card for your server, select this. D-Link DCS-4633EV User Manual...
  • Page 51 9 images are generated after a trigger is activated. 1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic. The moment the trigger is activated. D-Link DCS-4633EV User Manual...
  • Page 52 This is the prefix that will be added to the filename of saved video clips. Prefix: Camera log: Select this option to set the media type to system logs. This will save the event to the camera system log, but will not record any snapshots or video. D-Link DCS-4633EV User Manual...
  • Page 53 Selecting this will trigger an event when the camera's connection to the network is lost. Tamper Selecting this will trigger an event when tampering has been detected. For Detection: more details, refer to "Tamper" on page 59. D-Link DCS-4633EV User Manual...
  • Page 54 Select the actions you want the camera to take when the event happens. Select the Server to use, then choose the Media you want to save to it. Please note that you need to set up your Server and Media entries first. D-Link DCS-4633EV User Manual...
  • Page 55 If this is selected, files will be split based on the maximum length you specify. Each File for Recording: File Name The prefix name will be added to the beginning of the file name of the Prefix: recorded file(s). D-Link DCS-4633EV User Manual...
  • Page 56 Click this button to automatically format the microSD card and create the Video and Picture folders. Deleting Files To delete files and folders, click on the checkbox next to the files or folders and Folders: you want to delete, then click the OK button. D-Link DCS-4633EV User Manual...
  • Page 57 Low sensitivities may be useful when monitoring an area that has flickering lights or a window to the outside in view. High sensitivities may be useful when monitoring an area that rarely changes, such as a storeroom or warehouse. D-Link DCS-4633EV User Manual...
  • Page 58 Save to save your changes. To modify an existing motion detection box, click on the button next to the window's number, then move and resize it as you wish. You can delete the window by clicking the Delete button. D-Link DCS-4633EV User Manual...
  • Page 59 Enable this to use tamper detection. Detection: Trigger Enter the tamper trigger duration in seconds. The tamper alarm will be Duration: triggered only when there is a substantial change in the camera's view for longer than the trigger duration specified. D-Link DCS-4633EV User Manual...
  • Page 60: Advanced Setup

    UPnP capable network. Forwarding: Forwarding If UPnP Port Forwarding is enabled, you can set which port to use for Port: forwarding. Forwarding If UPnP Port Forwarding is enabled, this will show the UPnP Port Forwarding Status: status. D-Link DCS-4633EV User Manual...
  • Page 61 Timeout: You can set up how often the camera notifies the DDNS server of its current global IP address by entering a whole number in hours. Status: This shows the current status of your DDNS updates. D-Link DCS-4633EV User Manual...
  • Page 62 Enter the authentication password used for your read/write SNMP server. Password: Encryption Enter the encryption password used for your read/write SNMP server. Password: Read Only Enter a name for the read-only community of your read-only SNMP server. Security Name D-Link DCS-4633EV User Manual...
  • Page 63 Enter a trap community string used by your SNMP server. Community: Trap Address 2: Enter a second IP address of the SNMP server/management station where trap messages will be sent. Trap Enter a second trap community string used by your SNMP server. Community 2: D-Link DCS-4633EV User Manual...
  • Page 64 Enter the identity issued by your certificate authority. Password: Enter the password issued by your certificate authority. Status: This will show information about the current CA certificate that was uploaded to the camera. To remove the CA certificate, click the Delete button. D-Link DCS-4633EV User Manual...
  • Page 65 QoS, the router's settings will override the QoS settings of the camera. To use CoS, enable it and set the priority for your Live Video, Live Audio, Event/Alarm, and Management camera traffic. D-Link DCS-4633EV User Manual...
  • Page 66: Access List

    Section 3: Configuration Access List Here you can define which IP addresses are allowed to view your DCS-4633EV. You can set up to 7 IP address ranges for both the allow and deny lists. Allow List: The section lets you define what IP addresses have access rights to the camera.
  • Page 67: Camera Configuration

    You may save your current camera configuration as a file on your computer. Hard Drive: Load From Locate a pre-saved configuration by clicking Browse and then restore the Local Hard pre-defined settings to your camera by clicking Upload. Drive: D-Link DCS-4633EV User Manual...
  • Page 68: Factory Reset

    Enabling this option will allow you to keep your network settings when Setting: resetting your camera to the factory defaults. Restore You may reset your camera and restore the factory settings by clicking to Factory Restore. Default: D-Link DCS-4633EV User Manual...
  • Page 69: Reboot Device

    This will restart your camera. Schedule If you want your camera to reboot on a regular schedule, enable this Reboot: option, then select the days and time you want the camera to reboot on and click the Save button. D-Link DCS-4633EV User Manual...
  • Page 70: Firmware Update

    Section 3: Configuration Firmware Update Here you can update the camera's firmware. The current version of the firmware is shown next to the D-Link logo at the top of the page. File Path: To update the firmware, select a firmware file to use from your hard drive by clicking Browse..., then click the Upload button.
  • Page 71: Camera Options

    Section 3: Configuration Camera Options Camera Info This page displays detailed information about your camera, the services running on your camera, and active video streams. D-Link DCS-4633EV User Manual...
  • Page 72: Time

    Enter the offset that should be used when Daylight Saving is being used. Start Time: Set the date and time that Daylight Saving should start. End Time: Set the date and time that Daylight Saving should end. D-Link DCS-4633EV User Manual...
  • Page 73 This section lets you set your camera's date and time automatically by using an NTP server. NTP Server: Enable this option to set your camera's time using an NTP server, then select an NTP server to use from the drop-down box. D-Link DCS-4633EV User Manual...
  • Page 74 This section lets you manually set your camera's date and time. If you have NTP Server enabled in Auto Time Config, you will need to disable it before setting the date and time manually. Set Date and Enable this option to set your camera's time using an NTP server, then Time Manually: select an NTP server to use from the drop-down box. D-Link DCS-4633EV User Manual...
  • Page 75: Administration Settings

    Section 3: Configuration Administration Settings Admin Password Here, you may modify the administrator’s password for your camera. New Password Set a new password for the administrator’s account. / Retype Password: D-Link DCS-4633EV User Manual...
  • Page 76: User Accounts

    Here, you may add user accounts for accessing the camera. User accounts are allowed to access the Live Video page, but cannot access any of the camera's configuration pages. User Name: Enter a user name for the user you wish to create. New Password Enter a password for the user you wish to create. / Retype Password: D-Link DCS-4633EV User Manual...
  • Page 77: User List

    If you want to change a user's password, select a user from the drop-down box, enter the new password, then click the Modify button. If you want to remove a user from the user list, select a user from the drop- down box, then click the Delete button. D-Link DCS-4633EV User Manual...
  • Page 78: Camera Log

    Section 3: Configuration Camera Log This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete the saved log information. D-Link DCS-4633EV User Manual...
  • Page 79: Technical Specifications

    • CoS • DNS client • QoS/DSCP • DDNS client (D-Link) • SNMP • SMTP client • ONVIF compliant • FTP client Security • Administrator and user group protection • HTTP and RTSP authentication • Password authentication D-Link DCS-4633EV User Manual...
  • Page 80 • Operating: -30 to 50 °C (-22 to 124 °F) • Storage: -20 to 70 °C (-4 to 158 °F) Humidity • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing Certifications • CE • FCC • CE LVD • C-Tick D-Link DCS-4633EV User Manual...
  • Page 81 Appendix A: Technical Specifications Dimensions D-Link DCS-4633EV User Manual...
  • Page 82 • 4 Kg Material • Metal • Metal • Polycarbonate Camera Models Supported • DCS-4602EV • DCS-4602EV • DCS-4602EV • DCS-4603 • DCS-4603 • DCS-4603 • DCS-4802E • DCS-4802E • DCS-4802E • DCS-6212L • DCS-6212L • DCS-6212L D-Link DCS-4633EV User Manual...
  • Page 83: Regulatory Information

    Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. European Union CE EMI Class A Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. D-Link DCS-4633EV User Manual...
  • Page 84 • Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen. • Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies Tuch. D-Link DCS-4633EV User Manual...
  • Page 85 • Mantenga el producto alejado de los radiadores y de otras fuentes de calor. • Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa. D-Link DCS-4633EV User Manual...
