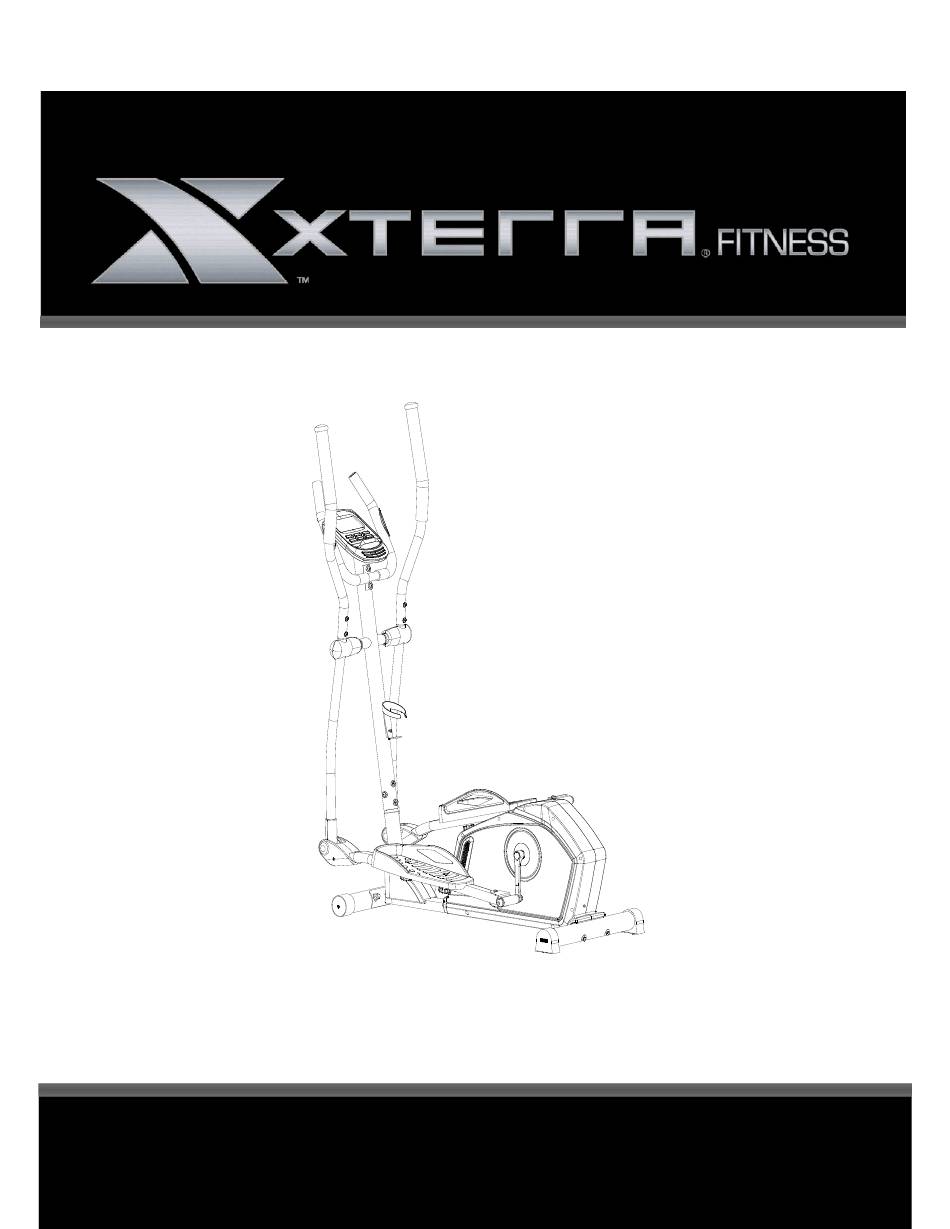

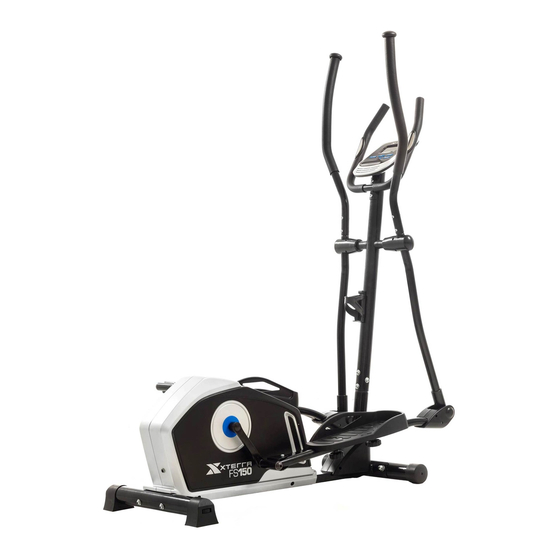

- Page 1 Model: 16604701500 FS150 ELLIPTICAL OWNER’S MANUAL Dyaco Canada Inc 2017 customerservice@dyaco.ca 1 PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Before You Begin .................... 3 Important Safety Instructions ................. 4 Important Electrical Informations ................ 5 Important Operation Instructions ................ 5 FS150 Assembly Instructions .................. 9 Operation of Your New Elliptical .................. 16 Function ......................... 17 Program Introduction & Operation ............... 18 User Direction ...................... 23 General Maintenance .................... 24 Exploded View Diagram.................. 25 Parts List ...................... 27 Trouble Shooting .................... 30 Manufacturer’s Limited Warranty ............... 37 ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. ANY OTHER ... -
Page 3: Before You Begin
BEFORE YOU BEGIN Thank you for choosing the Xterra FS150 Elliptical. We take great pride in producing this quality product and hope it will provide many hours of quality exercise to make you feel better, look better, and enjoy life to its fullest. It's a proven fact that a regular exercise program can improve your physical and mental health. Too often, our busy lifestyles limit our time and opportunity to exercise. The Xterra FS150 Elliptical provides a convenient and simple method to begin your assault on getting your body in shape and achieving a happier and healthier lifestyle. Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled. Read this manual carefully before using the Xterra FS150 Elliptical. Although Dyaco Canada Inc. constructs its products with the finest materials and uses the highest standards of manufacturing and quality control, there can sometimes be missing parts or incorrectly sized parts. If you have any questions or problems with the parts included with your Xterra FS150 Elliptical, please do not return the product. Contact us FIRST! If a part is missing or defective call us toll free at 1‐888‐707‐1880. Our Customer Service Staff are available to assist you from 8:30 A.M. to 5:00 P.M. (Eastern Time) Monday through Friday. Be sure to have the name and model number of the product available when you contact us. Hand Pulse Grip Console Swing Arms Upright Pedals Shroud Rear Stabilizer Front Stabilizer 3 Dyaco Canada Inc 2017 customerservice@dyaco.ca ... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING ‐ Read all instructions before using this equipment. Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet and elliptical may result. Before beginning this or any exercise program, consult a physician. This is especially important for persons over the age of 35 or persons with pre‐existing health conditions. Keep children under the age of 13 away from this machine. There are obvious pinch points and other caution areas that can cause harm. Keep hands away from all moving parts. Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working properly, call your dealer. Keep the cord away from heated surfaces. Never drop or insert any object into any openings. Do not use outdoors. To disconnect, remove the plug from the outlet. The hand pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general. Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue or injury. This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety. User weight should not exceed: 265 lbs (120 kgs) ... -
Page 5: Important Electrical Informations
IMPORTANT ELECTRICAL INFORMATIONS POWER This product uses an external power supply. The adapter must be plugged into the power jack, located on the back of the unit near the stabilizer tube. Next, plug the adapter into the appropriate wall outlet. When not in use, it is recommended to unplug the power supply from the wall outlet. IMPORTANT: If the product has been exposed to cold temperatures, allow the product sit in room temperature to warm up before plugging in the adapter. Failure to do so may result in damage to the display or electronic components. IMPORTANT: Do not operate the product if the power supply, its plug, or its cord has been damaged. WARNING! NEVER remove any cover without first unplugging the adapter. If voltage varies by ten percent (10%) or more, the performance of your elliptical may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing. NEVER expose this elliptical to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment. The operating temperature specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non‐condensing (no water drops forming on surfaces). IMPORTANT OPERATION INSTRUCTIONS NEVER operate this elliptical without reading and completely understanding the results of any operational change you request from the computer. NEVER use your elliptical during an electrical storm. Surges may occur in your household power supply that could damage elliptical components. Unplug the elliptical during an electrical storm as a precaution. Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure. If you feel the buttons are not functioning properly with normal pressure contact Dyaco Canada Inc. 5 Dyaco Canada Inc 2017 customerservice@dyaco.ca ... - Page 6 WARNING DECAL REPLACEMENT The decal shown below has been placed on the elliptical. If the decal is missing or illegible, please call our Customer Service Department toll‐free at 1‐888‐707‐1880 to order a replacement decal. 6 Dyaco Canada Inc 2017 customerservice@dyaco.ca ...
- Page 7 FS150PRE‐ASSEMBLYCHECK LIST NO:1 NO:9L/R NO:39 NO:13L/R NO:38 NO:2 NO:3 NO:22 NO:37L/R NO:21L/R NO:54L/R NO:47 NO:52 NO:84 Part No. Description Q'ty 1 1 Main Frame 9L/R Pedal Tube (L/R) 1/1 39 Stationary Handlebar 1 2 1 Rear Stabilizer 3 Front Stabilizer 1 13L/R Pedal (L/R) 1/1 38 Computer 1 ...
- Page 8 FS150 ASSEMBLY PACK CHECKLIST Part No. Description Q’ty 6 Carriage Bolt M10*75 2 7 Curved Washer Φ8*20*1.5 8 8 Domed Nut M10 2 10 Hinge Bolt (L&R) 1/1 11 Wave Washer 2 12 Flat Washer 2 14 Hex Head Bolt M8*45 4 15 Lock Knob 4 16 Nylon Nut M10 2 17 Flat Washer Φ22*Φ10*1.5 2 18 Sleeve 2 20 ...
-
Page 9: Fs150 Assembly Instructions
FS150 ASSEMBLY INSTRUCTIONS FRONT STABILIZER AND REAR STABILIZER Hardware Step 1 2 Carriage Bolts (#6) 2 Curved Washers (#49) 2 Domed Nuts (#8) Hardware Step1 2 Allen Bolts (#27) 2 Spring Washers (#25) 2 Curved Washers (#7) 1. Attach the front stabilizer (3) to the front of the main frame (1), fasten with two carriage bolts (6), two curved washers ... - Page 10 SUPPORT TUBE Hardware Step 2 4 Allen Bolts (#23) 4 Curved Washers (#7) Connect the computer wire (26) from the front post (22) to the lower computer wire (28). Insert the front post (22) into the main frame (1). Secure using four Allen screws (23) and four curved washers (7). customerservice@dyaco.ca 10 Dyaco Canada Inc 2017 ...
- Page 11 FS150 ASSEMBLY INSTRUCTIONS 3 BOTTOM HANDLEBARS Hardware Step 3 2 D Type Washer (#32) 2 Flat Washer (#31) 2 Spring Washer (#30) 2 Hex Head Bolt (#29) Pre-assembled on Covers: 2 Self Tapping Screws (#33) 1 Self Tapping Screws (#53) ...
- Page 12 PEDAL TUBES Hardware Step 4 1/1 Hinge Bolt (#10L/R) 2 Wave Washer (#11) 2 Flat Washer (#12) 1/1 Nylon Lock Nut (#51L/R) 2 Hex Head Bolt (#20) 2 Washer (#17) 2 Nylon Nut (#16) 2 Lock Knob (#15) 2 Sleeve (#18) Pre-assembled on Covers: 2 Screws (#55)
- Page 13 FS150 ASSEMBLY INSTRUCTIONS HANDLEBARS AND CONSOLE Hardware Step 5 2 Allen Bolts (#23) 2 Curved Washers (#7) Pre-assembled on Console: 4 Screws (#48) 1. Attach the stationary handlebar (39) to the front post (22). Secure using two Allen bolts (23) and two curved washers (7). 2. Insert the hand pulse wires (46) through the hole on the front post (22), and then pull it out from the top of the front post (22). Connect computer wire & hand pulse wire with computer (38) accordingly. 3. Attach the computer (38) to the front post (22) and fasten with four screws (48). customerservice@dyaco.ca 13 ...
- Page 14 FS150 ASSEMBLY INSTRUCTIONS HANDLEBARS Hardware Step 6 2 Allen Bolts (#35) 2 Carriage Bolts (#36) Pre-assembled on Front Post: 2 Self Tapping Screws (#59) 1. Connect the left top handlebar (37L) to the left bottom handlebar (21L). Secure using two allen bolts (35) and two carriage bolts (36). 2. Repeat for the right top handlebar (37R) to the right bottom handlebar (21R). 3. Attach the bottle holder (84) to the front post, secure using two self‐ tapping screws (59). 4. To listen to an MP3 during your workout, connect the MP3 with the computer by using the audio wire (85). ...
- Page 15 7 POWER ADAPTER AND MP3 To listen to an MP3 during your workout, connect the MP3 with the computer (38) by using the audio wire (85) Plug adapter into the power receptacle. customerservice@dyaco.ca 15 Dyaco Canada Inc 2017 ...
-
Page 16: Operation Of Your New Elliptical
OPERATION OF YOUR ELLIPTICAL GETTING FAMILIAR WITH THE CONTROL PANEL FS150 CONSOLE Key Functions START/STOP: Press to start or stop your exercise program. Press to start body fat measurement. UP: Press UP to increase the target values. Press UP to increase the tension level while you are exercising. Press UP to select your desired program. DOWN: Press DOWN to decrease the preset target values. Press DOWN to decrease the tension level. ... -
Page 17: Function
FUNCTIONS Time: Shows your elapsed workout time up to 99:00. Counts down from your preset target time to 0:00 during your workout. Speed: Displays between the current speed up to 99.9 KM/H or MILE/H. Distance: Displays the cumulative distance traveled during your workout up to 99.99 KM or MILE. Counts down from your preset target time to 0 KM or MILE during your workout. RPM: Displays the current rotation per minute. Calories: Displays between the cumulative calories burned at any given time during your workout ... -
Page 18: Program Introduction & Operation
PROGRAM INTRODUCTION & OPERATION Manual Program: Manual P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 3. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance. Operations: 1. Use UP/DOWN keys to select the MANUAL (P1) program. 2. Press the ENTER key to enter MANUAL program. 3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME. 4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE. 5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES. 6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse. 7. Press the START/STOP key to begin exercise. Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program. PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance. Operations: ... - Page 19 User Setting Program: User 1, User 2, User 3, User 4 Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory. Operations: Use UP/DOWN keys to select the USER program from P14 to P17. Press the ENTER key to enter your workout program. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your first column of exercise profile. The default level is load 1. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your second column of exercise profile. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired exercise profile. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES. 10. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse. 11. Press the START/STOP key to begin exercise. Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C. Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program. Program 18 is the 55% Max H.R.C. ‐ ‐ Target H.R. = (220 – AGE) x 55% Program 19 is the 65% Max H.R.C. ‐ ‐ Target H.R. = (220 – AGE) x 65% Program 20 is the 75% Max H.R.C. ‐ ‐ Target H.R. = (220 – AGE) x 75% Program 21 is the 85% Max H.R.C. ‐ ‐ Target H.R. = (220 – AGE) x 85% Program 22 is the Target H.R.C. ‐ ‐ Workout by your target heart rate value. Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET H.R.C. Also the resistance level may decrease every 20 seconds while the ...
- Page 20 6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE. 7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES. 8. Press the START/STOP key to begin exercise. Body Fat Program: Body Fat Program 23 is a special program design to calculate users’ body fat ratio and to offer a specific loading profile for users. There are 3 body types divided according to the FAT% calculated. Type1: BODY FAT% > 27 Type2: 27 ≥ BODY FAT% ≥ 20 Type3: BODY FAT % < 20 The computer will show the test results of FAT PERCENT Operations: 1. Use the UP/DOWN keys to select the BODY FAT (P23) program. 2. Press the ENTER key to enter your workout program. 3. The HEIGHT will flash and you can press the UP or DOWN keys to set your HEIGHT. Press ENTER key to confirm your HEIGHT. The default HEIGHT is 170cm or 5’07” (5feet 7 inches). 4. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER key to confirm your WEIGHT. The default WEIGHT is 70kgs or 155lbs. 5. The GENDER will flash and you can press UP or DOWN keys to select your sex. The number 1 means male and 0 means female. Press ENTER key to confirm your Gender. The default sex is set as 1 (Male). 6. The AGE will flash and you can press the UP or DOWN keys to set your AGE. Press the ENTER key to confirm your AGE. The default AGE is 35. 7. Press the START/STOP key to begin body fat measurement. If the window shows “E” on the window, please make sure your hands are holding the grips well or that the chest belt is touching your body properly. Then press the START/STOP key again to begin body fat measurement. 8. After finishing your measurement, the computer will show the values of FAT PERCENT on the LCD display. 9. Press START/STOP key to begin exercise. customerservice@dyaco.ca 20 Dyaco Canada Inc 2017 ...
- Page 21 customerservice@dyaco.ca 21 Dyaco Canada Inc 2017 ...
- Page 22 customerservice@dyaco.ca 22 Dyaco Canada Inc 2017 ...
-
Page 23: User Direction
USER DIRECTION HOW TO MOVE THE ELLIPTICAL To move the elliptical, grasp the stationary handlebar and pull back on the handle until the Elliptical can be moved on the front wheels. Carefully move the elliptical to the desired location and then lower it. Before moving the machine, please make sure that the top handlebars are on same position. HOW TO LEVEL THE ELLIPTICAL The elliptical is equipped with adjustable end caps. If the unit is wobbly, please turn the leveling caps on the rear stabilizer to level the unit. HOW TO CHANGE MILES TO KM Two people are needed for this. Unplug the adaptor from the elliptical. Press the start/stop button, the enter button and the up button all at the same time and connect the adaptor. Screen will beep and turn on. Press the enter button until the miles or km is flashing. Press the up button to change to km Press enter button until the monitor resets. Your elliptical is now in km. ... -
Page 24: General Maintenance
GENERAL MAINTENANCE The safety of this product can be maintained only if regular periodic checks are made. Most checks can be performed once a week. However some checks should be made before each workout, and are indicated as such below. Checks • Check that bolts and nuts are secure, check before each workout. • Check that pedals are tight, pedals can work loose over time. • Check that stabilizer bolts are tight, check before each workout. • Check that handlebar is secure, if not, tighten, check before each workout. • Should a part become defective, replace it immediately. Do not allow use of the equipment until it has been repaired. Cleaning A damp cloth is sufficient to clean most surfaces of this unit. Be careful not to drip water on the monitor. A mild liquid soap may be added if needed. customerservice@dyaco.ca 24 Dyaco Canada Inc 2017 ... -
Page 25: Exploded View Diagram
EXPLODED VIEW DIAGRAM customerservice@dyaco.ca 25 Dyaco Canada Inc 2017 ... - Page 26 customerservice@dyaco.ca 26 Dyaco Canada Inc 2017 ...
-
Page 27: Parts List
PARTS LIST Key Part Number Description Q'ty 1 7015001 Main Frame 1 2 7015002 Rear stabilizer 1 3 7015003 Front stabilizer 1 4 7015004 Leveling end cap 2 5 7015005 Transportation wheel 2 6 7015006 Carriage bolt M10*75 2 7 7015007 Curved washer Φ8*Φ20 8 8 7015008 Domed nut M10 2 9 L 7015009L Pedal tube Left ... - Page 28 Key Part Number Description Q'ty 35 7015035 Allen bolt M6*12 4 36 7015036 Carriage bolt M6*20 4 37 L 7015037L Top handlebar Left 1 37 R 7015037R Top handlebar Right 1 38 7015038 Computer 1 39 7015039 Stationary handlebar 1 40 7015040 End cap of handlebar 2 41 7015041 Hand pulse sensor 2 42 7015042 Self‐tapping screw ...
- Page 29 Description Q'ty Key Part Number 70 7015070 Hex head bolt M6*25 1 71 7015071 Hex head nut M6 2 72 7015072 Nylon nut M8 1 73 L 7015073L Chain cover Left 1 73 R 7015073R Chain cover Right 1 74 7015074 End cap for chain cover 2 75 7015075 Flywheel 1 ...
-
Page 30: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution Adapter not plugged in Plug adapter in Ensure the computer wires are Monitor does not display Computer Wires not connected connected properly at the upright and computer Ensure the computer wires are Sensor wire not connected connected properly at the upright No speed or distance displays and the computer on the monitor Sensor wire not working properly Replace sensor wire Monitor not working properly Replace monitor Magnetic wheel not working properly Replace magnetic wheel Ensure the computer wires are No tension Computer wires not connected connected properly properly at the upright and the computer Pulse wire not connected Secure plug wires together Heart rate not displaying Hand pulse defective Replace hand pulse grip Monitor not working Replace Monitor Crank bearing defective Replace crank bearings ... - Page 31 TRAINING GUIDELINES EXERCISE Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are: Increased capacity for physical work (strength endurance) Increased cardiovascular (heart and arteries/veins) and respiratory efficiency Decreased risk of coronary heart disease Changes in body metabolism, e.g. losing weight Delaying the physiological effects of age Physiological effects, e.g. reduction in stress, increase in self‐confidence, etc. BASIC COMPONENTS OF PHYSICAL FITNESS There are four all encompassing components of physical fitness and we need to briefly define each and clarify its role. Strength is the capacity of a muscle to exert a force against resistance. Strength contributes to power and speed and is of great importance to a majority of sports people. Muscular Endurance is the capacity to exert a force repeatedly over a period of time, e.g. it is the capacity of your legs to carry you 10 Km without stopping. Flexibility is the range of motion about a joint. Improving flexibility involves the stretching of muscles ...
- Page 32 Progression As your become fitter, a higher intensity of exercise is required to create an overload and therefore provide continued improvement Overload This is where you exercise at a level above that which can be carried out comfortably. The intensity, duration and frequency of exercise should be above the training threshold and should be gradually increased as the body adapts to the increasing demands. As your fitness level improves, so the training ...
- Page 33 The following table is a guide to those who are “starting fitness”. Age 25 30 35 40 45 50 55 60 65 Target heart Rate 10 Second Count 23 22 22 21 20 19 19 18 18 Beats per Minute 138 132 132 126 120 114 114 108 108 Pulse Count ...
- Page 34 This, of course, does depend on your overall fitness level. A confirmation that you are on the correct program is a very slight soreness in most major muscle groups. This is quite normal and will disappear in a matter of days. If you experience major discomfort, you may be on a program that is too advanced or you have increased your program too rapidly. If you experience PAIN during or after exercise, your body is telling you something. Stop exercising and consult your doctor. WHAT TO WEAR Wear clothing that will not restrict your movement in any way while exercising. Clothes should be light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you normally would while exercising, gives you no advantage. The extra weight you lose is body fluid and will be replaced with the next glass of water you drink. It is advisable to wear a pair of gym or running shoes or ...
- Page 35 STRETCHING Stretching should be included in both your warm up and cool down, and should be performed after 3‐5 minutes of low intensity aerobic activity or callisthenic type exercise. Movements should be performed slowly and smoothly, with no bouncing or jerking. Move into the stretch until slight tension, not pain, is felt in the muscle and hold for 20‐30 seconds. Breathing should be slow, rhythmical and under control, making sure never to hold your breath. HEAD ROLLS SHOULDER LIFTS Rotate your head to the right for one count, Lift your right shoulder up toward your feeling the stretch up the left side of your neck. ear for one count. Then lift your left Next rotate your head back for one count, shoulder up for one count as you lower stretching your chin to the ceiling and letting your right shoulder. your mouth open. Rotate your head to the left for one count, and finally, drop your head to your chest for one count. ...
- Page 36 INNER THIGH STRETCH TOUCHES Sit with the soles of your feet together Slowly bend forward from your waist, with your knees pointing outward. Pull letting your back and shoulders relax as you your feet as close into your groin as stretch toward your toes. Reach down as far possible. Gently push your knees towards as you can and hold for 15 counts. the floor. Hold for 15 counts. CALF / ACHILLES STRETCH HAMSTRING STRETCHES Lean against a wall with your left leg in Sit with your right leg extended. Rest the sole of front of the right and your arms forward. your left foot against your right inner thigh. Stretch Keep toward your toe your right leg straight as far as possible. Hold for 15 counts. Relax and and the left foot on the floor then bend the then repeat with left leg extended. left leg and lean forward by moving your ...
-
Page 37: Manufacturer's Limited Warranty
MANUFACTURER’S LIMITED WARRANTY Dyaco Canada Inc. warrants all its elliptical parts for a period of time listed below from the date of retail sale, as determined by sale receipt. Dyaco Canada Inc.’s responsibilities include providing new or remanufactured parts, at Dyaco Canada Inc.’s option. The warranty period applies to the following components: Limited Warranty Frame 1 Year Parts 1 Year The consumer is responsible for the items listed below: The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase. Proper use of the elliptical in accordance with the instructions provided in this manual. Proper installation in accordance with instructions provided with the elliptical and with all local electric codes. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house wiring. Damages to the elliptical finish during shipping, installation or following installation. Routine maintenance of this unit as specified in this manual. EXCLUSIONS This warranty does not cover the following: CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some areas do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Damages caused by users; use of parts other than original Dyaco Canada Inc. parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modifications, abuse, misuse, accident, improper maintenance. or acts of God. Products with original serial numbers that have been removed or altered. Products that have been: sold, transferred, bartered, or given to a third party. Products that do not have a warranty registration card on file at Dyaco Canada Inc. Dyaco Canada Inc. reserves the right to request proof of purchase if no warranty record exists for the product. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. Warranties outside of Canada may vary. Please contact Dyaco Canada for details. ... - Page 38 Please visit us online for information about our other brands and products manufactured and distributed by Dyaco Canada Inc. www.dyaco.ca www.dyaco.ca ...
- Page 39 1 ...
