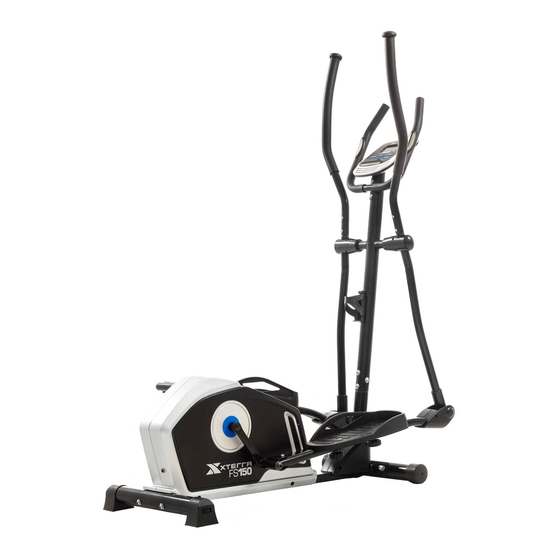

Xterra FS150 Owner's Manual

Hide thumbs Also See for FS150:

Advertisement

Quick Links

Download this manual
FITNESS
FS150 ELLIPTICAL
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xterra FS150

Summary of Contents for Xterra FS150

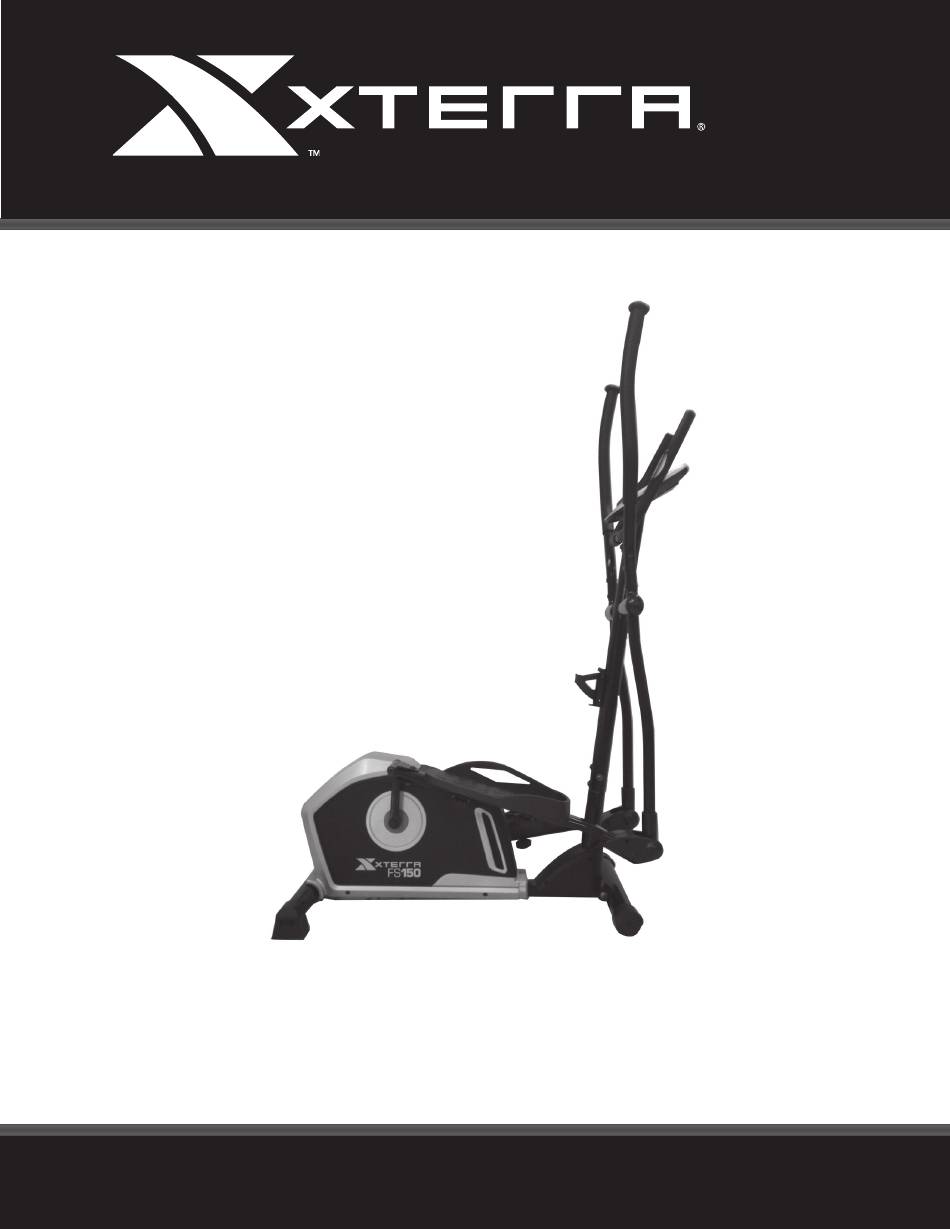

  • Page 1 FITNESS FS150 ELLIPTICAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL...

  • Page 2: Table Of Contents

    XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call (870) 333-5500.

  • Page 3: Product Registration

    Serial Number Register Your Purchase The self-addressed product registration card must be completed in full and returned to XTERRA Fitness. You can also go to www.xterrafitness.com/warrantyreg.html to register online. Power This product uses an external power supply. The adapter must be plugged into the power jack, located on the front of the unit near the stabilizer tube.

  • Page 4: Important Safety Instructions

    Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. FS150 Elliptical...
  • Page 5 Before you begin Thank you for selecting our revolutionary Xterra FS150 Elliptical. Walking is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. Our fitness elliptical provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

  • Page 6: Fs150 Assembly Instructions

    FS150 Pre-Assembly Check List PART NO. DESCRIPTION Q’TY Main Frame 9L/R Pedal Tube (L/R) Stationary Handlebar Rear Stabilizer Front Stabilizer 13L/R Pedal (L/R) Computer Front Post 37L/R Top Handlebar (L/R) 21L/R Bottom Handlebar (L/R) Cover for Cross Bar Cover for Dual Handle Bar...
  • Page 7 FS150 Assembly Pack Checklist Part No. Description Q’ty Carriage Bolt M10*75 Curved Washer Φ8*20*1.5 Domed Nut M10 Hinge Bolt (L&R) Wave Washer Flat Washer Hex Head Bolt M8*45 Lock Knob Nylon Nut M10 Flat Washer Φ22*Φ10*1.5 Sleeve Hex Head Bolt M10*78...
  • Page 8 FS150 Assembly Instructions Front Stabilizer and Rear Stabilizer Hardware Step 1 2 Carriage Bolts (#6) 2 Curved Washers (#49) 2 Domed Nuts (#8) 2 Allen Bolts (#27) 2 Spring Washers (#25) 2 Curved Washers (#7) 1. Attach the front stabilizer (3) to the front of the main frame (1), fasten with two carriage bolts (6), two curved washers (49) and two domed nuts (8).
  • Page 9 1. Connect the computer wire (26) from the front post (22) to the lower computer wire (28). Insert the front post (22) into the main frame (1). Secure using four allen screws (23) and four curved washers (7). FS150 Elliptical...
  • Page 10 FS150 Assembly Instructions Bottom Handlebars Hardware Step 3 2 D Type Washer (#32) 2 Flat Washer (#31) 2 Spring Washer (#30) 2 Hex Head Bolt (#29) Pre-assembled on Covers: 2 Self Tapping Screws (#33) 1 Self Tapping Screws (#53) 1. Attach the left bottom handlebar (21L) to the left side axle of the front post (22).
  • Page 11 (56). Attach the left pedal (13L) to the left pedal tube (9L), secure using hex head bolts (14) and two lock knob (15). 4. Repeat for the right pedal tube (9R) to the right bottom handlebar (21R). FS150 Elliptical...
  • Page 12 FS150 Assembly Instructions Handlebars and Console Hardware Step 4 2 Allen Bolts (#23) 2 Curved Washers (#7) Pre-assembled on Console: 4 Screws (#48) 1. Attach the stationary handlebar (39) to the front post (22). Secure using two allen bolts (23) and two curved washers (7).
  • Page 13 FS150 Assembly Instructions Handlebars Hardware Step 6 2 Allen Bolts (#35) 2 Carriage Bolts (#36) Pre-assembled on Front Post: 2 Self Tapping Screws (#59) 1. Connect the left top handlebar (37L) to the left bottom handlebar (21L). Secure using two allen bolts (35) and two carriage bolts (36).
  • Page 14 Power Adapter and MP3 1. To listen to an MP3 during your workout, connect the MP3 with the computer (10) by using the audio wire (85) 2. Plug adapter into the power receptacle. FS150 Elliptical...

  • Page 15: Operation Of Your Console

    Operation of Your Console FS150 Console Key Functions START/STOP: Press to start or stop your exercise program. Press to start body fat measurement. Press UP to increase the target values. Press UP to increase the tension level while you are exercising.
  • Page 16 Note: If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR” on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest transmitter is attached wel FS150 Elliptical...
  • Page 17 The monitor will turn on automatically by pressing any key or when you start to pedal. The monitor will shut off automatically if no signal is detected for four minutes and will keep all function values. You may press Start button or start to pedal to have the computer resume. FS150 Elliptical...

  • Page 18: Program Operation

    Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in FS150 Elliptical...
  • Page 19 4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120. 5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press FS150 Elliptical...
  • Page 20 Then press the START/STOP key again to begin body fat measurement. 8. After finishing your measurement, the computer will show the values of FAT PERCENT on the LCD display. 9. Press START/STOP key to begin exercise. FS150 Elliptical...
  • Page 21 FS150 Elliptical...
  • Page 22 FS150 Elliptical...
  • Page 23 Screen will beep and turn on. Press the enter button until the miles or km is flashing. Press the up button to change to km Press enter button until the monitor resets. Your elliptical is now in km. FS150 Elliptical...
  • Page 24 EEPROM has problem (EEPROM cannot interface with the Replace monitor is installed incorrect) IC chip. The gear motor cannot read the signal change from the level one Replace gear motor within 4 seconds after press the start button. FS150 Elliptical...
  • Page 25 • Should a part become defective, replace it immediately. Do not allow use of the equipment until it has been repaired. Cleaning A damp cloth is sufficient to clean most surfaces of this unit. Be careful not to drip water on the monitor. A mild liquid soap may be added if needed. FS150 Elliptical...

  • Page 26: Manufacturer's Limited Warranty

    Effective June 6, 2016 - Elliptical LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use elliptical parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent...
  • Page 27 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2016 All RIghts Reserved. FS150 Owner’s Manual FS150 Elliptical...
