Replaceable Parts

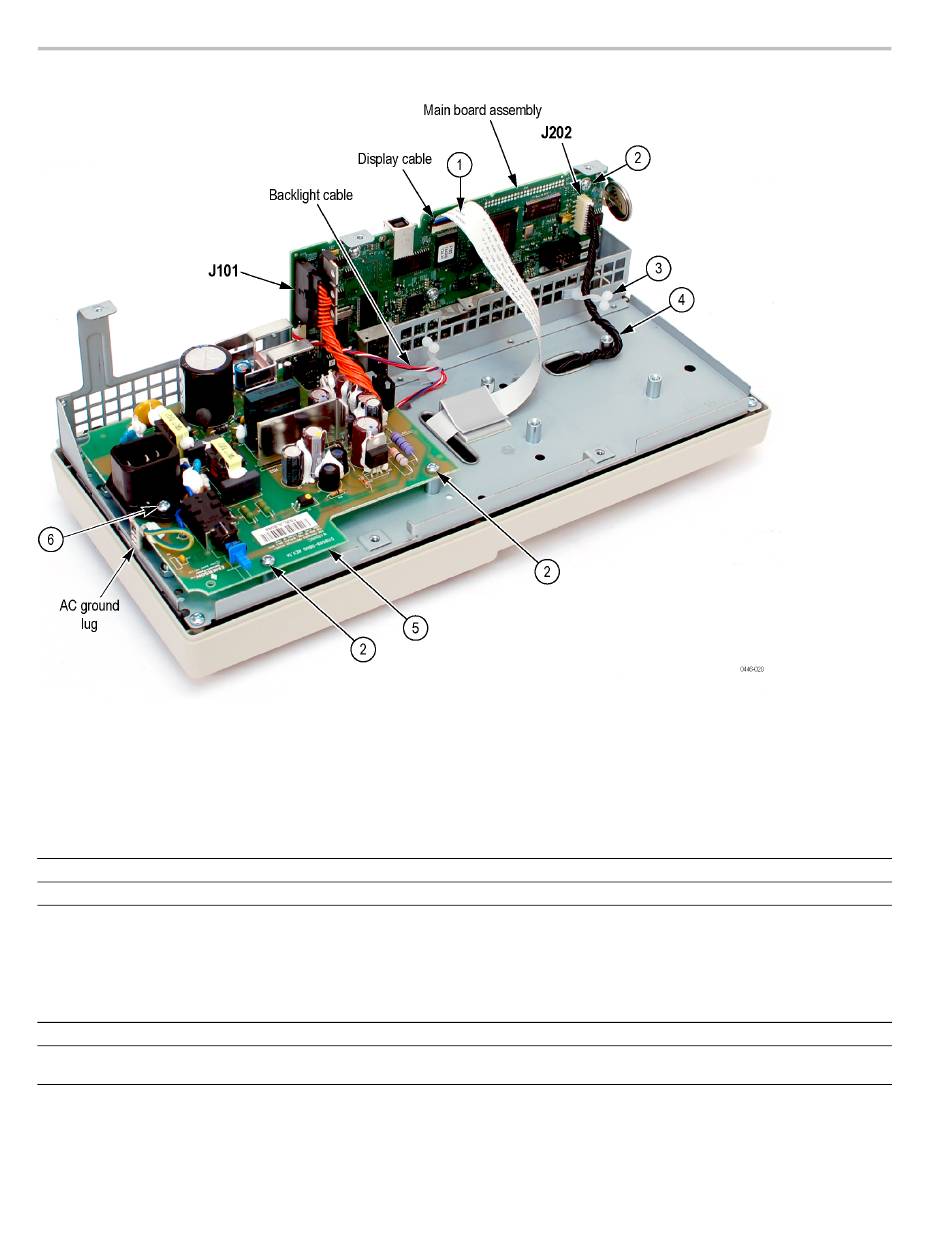

Figure 14: Power supply module, cables, and wires
Table 30: Replaceable parts list; power supply module, instrument cables, and wires
Fig. &
Tektronix
Serial
index
part
no.
number
number
effective
8-3
-1
174-6101-00
-2
211-1272-00
-3
343-1673-00
-4
174-4658-00
94
Serial
no.
discont'd
Qty
Name & description
POWER SUPPLY, INSTRUMENT CABLES, WIRES
1
CA ASSY, FPC/FFC; LCD DISPLAY DATA CABLE
10
SCREW, MACHINE; 6-32 X 0.250, PNH, STL, ZNPL, T- 15 TORX DR
2
CLAMP, CABLE; NYLON 6/6, COLOR NATURAL
1
CA ASSY, SP; DISCRETE, 26 AWG, 5.5 L, FEMALE, 1 X 12, 0.059 (1.5 MM) CTR, DUAL
ENDED, FRONT PANEL
TDS2000C and TDS1000C-EDU Series Oscilloscope Service Manual
