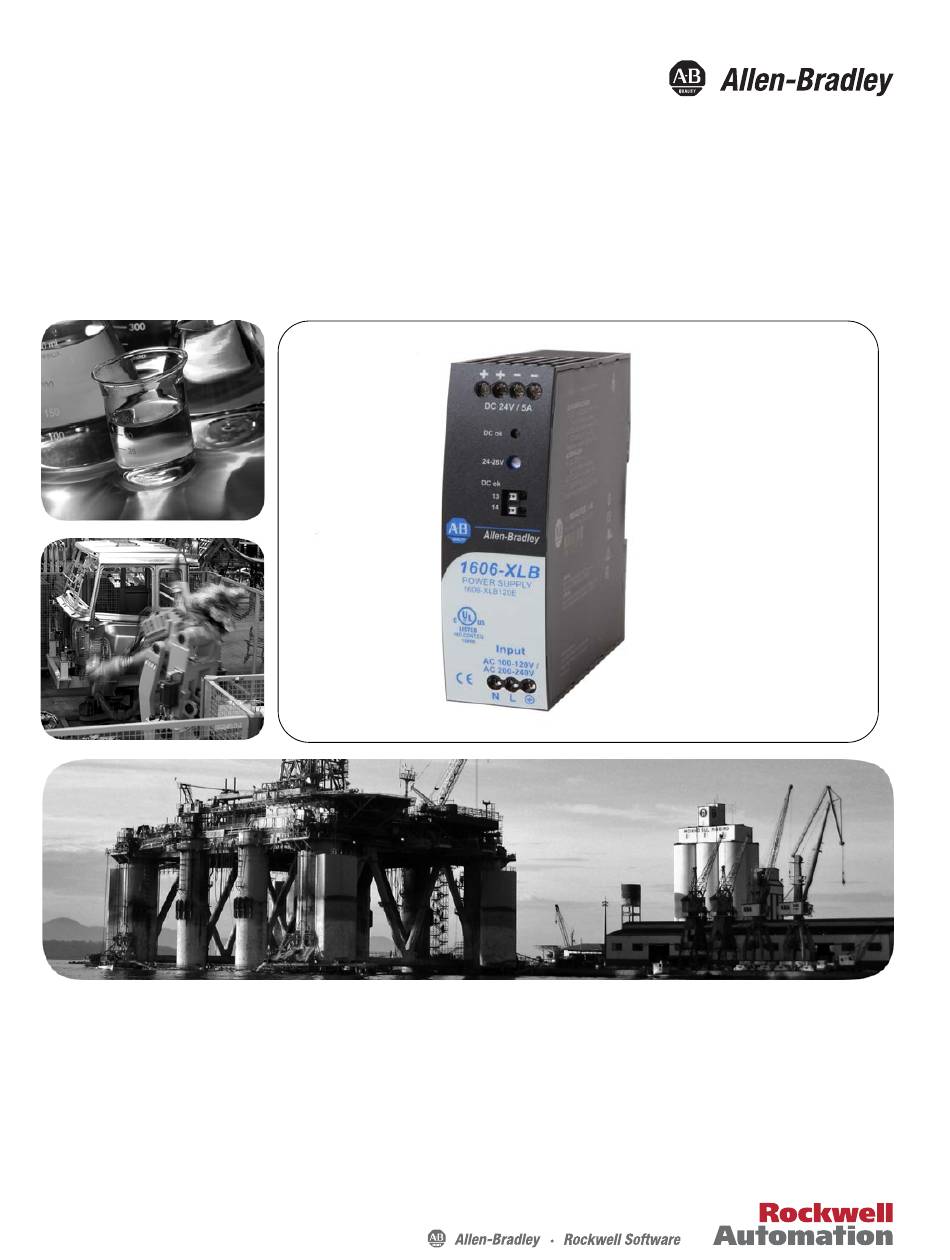

- Page 1 Reference Manual Original Instructions Basic Power Supply 5 A Catalog Number 1606-XLB120E...
- Page 2 Important User Information Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
-
Page 3: Table Of Contents
Provides declarations of conformity, certificates, and www.rockwellautomation.com/global/certification/ other certification details. overview.page You can view or download publications at http://www.rockwellautomation.com/global/literature-library/overview.page. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative. Rockwell Automation Publication 1606-RM055A-EN-P - December 2016... -
Page 4: Terminology And Abbreviations
Basic Power Supply 5 A Terminology and Abbreviations Term Definition 230V AC A figure with the unit (V AC) at the end is a momentary figure without any additional tolerances included. 50 Hz vs. 60 Hz As long as not otherwise stated, AC 100V and AC 230V parameters are valid at 50 Hz mains frequency. -
Page 5: Product Overview
Basic Power Supply 5 A Product Overview 1606-XLB Basic Power Supplies are compact, industrial grade power supplies that focus on the essential features needed in industrial applications. The mechanically robust housing is made of a high-grade, reinforced molded material, which permits the units to be used in ambient temperatures up to 70 °C (158 °F). -
Page 6: Front Side And User Elements

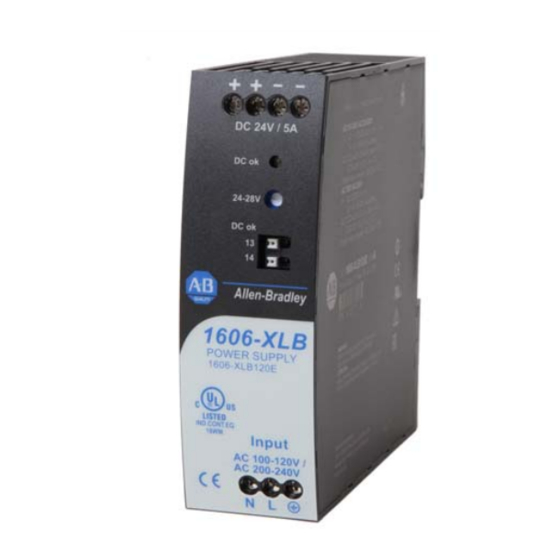

Basic Power Supply 5 A Front Side and User Elements Figure 1 - Front Side of DC-UPS Letter Description Input terminals - (screw terminals) N, L - Line input PE - Protective earth input Output terminals - (screw terminals, two pins per pole) + Positive output –... -
Page 7: Safety Features
Basic Power Supply 5 A Safety Features Attribute 1606-XLB120E Input/output separation SELV IEC/EN 60950-1 double or reinforced insulation PELV IEC/EN 60204-1, EN 50178, IEC 62103, IEC 60364-4-41 Class of protection PE (Protective Earth) connection required Isolation resistance > 100 MOhm input to output, 500V DC Touch current typ 0.21 mA/0.46 mA 100V AC, 50 Hz, TN-,TT-mains/IT-mains... -
Page 8: Input
Basic Power Supply 5 A Input Attribute 1606-XLB120E AC input 100…120V/200…240V AC Auto-select, suitable for TN-, TT- and IT mains networks AC input range 90…132V AC/180…264V AC continuous operation 264…300V AC < 500 ms Allowed voltage L or N to earth 300V AC continuous, IEC 62103 Input frequency... -
Page 9: Dc-Input
Basic Power Supply 5 A DC-Input Do not operate the power supply with DC-input voltage. Input Inrush Current A NTC inrush limiter limits the input inrush current after turn-on of the input voltage. Attribute AC 100V AC 120V AC 230V Notes Inrush 23 A peak... -
Page 10: Output
Basic Power Supply 5 A Output Attribute 1606-XLB120E Notes Output voltage DC 24V Adjustment range 24…28V guaranteed at clockwise end position of potentiometer Factory settings 24.1V ±0.2 %, at full load, cold unit Line regulation 10 mV 90…132/180…264V AC Load regulation 150 mV static value, 0 A .. -
Page 11: Hold-Up Time
Basic Power Supply 5 A Hold-up Time Type AC 100V AC 120V AC 230V 24V, 2.5 A 64 ms 108 ms 105 ms 54 ms 91 ms 88 ms 24V, 5 A 26 ms 51 ms 50 ms 22 ms 43 ms 42 ms Figure 10 - Hold-up Time vs. -
Page 12: Efficiency And Power Loss
Basic Power Supply 5 A Efficiency and Power Loss Attribute AC 100V AC 120V AC 230V Notes Efficiency 90.7% 91.2% 92.3% at 24V, 5 A Average 89.2% 89.4% 90.6% 25% at 1.25 A, 25% at 2.5 A, efficiency 25% at 3.75 A. 25% at 5 A Power losses 1.4 W 1.5 W... -
Page 13: Lifetime Expectancy And Mean Time Between Failure (Mtbf)
Basic Power Supply 5 A Lifetime Expectancy and Mean Time between Failure (MTBF) Attribute AC 100V AC 120V AC 230V Notes Lifetime 181 000 h 194 000 h 219 000 h at 24V, 2.5 A and 40 °C (104 °F) expectancy 511 000 h 548 000 h... -
Page 14: Emc
Basic Power Supply 5 A EMC Immunity According to Generic Standards EN 61000-6-1 and EN 61000-6-2 Criterion Electrostatic discharge EN 61000-4-2 contact discharge 8 kV Criterion A air discharge 8 kV Criterion A Electromagnetic RF field EN 61000-4-3 80 MHz-2.7 GHz 20V/m Criterion A Fast transients (Burst) -
Page 15: Application Notes
Basic Power Supply 5 A Application Notes Peak Current Capability The unit can deliver peak currents (up to several milliseconds) which are higher than the specified short-term currents. This helps to start current demanding loads. Solenoids, contactors, and pneumatic modules often have a steady state coil and a pick-up coil. The inrush current demand of the pick-up coil is several times higher than the steady-state current and usually exceeds the nominal output current. - Page 16 Basic Power Supply 5 A This power supply is resistant and does not show malfunctioning when a load feeds back voltage to the power supply. It does not matter whether the power supply is on or off. The maximum allowed feed-back-voltage is 35V DC. The absorbing energy can be calculated according to the built-in large sized output capacitor that is specified in Output on page...
- Page 17 Basic Power Supply 5 A Series Operation Power supplies of the same type can be connected in series for higher output voltages. It is possible to connect as many units in series as needed, providing the sum of the output voltage does not exceed 150V DC. Voltages with a potential above 60V DC are not SELV any more and can be dangerous.
- Page 18 Basic Power Supply 5 A Operation on Two Phases The power supply can also be used on two-phases of a three-phase-system. Such a phase-to-phase connection is allowed as long as the supplying voltage is +10% below 240V Figure 21 - Operation on Two Phases Power Supply internal fuse...
-
Page 19: Specifications
Basic Power Supply 5 A Specifications Attribute 1606-XLB120E Notes Output voltage DC 24V 24…28V DC Adjustment range Output for AC 110…120/ 5.0...4.3 A at 24…28V, <55 °C 220…240V mains: 3.1...2.7 A at 24…28V, <70 °C for AC 100/200V mains: 5.0...4.3 A at 24…28V, <50 °C 2.5...2.1 A at 24…28V, <70 °C... -
Page 20: Environment
Basic Power Supply 5 A Environment Attribute 1606-XLB120E Notes Operational temperature -10… +70 °C (14… 158 °F) reduce output power according to Figure 22 Storage temperature -40… +85 °C (-40… 185 °F) for storage and transportation Output derating 3W/°C (55…70 °C 131…158 °F) for AC 110-120/220-240V mains systems for AC 100/200V mains systems 3W/°C (50…70 °C;... -
Page 21: Dielectric Strength
Basic Power Supply 5 A Dielectric Strength The output voltage is floating and has no ohmic connection to the ground. Type and factory tests are conducted by the manufacturer. Field tests can be conducted in the field using the appropriate test equipment, which applies the voltage with a slow ramp (2 s up and 2 s down). -
Page 22: Standards Compliance And Certifications
Basic Power Supply 5 A Standards Compliance and Certifications EC Declaration of Conformity The CE Marking indicates conformance with the low voltage directive and EMC Directive. EN 60950-1, EN 61000-6 UL 508 Listed for use as Industrial Control Equipment ;U.S.A. (UL 508) and Canada (C22.2 No. -
Page 23: Approximate Dimensions And Weight
Basic Power Supply 5 A Approximate Dimensions and Weight Attribute 1606-XLB120E Width 39 mm (1.54 in.) Height 124 mm (4.88 in.) Depth 124 mm (4.88 in.) Weight 370 g (0.81 lb) DIN Rail Use 35 mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15 mm. Plastic Material of Housing Flame retardant Polycarbonate (PC) - UL94-V0 Vicat softening temperature specified with 149 °C according to ASTM D1525... - Page 24 Basic Power Supply 5 A Notes: Rockwell Automation Publication 1606-RM055A-EN-P - December 2016...
- Page 26 How Are We Doing? form at http://literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf. Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, Rockwell Automation, and Rockwell Software are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
