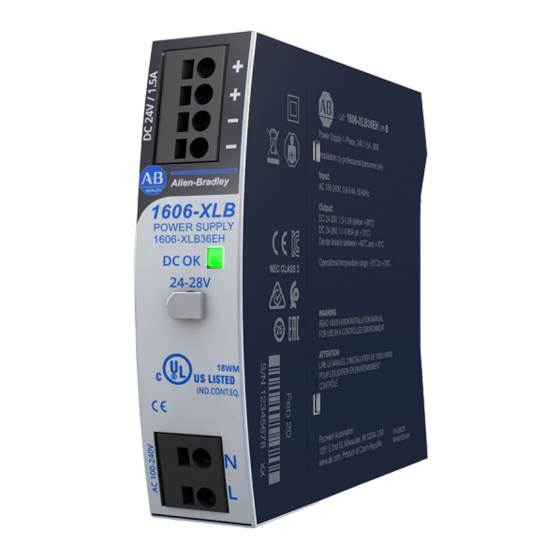

- Page 1 Power Supply - 24V, 1.5 A, 36 W, Single-phase Input Catalog Number 1606-XLB36EH Reference Manual Original Instructions...
- Page 2 Power Supply - 24V, 1.5 A, 36 W, Single-phase Input Reference Manual Important User Information Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
-
Page 3: Table Of Contents
Table of Contents Terminology and Abbreviations ........5 Product Overview . - Page 4 Table of Contents Notes: Rockwell Automation Publication 1606-RM122A-EN-P - September 2021...
-
Page 5: Terminology And Abbreviations
(EMC) requirements without an input PE connection. This saves wiring costs. The 1606-XLB36EH is part of a series of compact, industrial grade DIN rail power supplies. This series focuses on the essential features that are needed in present day industrial applications. The excellent cost/performance ratio does not compromise quality or reliability. -
Page 6: Specifications
22.5 x 90 x 91 mm Size (W x H x D) Without DIN rail (0.89 x 3.54 x 3.58 in.) Weight 140 g (0.31 lb) — Catalog Number Catalog Number Description 1606-XLB36EH Power supply Rockwell Automation Publication 1606-RM122A-EN-P - September 2021... -
Page 7: Ac Input
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual AC Input The device is suitable to be supplied from TN, TT, or IT mains networks. Attributes Values Notes AC input AC 100…240V — 90…264V AC Continuous operation AC input range 264…300V AC For max 500 ms... -
Page 8: Input Inrush Current
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Input Inrush Current An NTC limits the input inrush current after turn-on of the input voltage. The inrush current is input voltage and ambient temperature dependent. The output load has no impact on the inrush current value. -
Page 9: Output
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Output The output provides a SELV/PELV/ES1 rated voltage, which is galvanically isolated from the input voltage. The output is electronically protected against no-load, overload, and short circuit. If there is a protection event, audible noise may occur. The output is designed to supply any kind of loads, including inductive and capacitive loads. -
Page 10: Hold-Up Time
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Hold-up Time The hold-up time is the time during which the output voltage of a power supply remains within specification following the loss of input power. The hold-up time is output load dependent. -
Page 11: Efficiency And Power Losses
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Efficiency and Power Losses Values Attributes Notes AC 100V AC 120V AC 230V Efficiency 89.4% 90.5% 90.6% At 24V, 1.5 A (full load) 25% at 0.38 A, 25% at 0.75 A, Average efficiency 89.0% 89.6%... -
Page 12: Functional Diagram
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Functional Diagram Figure 17 - Functional Diagram Output Voltage Regulator Input Input Fuse Rectifier Power Output & & Converter Filter Input Inrush Filter Limiter DC-OK Output Status Overvoltage Protection Indicator... -
Page 13: Lifetime Expectancy
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Lifetime Expectancy The lifetime expectancies that are shown in the table indicate the minimum operating hours (service life). The lifetime expectancy of the built-in electrolytic capacitors determines the lifetime expectancy of the power supply. Lifetime expectancy is specified in operational hours and is calculated according to the manufacturer specification of the capacitor. - Page 14 DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Do not use this device in an application where both of the following are true: • The device is used on AC 100V mains with more than 1.9 A load. •...
-
Page 15: Environment
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Environment Attributes Values Notes The operational temperature is the ambient or surrounding temperature and is defined as the Operational temperature -10…+70 °C (14…158 °F) air temperature 2 cm (0.79 in.) below the device. Storage temperature -40…+85 °C (-40…+185 °F) For storage and transportation... -
Page 16: Safety And Protection Features
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Safety and Protection Features Attributes Values Notes At delivered condition between input and output, which is Isolation resistance 500 MΩ measured with 500V DC 30.5V DC — 32V DC —... -
Page 17: Certifications And Standards Compliance
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Certifications and Standards Compliance Name Symbol Notes UL Certificate Listed equipment for category NMTR - UL 61010-2-201 Electrical Equipment for Measurement, Control, and UL 61010-2-201 Laboratory Use - Particular requirements for control (former UL 508) equipment Applicable for US and Canada... -
Page 18: Approximate Dimensions And Weight
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Approximate Dimensions and Weight Attributes Values and Descriptions Width 22.5 mm (0.86 in.) Height 90 mm (3.54 in.) 91 mm (3.58 in.) Depth The DIN rail height must be added to the unit depth to calculate the total required installation depth. Weight 140 g (0.31 lb) Use 35 mm (1.38 in.) DIN rails according to EN 60715 or EN 50022 with a height of 7.5 mm (0.295 in.) or... -
Page 19: Series Operation
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual Series Operation Devices of the same type can be connected in series for higher output voltages. It is possible to connect as many units in series as needed, providing the sum of the output voltage does not exceed 150V DC. -
Page 20: Use In A Tightly Sealed Enclosure
21.0 °C (69.80 °F) Temperature rise 6.9 K 7.5 K Prohibited and Unsupported This section covers applications in which the 1606-XLB36EH power supply is Applications either prohibited or not recommended. DC Input Do not operate this power supply with DC input voltage. -
Page 21: Additional Resources
1606-XLB36EH Installation Instructions, publication 1606-IN056 Provides basic specifications and installation instructions. Industrial Components Preventive Maintenance, Enclosures, and Contact Provides a quick reference tool for Allen-Bradley industrial automation controls and Ratings Specifications, publication IC-TD002 assemblies. Designed to harmonize with NEMA Standards Publication No. ICS 1.1-1987 and provides... - Page 22 At the end of life, this equipment should be collected separately from any unsorted municipal waste. Rockwell Automation maintains current product environmental compliance information on its website at rok.auto/pec. Allen-Bradley, expanding human possibility, and Rockwell Automation are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
