Installation

This Installation Note provides a quick review of the steps necessary to connect an 1100X Wireless Receiver to an
XR500 Series panel. As needed refer to the XR500 Series Install Guide (LT-0681), XR500 Series Programming Guide
(LT-0679), and the 1100X Install Guide (LT-0708).
1. On the XR500 Series panel, Install a jumper across the pins next to the letter "X" on the J23 Header.
2. Connect one end of the included 4-wire harness to the XR500 panel 4-pin header labeled J22 LX and run a
cable up to 1000' to connect to the J3 header on the 1100X Wireless Receiver. This provides up to 500 wireless
zones numbered 500 to 999. A location should be selected that will be centrally located between the 1100
Series transmitters used in the installation. Install the receiver away from large metal objects. Mounting the
receiver on or near metal surfaces impairs performance. Do not use shielded wire between the panel and
receiver. When selecting the proper mounting location of a transmitter, refer to the LED Survey Operation
section of the specific installation guide for the transmitter being installed.
Note: The 1100X Wireless Receiver cannot operate if connected to the Keypad Bus.
3. Reset and restart the panel using the J16 jumper to activate the DMP Wireless Bus operation.
4. In System Options, program the House Code (1-50). In Zone Information, program the wireless zones.
Note: Do not operate transmitter devices with a battery until all wireless zones are programmed in the XR500
panel.
5. Save the changes by running the Stop routine to exit the keypad programmer or, if using Remote Link,
disconnect from the panel. Wait one minute after saving programming to memory, then test the wireless
zones.

Troubleshooting

Should wireless devices not operate, refer to the following checklist:
• Verify the XR500 panel J23 jumper is in the "X" position.
• Briefly reset the panel using the J16 jumper to activate
wireless operation.
• Verify the House Code (1-50) is programmed in System
Options.
• Verify the 4-wire connector from the receiver is
connected to J22.
• Wait one minute after reset to test wireless zone(s).

Diagrams

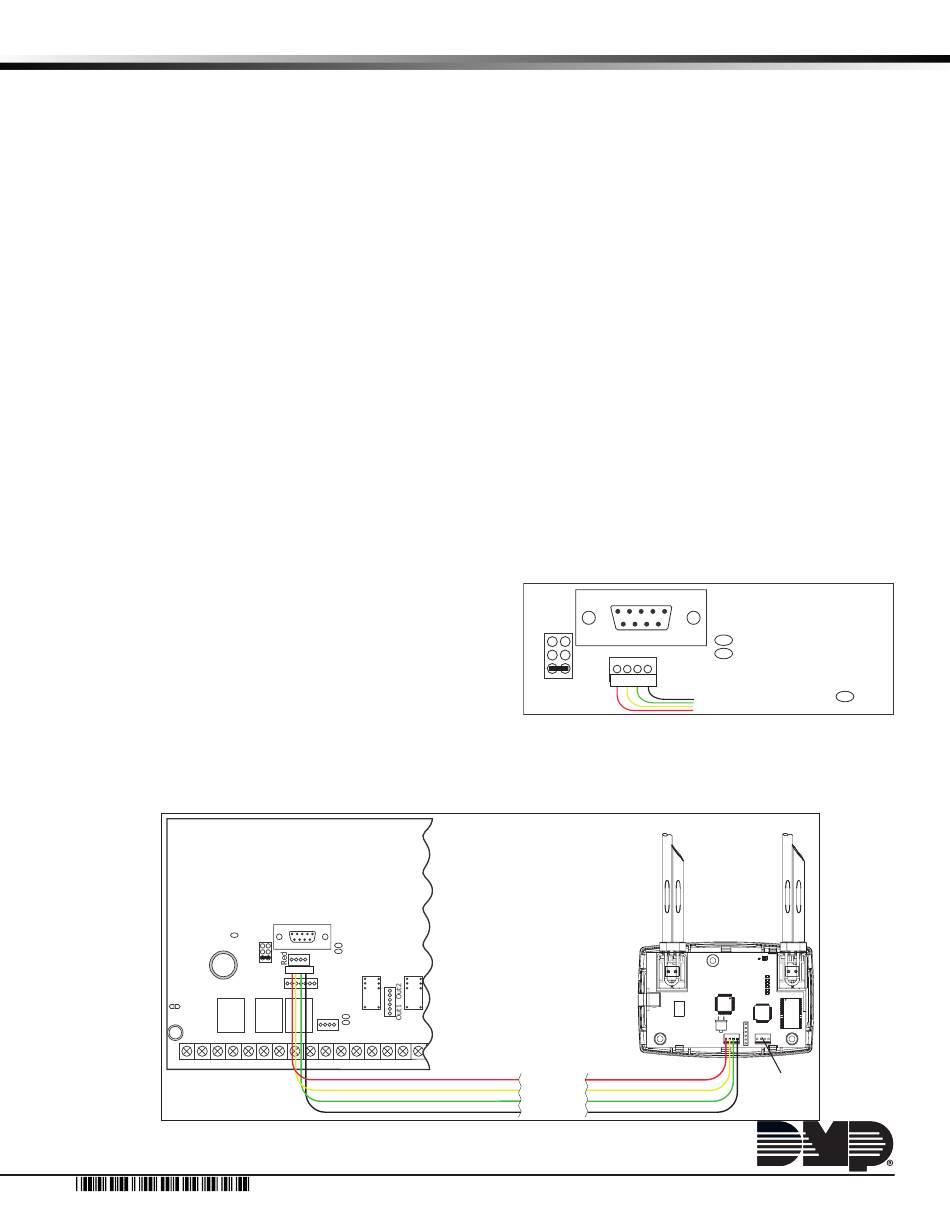

The figure to the right shows detailed XR500 Series panel connections.
The figure below shows the XR500 Series Panel and the 1100X Wireless Receiver connection.
XR100/XR100FC/XR500/XR500FC
Power
LED
X
Battery
Start
AC AC +B –B BELL GND
1 2 3 4 5
LT-0918 1.01 © 2007 Digital Monitoring Products, Inc.
1100X Wireless Receiver Quick Install
Series Panel
J21
J23
XMT - Transmit LED
R RS-232
J22 REC - Receive LED
L
LX
Output 1 Output 2
J10
J2
K6 K7
J8
PROG
RED YEL GRN BLK SMK GND Z1 GND Z2 Z3 G
6 7 8 9 10 11 12 13 14 15 16
7395
INST ALLA TION NOTE
J23
R
L
X
Place Jumper
on DMP Wireless
Bus "X" header pins.
Red
Yellow
Can be extended
Green
up to 1000 feet
Black from the panel
J21
RS-232
XMT - Transmit LED
REC - Receive LED
J22
LX
Connect 4-wire Harness
1100X
Receiver
1 J1 1 J4
Power
RXD
TXD
Status
RF RXD
RF TXD
1 U4
U8
1
U5
U7
J5
1
RED RED
J3 J4
1 PANEL 1 PROG
J4 Not Used
Overcurrent
(OVC) LED
