DMP Electronics 1100XHE Installation Manual

1100XHE ENCRYPTED HIGH POWER
WIRELESS RECEIVER

Installation Guide

WALL
TAMPER
ENABLE
DISABLE

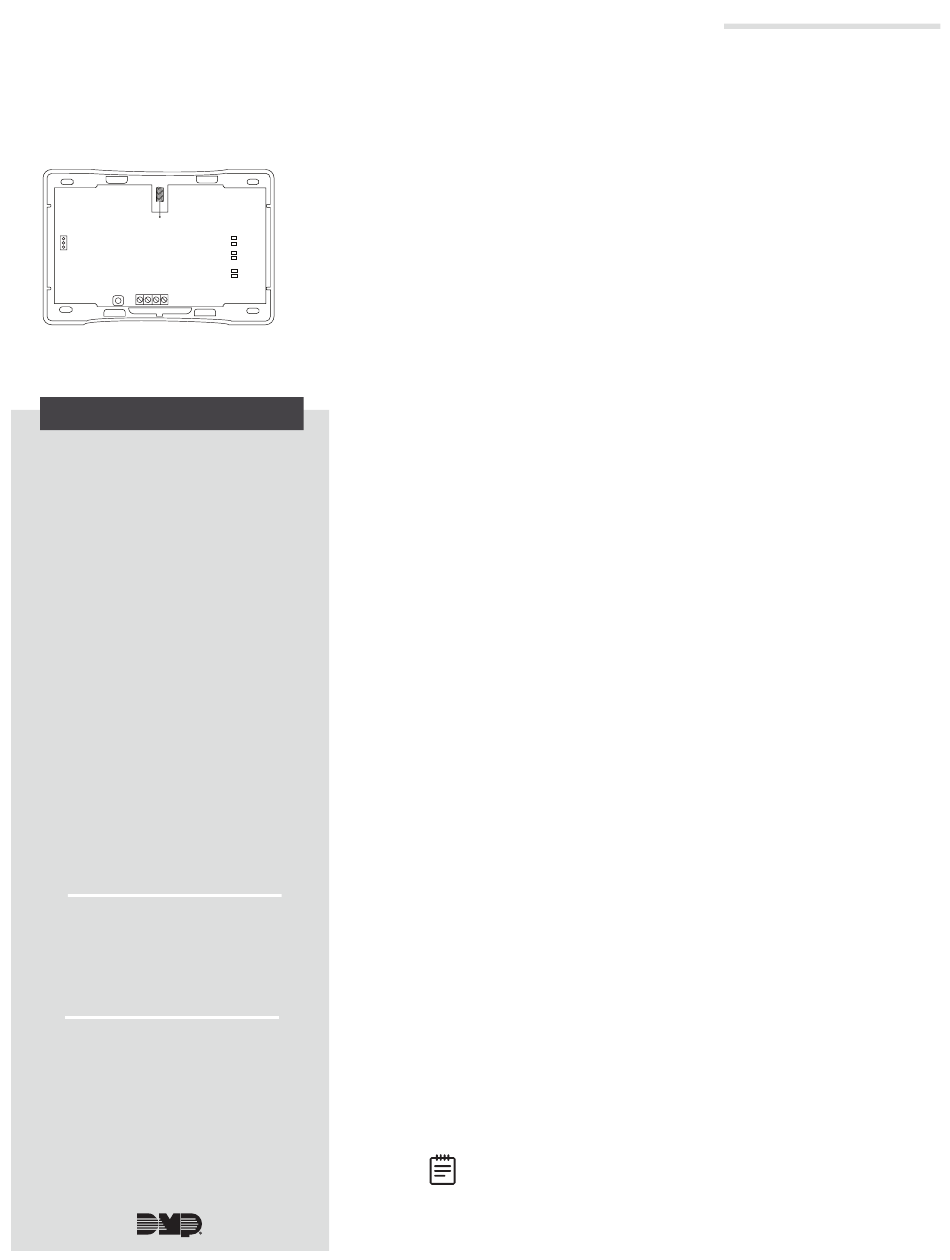

Figure 1: 1100XHE
Encrypted High Power
Wireless Receiver
DESCRIPTION
The 1100XHE Encrypted High Power
Wireless Receiver provides up to
100 wireless zones for XR150 Series
panels and up to 500 wireless
zones for XR550 Series
panels. The 1100XHE features
128-bit AES encryption.
The 1100XHE provides two-way,
supervised communication using
900 MHz frequency hopping-
spread-spectrum technology.
The 1100XHE contains additional
transmit and receive amplifiers to
enable 1100 Series operation at
greater distances or harsh building
environments. The additional gain
introduced by this amplification
may inhibit proper communication
with 1100 Series transmitters
located within 4 ft of the receiver.
This distance may be 8 ft when
using the 1122 PIR or 9000 Series
Wireless Keypads.
The 1100XHE is equipped with a
case and wall tamper.
Compatibility
• XR150/XR550 Series Panels
• Encryption requires panel
Version 183 or higher
What is Included?
• One 1100XHE Encrypted
High Power Wireless
Receiver
• Hardware Pack
1
RF RX
RF TX
PANEL RX
PANEL TX
STATUS
PWR
2
3
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
1. Reset the panel.
2. At a keypad, enter 6653 (PROG) to access the
PROGRAMMER menu.
3. In SYSTEM OPTIONS, program a HOUSE CODE between
1 and 50. See House Code Explained for more information.
At the 1100 ENCRYPTION prompt, select ALL to only add
4.
encrypted wireless devices to the system. Select BOTH to
allow both encrypted and non-encrypted wireless devices
to be programmed.
5. The default passphrase appears at ENTER PASSPHRASE.
Press CMD to keep the default. Press any select key or
area to change the passphrase and enter an 8-character
hexadecimal string (0-9, A-F).
6. In ZONE INFORMATION, enter a ZONE NAME and press
CMD.
Select the ZONE TYPE and press CMD.
7.
8. At NEXT ZN?, select NO.
9. Select YES when WIRELESS? displays.
10. Enter the eight-digit SERIAL# and press CMD.
11. Enter the SUPRVSN TIME and press CMD.
12. At the NEXT ZN? prompt, select YES to finish
programming or select NO for additional programming
options.
MOUNT THE 1100XHE
Select a Location
When selecting a location to mount the 1100XHE, keep in mind
that the receiver should be centrally located between the
1100 Series transmitters used in the installation. The 1100XHE
can be mounted up to 500 ft (150 m) from the panel using
22 AWG or 1000 ft (300 m) using 18 AWG. Be sure to mount
the receiver away from large metal objects because it may
impair the receiver's performance. Do not use shielded wire
between the panel and receiver.
Mount the 1100XHE
1. Remove the cover from the plastic housing.
2. Use the included #6 screws to secure the 1100XHE to
the wall. See Figure 2 for mounting hole locations.
WIRE THE 1100XHE
Connect the red, yellow, green, and black wires to the PANEL
terminal on the 1100XHE and connect the other to the XBUS
terminal on the panel. See Figure 2.
Note: The receiver can't operate if it's connected to the
keypad bus.
