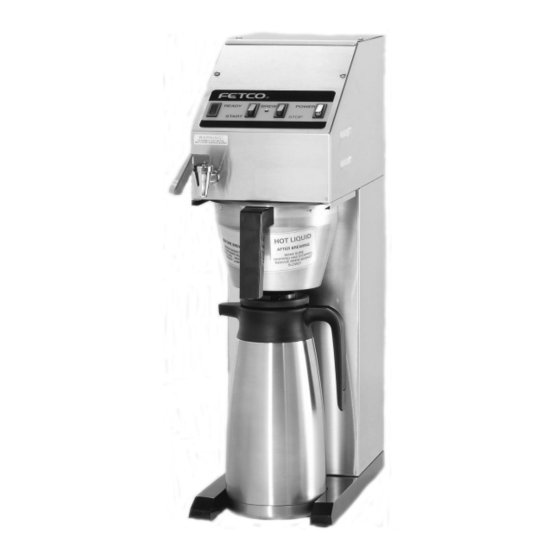

Fetco CBS-2018 User Manual
Fetco cbs-2018: users guide
Hide thumbs
Also See for CBS-2018:
- Technical bulletin (2 pages) ,
- How to use (1 page) ,
- Technical bulletin (1 page)
Advertisement
Table of Contents
www.fetco.com
Contact Information ..................................................2
Description & Features .............................................2
Specifications............................................................2
Requirements........................................................2
Weights and Capacities ........................................2
Dimensions & Utility Connections.............................3
Installation.................................................................4
FETCO®, and EXTRACTOR® are trademarks or trade names of Food Equipment Technologies Company.
© 2006 Food Equipment Technologies Company
User's Guide
Table of Contents
Operating Instructions ..............................................6
Cleaning & Maintenance ..........................................6
Programming ............................................................7
Error Codes...........................................................7
Wiring Diagrams .......................................................8
Parts .......................................................................10

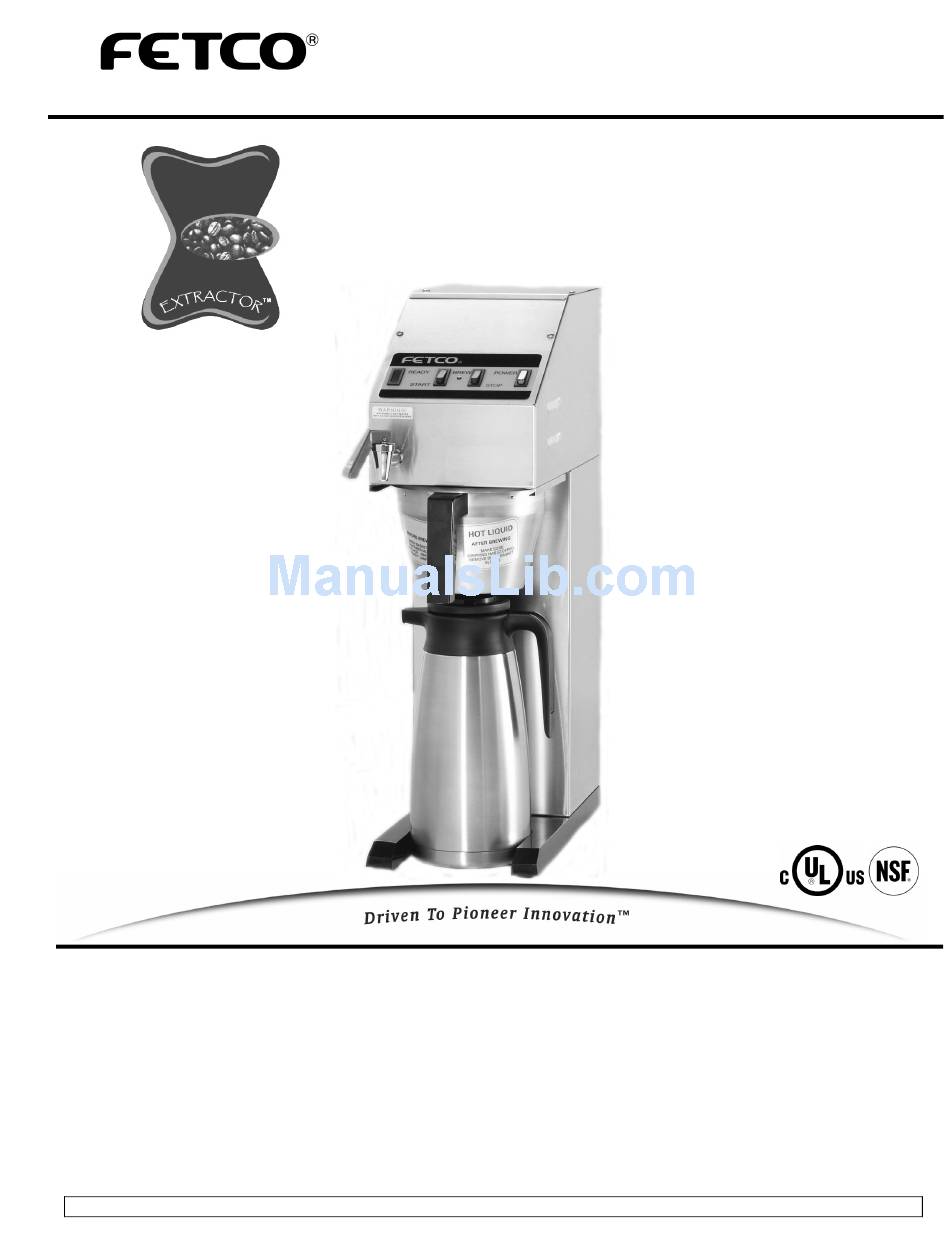

Model CBS-2018
Part # P017
Rev. March 28, 2006
Advertisement
Table of Contents
Related Manuals for Fetco CBS-2018
Summary of Contents for Fetco CBS-2018
-
Page 1: Table Of Contents
Weights and Capacities ...2 Electrical Configuration and Brewing Efficiency ...3 Dimensions & Utility Connections...3 Installation...4 FETCO®, and EXTRACTOR® are trademarks or trade names of Food Equipment Technologies Company. © 2006 Food Equipment Technologies Company User’s Guide Model CBS-2018 Table of Contents Operating Instructions ...6... -
Page 2: Contact Information
Food Equipment Technologies Company 600 Rose Road Lake Zurich • IL • 60047-0429 • USA Internet: www.fetco.com • Patented Intermittent Spray Over Technology During the brew cycle, the brewing water pulses on and off, providing complete control of contact time and extraction. -
Page 3: Electrical Configuration And Brewing Efficiency
Electrical Configuration and Brewing Efficiency US & Canada Electrical Heater Config. Code Configuration E15015 (1.5 ltr) 1 X 1500 watt E18015 (1.8 ltr) E15025 (1.5 ltr) 1 X 2100 watt E18025 (1.8 ltr) E15035 (1.5 ltr) 1 X 2700 watt E18035 (1.8 ltr) E15055 (1.5 ltr) 1 X 3700 watt... -
Page 4: Installation
Here are the key points to consider before installation: Electrical: All FETCO brewers require NEUTRAL. Ground is not an acceptable substitute. Installation without neutral may cause damage to the electronic components. The wiring diagram is located in this manual and on the inside of the cover. - Page 5 5. Electrical connections must be secured in-place within the unit to meet national and local standards. 6. Finally, connect the power wires to the unit. Models rated for 120 VAC are factory equipped with a 120 VAC cord and plug rated at either 15 amps or 20 amps, depending on the version ordered. Models rated for 120V/208-240V have only a terminal block for connecting the incoming power wires.
-
Page 6: Operating Instructions
Optional Setting: Brew Temperature Protection The CBS-2018 is factory set so that it cannot brew unless the water is at the programmed brewing temperature (the green “ready” light must be on). This may be changed to allow brewing at any temperature. -
Page 7: Programming
Turn the power switch off. Remove the brewer’s rear cover. Turn the power switch on. Hold the SET button for 5 seconds, until the display reads SET. Next, the display will show the software version Press SET. The first parameter number will be displayed briefly, followed by the current setting. -
Page 8: Wiring Diagrams
Wiring Diagrams 120 VAC Versions... - Page 9 120/208-240 VAC Versions...
-
Page 10: Parts
Parts Figure 1 – Main Assembly DWG 701039-001... - Page 11 53071 SINGLE SHOT 230 F THERMOSTAT (TRIAC VER.) 84001 #6 -32 S.S. HEX NUT 401194 WIR.DIAGRAM CBS-2018 120 VAC, 1PH, 2 WIRE+GRD 401195 WIR. DIAGRAM CBS-2018 120/208-240 VAC, 1PH, 3 WIRE + GRD 22047 TANK INSULATION 1/2'' X 21 3/4'' X 7.0" CBS-2018/18 K023 29007 NYLON FINGER NUT, 4-40 31096 3/8MPT X 1/4' FLARE MALE 90 DEG.
- Page 12 82121 SCREW #4-40 X 1/4" FLAT HEAD PHILLIPS 29006 NYLON FINGER NUT, #6 402010 ELECTRIC HARNESS CBS-2018 01602 ADAPTER 120 VAC/15 A, CBS-2018 01603 ADAPTER 120/208-240 VAC, CBS-2018 01604 ADAPTER 120/208-240 VAC, CBS-2018 82122 SCREW, #4-40 X 1/4 S.S. ROUND HEAD PHIL.
- Page 13 Figure 2 – Tank Assembly ITEM # PART NO DESCRIPTION 04036 TANK WELDMENT (BODY ONLY) 31036 1/4" COMP. x 1/4" MPT CONN. 31129 3/8" COMP. x 1/4" MPT CONN. 31135 90DEG. ELBOW 5/16" HOSE ID x 1/8" MPT 83041 FLAT WASHER .875 O.D. x .412 I.D. 31117 1/4"...
- Page 14 Figure 3 – Spray Housing Assembly ITEM # PART NO DESCRIPTION 82112 #8 X 3/4'' PAN HD. PHIL. T.S. 18-8 S.S. SCREW 57047 COIL ASSY. REPAIR KIT, DSV-11, 120 VAC 57071 COIL ASSY. REPAIR KIT, DSV-11, 240 VAC (EXPORT VERSION ONLY) 57073 VALVE REBUILD KIT, DSV11 102082 SPRAY HOUSING ASSY.
- Page 15 Figure 4 – Brew Basket Assembly, 11 ¼” X 3 ¾”, Part # 101151 ITEM PART # DESCRIPTION 09018 WIRE INSERT, 11 ¼ ” X 3 ¾ ” 04064 BREW CONE 23074 BREW BASKET HANDLE, BLACK 82118 HANDLE SCREW 46011 WARNING LABEL F007 PAPER FILTERS, 11 ¼...
