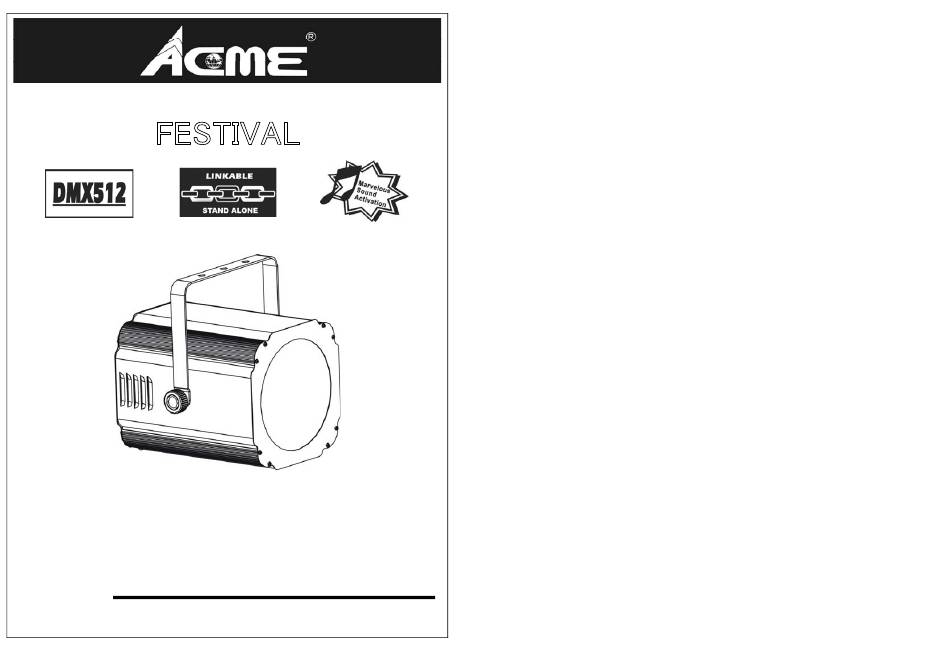

FESTIVAL TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. How To Set The Fixture 4. How To Control The Fixture 5. DMX 512 Configuration 6. DMX 512 Connections 7. Troubleshooting 8. Fixture Cleaning User Manual Please read the instructions carefully before use... -
Page 2: Technical Specifications
1. Safety Introductions Possibly hazardous optical radiation emitted from this product. For power supply, if the Voltage is 230V, do not connect in series much more Please read the instructions carefully which includes important than 16 units, use another mains supply for next 16 units. If the Voltage is information about the installation, operation and maintenance. -
Page 3: How To Set The Fixture
Only for remote control: By connect to the 1/4’’ microphone jack to control the unit for 3. How To Set The Fixture Stand by, Function and Mode function. DMX output: For DMX512 link, use 3-pin XLR plug cable to link the next unit. 3.1 Control Panel DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal Mains output: Connect to supply mains power for the next unit. - Page 4 DMX 512 Address Setting Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the address has been selected, press ENTER button to setup or automatically exit menu mode without any change after one minute.
-
Page 5: How To Control The Fixture
Sound mode Display Inverse Press MENU button until is blinking on the display. Use DOWN and UP button to Press the MENU button up to when the is shown on the display. Pressing ENTER select (normal) or (inverse), press ENTER button to setup. Back to the button, Use DOWN and UP button to select the (sound on) or (sound off). -
Page 6: Dmx512 Configuration
4.1 Master/Slave Built In Preprogrammed Function button and the display will blink. Use DOWN and UP button to change the DMX512 address. By linking the units in master/slave connection, the first unit will control the other units to Once the address has been selected, press and keep ENTER button pressed up to when give an automatic, sound activated, synchronized light show. -
Page 7: Dmx512 Connections
6. DMX512 Connections 7. Troubleshooting The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. -
Page 8: Fixture Cleaning
8. Fixture Cleaning EC - Declaration of Conformity The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. We declare that our products (lighting equipments) comply with the following Clean with soft cloth using normal glass cleaning fluid.
