If you plan on building your own extension cables, you must use well shielded cable and you cannot use twisted-pair cable. You
can order custom length RS-232 extension cables from Global Computer Supplies - phone 800-845-6225, part number
ZCC4912X. Many other companies sell 10 ft., 25 ft., and 50 ft. DB9 Extension Cables including Radio Shack.
For all RJ Cable pin numbers, number from left to right
the cable running to the down position

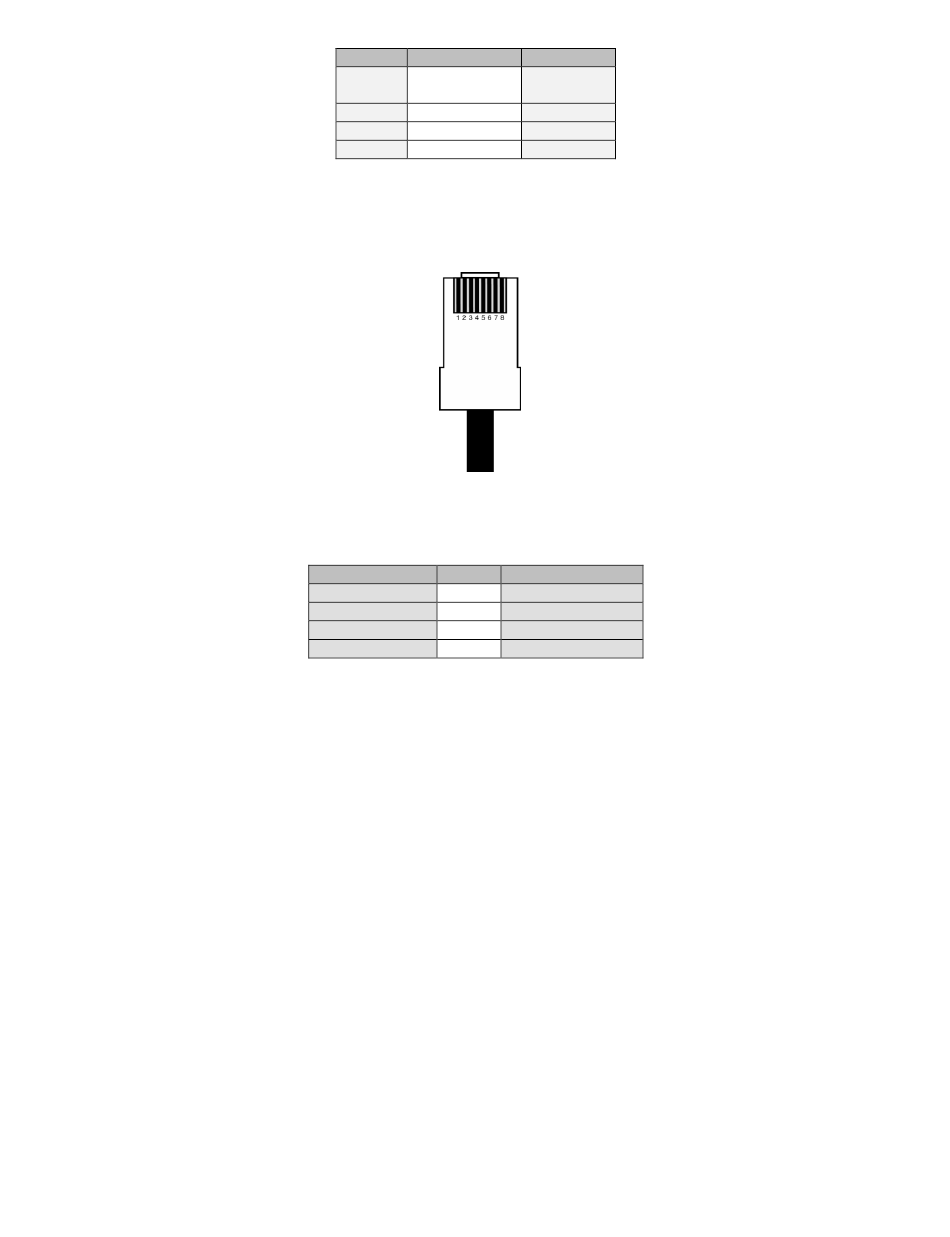

Relay Station RS422 Pin-outs

The RF Relay Stations are connected by twisted pair wire -- use Belden 1227A1, Cat 5 wire or equivalent. The Relay Port on the
Base Station and the Relay Port on the Relay Station are connected with a straight cable using the following pin-outs:
Make a cable with 5-5, 6-6, 2-2, and 3-3 (a straight cable); but, be careful that you select wires so that the 2 wire is in the twisted
pair with the 3 wire, and the 5 wire is in the twisted pair with the 6 wire.
For all RJ Cable pin numbers, number from left to right with the metal pin side of the connector facing you and the cable running
to the down position.
Mod 8 RJ45 Function
Shell
1 (chassis ground)
2 Transmit Data
3 Receive Data
4 Signal Ground
F36 9 pin cable
Base Connector Pin #
Receive Data + 5
Receive Data - 6
Transmit Data + 2
Transmit Data - 3
78
DB 9 Female
Shell
2
3
5
with the metal pin side of the connector facing you and
Relay Connector
Transmit Data +
Transmit Data -
Receive Data +
Receive Data -
