Using the Setup Menu on the RF Terminal

The RF Terminal can be setup via the Terminals' keypad by entering Setup Mode from the main menu. Press the On/Off key.

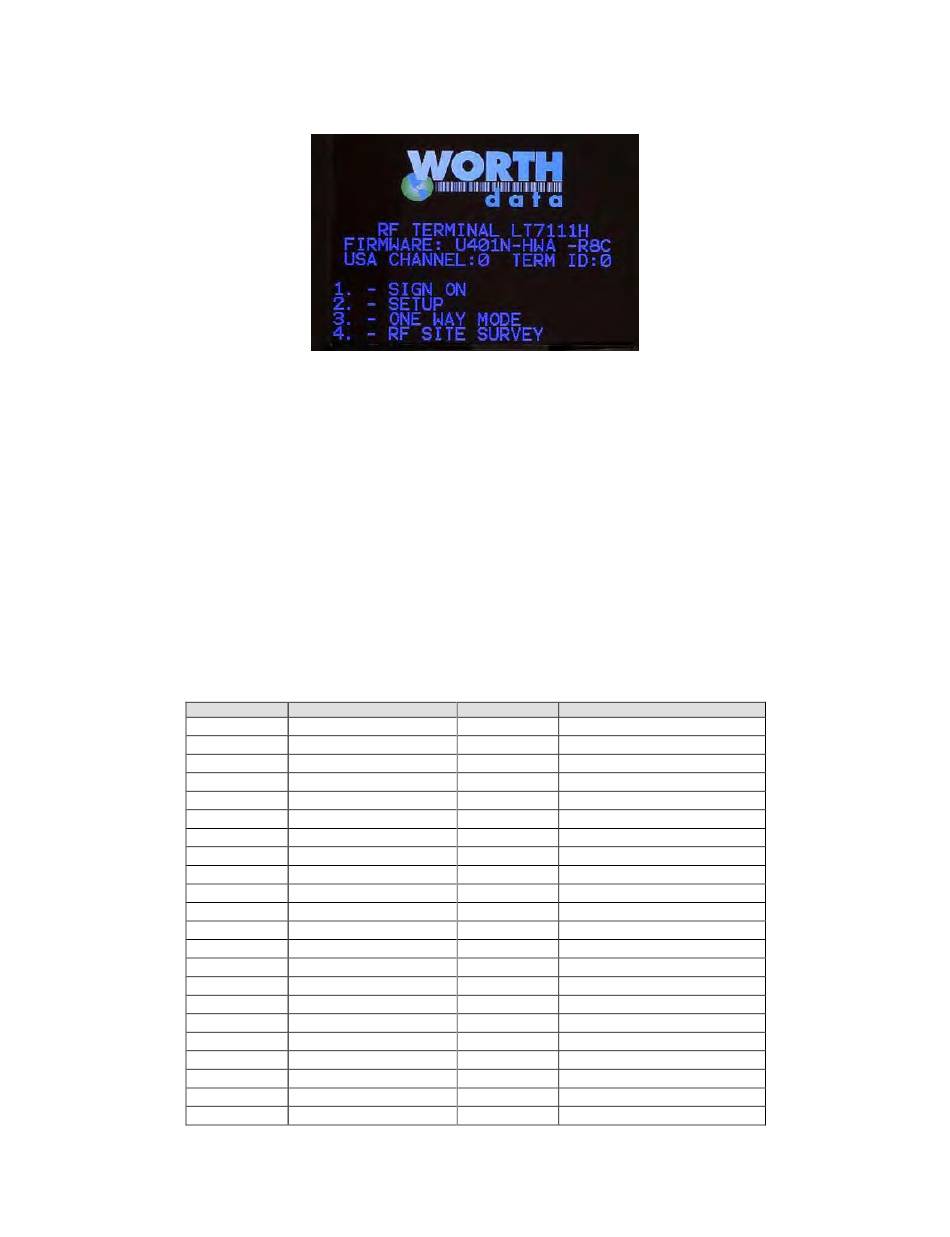

You should now see the MAIN MENU message:
Press the 2 key. The next menu allows you to choose which item to configure:
RF TERMINAL SETUP
RF CONFIGURATION - - - - - - - - - 1
BAR CODE OPTIONS - - - - - - - - - 2
DATE & TIME SETTINGS - - - - - - 3
SPEAKER SETTINGS - - - - - - - - - 4
LASER SETTINGS - - - - - - - - - - - 6
LCD SETTINGS - - - - - - - - - - - - - 7
OTHER SETTINGS - - - - - - - - - - - 8
SYSTEM TOOLS - - - - - - - - - - - - - 9
DONE/EXIT
Select the option you want to set or verify or press 0 or the F1 key to exit back to the MODE MENU.
The groups in the keypad Setup Menu contain the following setup parameters:
Setup Group
RF Setup
1
Bar Codes
2
Date/Time
4
Once you have selected a group to edit, you will see each parameter displayed in the order listed above. Use the next section of
this chapter as a reference for all RF Terminal Setup Parameters.
- - - - - - - - - - - - - - - 0
Parameter
RF Channel
Terminal ID
Security Code
Skip opening screens
Control Keys Only
Auto Check Back
Relay Existence
Beep In Auto Check
Code 3 of 9
UPC-A, EAN 13
UPC-E, EAN 8
Code 128
2 of 5 Codes
Codabar
MSI/ Plessey
Code 93 / Code 11
Databar / RSS / Others
Time
Date
Date Format
Year Output
Shut Down Time
Setup Group Parameter
Speaker Beep Volume
5 Beep Tone
Voice Volume
Keypad Tone
Laser Double Decode
6 4.5 Second Laserbeam
Aiming Dot Duration (LT7101x)
Filter Setting (LT7111x)
LCD 4 Line Legacy Mode
7 6 Line Legacy Mode
Background Color
Text Color
Brightness
Brightness Timeout
Other Preamble
8 Postamble
Characters
Encryption Key
Bluetooth Bluetooth Device List
9
Bluetooth PIN Bluetooth PIN ____
A
