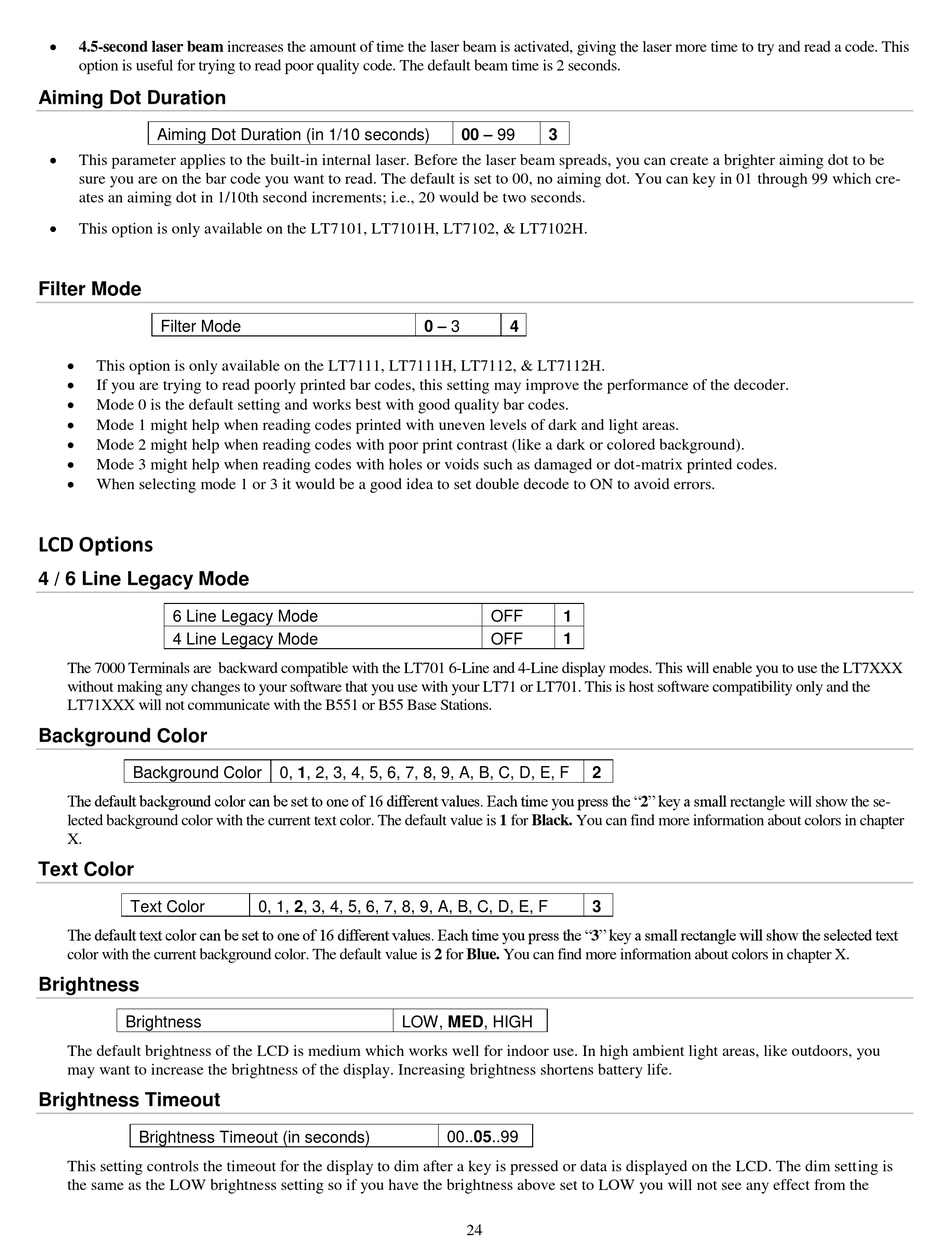

4.5-second laser beam increases the amount of time the laser beam is activated, giving the laser more time to try and read a code. This
option is useful for trying to read poor quality code. The default beam time is 2 seconds.
Aiming Dot Duration
Aiming Dot Duration (in 1/10 seconds)
This parameter applies to the built-in internal laser. Before the laser beam spreads, you can create a brighter aiming dot to be
sure you are on the bar code you want to read. The default is set to 00, no aiming dot. You can key in 01 through 99 which cre-
ates an aiming dot in 1/10th second increments; i.e., 20 would be two seconds.
This option is only available on the LT7101, LT7101H, LT7102, & LT7102H.
Filter Mode
Filter Mode
This option is only available on the LT7111, LT7111H, LT7112, & LT7112H.
If you are trying to read poorly printed bar codes, this setting may improve the performance of the decoder.
Mode 0 is the default setting and works best with good quality bar codes.
Mode 1 might help when reading codes printed with uneven levels of dark and light areas.
Mode 2 might help when reading codes with poor print contrast (like a dark or colored background).
Mode 3 might help when reading codes with holes or voids such as damaged or dot-matrix printed codes.
When selecting mode 1 or 3 it would be a good idea to set double decode to ON to avoid errors.
LCD Options
4 / 6 Line Legacy Mode
6 Line Legacy Mode
4 Line Legacy Mode
The 7000 Terminals are backward compatible with the LT701 6-Line and 4-Line display modes. This will enable you to use the LT7XXX
without making any changes to your software that you use with your LT71 or LT701. This is host software compatibility only and the
LT71XXX will not communicate with the B551 or B55 Base Stations.
Background Color
Background Color
The default background color can be set to one of 16 different values. Each time you press the "2" key a small rectangle will show the se-
lected background color with the current text color. The default value is 1 for Black. You can find more information about colors in chapter
X.
Text Color
Text Color
The default text color can be set to one of 16 different values. Each time you press the "3" key a small rectangle will show the selected text
color with the current background color. The default value is 2 for Blue. You can find more information about colors in chapter X.
Brightness
Brightness
The default brightness of the LCD is medium which works well for indoor use. In high ambient light areas, like outdoors, you
may want to increase the brightness of the display. Increasing brightness shortens battery life.
Brightness Timeout
Brightness Timeout (in seconds)
This setting controls the timeout for the display to dim after a key is pressed or data is displayed on the LCD. The dim setting is
the same as the LOW brightness setting so if you have the brightness above set to LOW you will not see any effect from the
0 – 3
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F
LOW, MED, HIGH
00 – 99
3
4
OFF
1
OFF
1
2
3
00..05..99
24
