SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
OWNER'S MANUAL
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life. Installation and
service must be performed by a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other Flammable vapours and liquids in the vicinity of
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas fitter when installed within the Commonwealth of Massachusetts. Other
Massachusetts code requirements:-Flexible connector must not be longer than 36
inches, shut off valve must be a "T" handle gas cock, only direct vent sealed combustion
products are approved for bedroom/bathrooms, fireplace dampers must be removed or
welded in the open position prior to the installation of a fireplace insert or gas log.

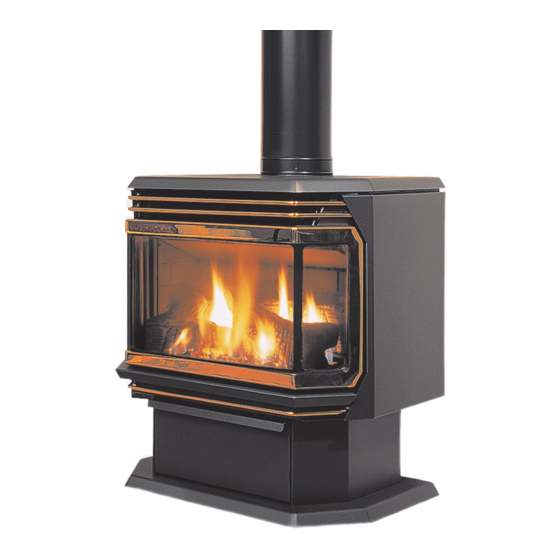

EG28 BV
WHAT TO DO IF YOU SMELL GAS
• Open windows/Extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use any phone in your
building.
• Immediately call your gas supplier from a neighbour's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
This appliance may be installed in an after market permanently
located, manufactured (mobile) home, where not prohibited by
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.
WARNING
FOR YOUR SAFETY
this or any other appliance.
B Y : S H E R W O O D I N D U S T R I E S L T D
local codes.
EG28-121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG28 BV and is the answer not in the manual?

Questions and answers

Summary of Contents for Enviro EG28 BV

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE EG28 BV B Y : S H E R W O O D I N D U S T R I E S L T D OWNER’S MANUAL...
  • Page 2: Safety Precautions

    Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • To prevent injury, if the pilot or pilot and • All ENVIRO gas-fired appliances must be installed in accordance with their instructions. Carefully read all burners have gone out on their own, open the the instructions in this manual first.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions..................2 Table of Contents...................3 Codes And Approvals..................4 Specifications....................5 Dimensions..................5 Clearances to Combustibles..............5 Preparation For Installation..............5 Initial Installation...................6 Venting....................6 Flue Gas Spill Switch................6 Manufacturer’s General Venting Guidelines...........6 General Venting For The EG40.............6 Termination..................7 Installation Into An Existing Chimney...........7 Straight Vertical Installation..............8 Electrical Requirements...............9 Replacing The Blower................10...
  • Page 4: Codes And Approvals

    This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows: VENTED GAS FIREPLACE HEATER (EG28 BV NG/LPG) TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES...
  • Page 5: Specifications

    Specifications WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. IMENSIONS ��� �������� ������ ��� ��� ��� ��� ���� ��� �� ���� ��� ���...
  • Page 6: Initial Installation

    The ENVIRO incorporates its own internal draft hood, so no additional external draft hood is required. Check periodically that the vent is unrestricted and an adequate draught is present when the unit is in operation.
  • Page 7: Termination

    Initial Installation QUALIFIED INSTALLERS ONLY ERMINATION �� �� ����� ��� The bottom of the vent cap shall extend at least 2 feet (0.61 m) above the highest point ������ ����� ���� ������� ������ ���� of the roof where it passes through and at ������������...
  • Page 8: Straight Vertical Installation

    Initial Installation QUALIFIED INSTALLERS ONLY TRAIGHT ERTICAL NSTALLATION This basic venting configuration shown are rough guidelines only. Follow national and local codes for other installation options. For the best venting performance, we recommend a total vent height in the range of 10 feet (3.0 m) to 30 feet (9.1 m).
  • Page 9: Electrical Requirements

    LECTRICAL EQUIREMENTS The ENVIRO EG40 will operate without electrical power. This model has a millivolt gas control, which uses the pilot flame to generate enough electricity to operate the main burners. The appliance is equipped with a blower and must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE Part 1, SAFETY STANDARDS FOR ELECTRICAL INSTALLATIONS,...
  • Page 10: Replacing The Blower

    Initial Installation EPLACING LOWER 1. Turn the unit off and remove the log set. 2. Remove the burner tray assembly by removing the screw on either side of the tray, between the front and rear burners. Lift the tray out. 3.
  • Page 11: Fuel Conversion

    Initial Installation ONVERSION WARNING: This conversion kit shall be installed by a qualified service technician in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or CO poisoning may result. The qualified service agency is responsible for the proper installation of this kit.
  • Page 12: Gas Line Connection And Testing

    Initial Installation ONNECTION AND ESTING WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a 3⁄8” male NPT fitting.
  • Page 13: Secondary Installation

    If over time, through cleaning and servicing, these embers require replacement, contact the nearest ENVIRO dealer for replacement embers. 1. The embers can be place before or after Figure 12: Step 2 of Log Placement.
  • Page 14 ENVIRO dealer. See Routine Maintenance And Service on how to remove door to clean glass. Figure 16: Log Placement with Embers.
  • Page 15: Operating Instructions

    Operating Instructions FOR YOUR SAFETY READ COMPLETELY BEFORE OPERATING. WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OR LIFE. A) This appliance is equipped with a pilot that must be lit by hand by following these instructions exactly. B) BEFORE LIGHTING smell all around the appliance area for gas, and next to the floor because some gas is heavier than air and will settle on the floor.
  • Page 16: Routine Maintenance And Service

    Depending upon the amount of use, cleaning should be required no more than two or three times per season. To clean the door, use a mild glass cleaner and a soft cloth or a glass cleaner available from your Enviro dealer.
  • Page 17: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution Spark will not light the Defective piezo ignitor. • Check connections to ignitor. pilot after repeatedly • If ignitor connections are good but there is no spark; pressing the spark ignitor replace ignitor. Broken spark electrode. •...
  • Page 18: Parts List

    Parts List Reference Number Part Description Part Number 120°F (49°C) Ceramic Temperature Sensor EC-001 Spill Switch 220°F (121°C) EC-002 SIT Nova Valve NG 50% EC-006 SIT Nova Valve LP 50% EC-007 Thermocouple EC-009 Spark Electrode with Cable EC-011 Thermopile EC-012 Pilot NG with Electrode EC-013 Pilot LP with Electrode...
  • Page 19 Parts List Reference Number Part Description Part Number Pedestal Door EG28-109 Burner Tray Top - LP / NG EG28-116 Pan Burner Tray Top EG28-116A BV Owner’s Manual EG28-121 Cabinet Side Panel EG28-123 BV Stove Top EG28-124 Firebox Baffle EG28-125 Fan Kit EG28-127 BV Top Baffle EG28-132...
  • Page 20: Parts Diagram - Chassis

    Parts Diagram - Chassis �� �� � �� �� �� �� �� �� � � �� �� �� �� � �� EG 28 Body (Chassis) July 2004...
  • Page 21: Parts Diagram - Gas Tray & Door

    Parts Diagram - Gas Tray & Door...
  • Page 22: Warranty

    Warranty Sherwood Industries Ltd. offers a Limited Lifetime Warranty on this gas product. This limited lifetime warranty covers the appliance for a period of seven years from the date of installation. This warranty applies only to the original owner in the original location Covered under the lifetime warranty are Cabinet Sides, Tops, Pedestals, Surround Panels and Chassis and Heat Exchanger.
  • Page 23: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
