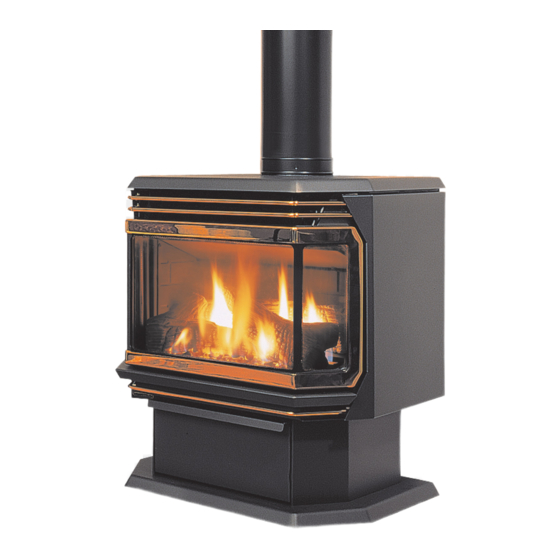

Enviro vented gas fireplace heater
Hide thumbs Also See for EG28 BV:

Advertisement

Quick Links

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
OWNER'S MANUAL
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life. Installation and
service must be performed by a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other Flammable vapours and liquids in the vicinity of
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas fitter when installed within the Commonwealth of Massachusetts. Other
Massachusetts code requirements: Flexible connector must not be longer than 36in., a
shut off valve must be installed; only direct vent sealed combustion products are approved
for bedrooms/bathrooms. A carbon monoxide detector is required in all rooms containing
gas fired direct vent appliances.
EG28 BV
WHAT TO DO IF YOU SMELL GAS
• Open windows/Extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use any phone
in your building.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
This appliance may be installed in an after market
permanently located, manufactured (mobile) home, where
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
WARNING
FOR YOUR SAFETY
this or any other appliance.
B Y : S H E R W O O D I N D U S T R I E S L T D
not prohibited by local codes.
EG28-121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG28 BV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enviro EG28 BV

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE EG28 BV B Y : S H E R W O O D I N D U S T R I E S L T D OWNER’S MANUAL...
  • Page 2: Safety Precautions

    Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • To prevent injury, if the pilot or pilot and • All ENVIRO gas-fired appliances must be installed in accordance with their instructions. Carefully read all burners have gone out on their own, open the the instructions in this manual first.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions....................2 Table of Contents....................3 Codes And Approvals..................4 Specifications....................5 Dimensions....................5 Rating Label Location................5 Operating Instructions..................6 Lighting Instructions................6 Adjusting The Venturies................7 Normal Sounds During Operation............7 Maintenance and Service...................8 Opening The Door..................8 Cleaning The Glass ................8 To Replace Door..................8 Cleaning The Inside Of The Firebox............8 Cleaning Plated Surfaces................9 Blower Removal..................9...
  • Page 4: Codes And Approvals

    This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows: VENTED GAS FIREPLACE HEATER (EG28 BV NG/LPG) TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES...
  • Page 5: Specifications

    Specifications IMENSIONS Shipping Weight 210 lbs (95 kg) 11" (279 mm) 4" (102 mm) 19" " (483 mm) (699 mm) 22" (559 mm) Figure 1: EG28 Exterior Dimensions. ATING ABEL OCATION The rating label is found inside the right cabinet side panel.
  • Page 6: Operating Instructions

    Operating Instructions FOR YOUR SAFETY READ COMPLETELY BEFORE OPERATING. IGHTING NSTRUCTIONS CAUTION: ATTENTION: Hot while operating. Do not touch, severe burns may result. Keep children, clothing, furniture, gasoline or other flammable vapors away. CAUTION: Do not operate this fireplace with the glass removed, cracked or broken.
  • Page 7: Adjusting The Venturies

    Operating Instructions Thermopile Thermocouple Figure 3: Pilot Burning. Figure 4: Gas Valve. DJUSTING ENTURIES • Remove the ash shelf by undoing the screw at each end, pull shelf towards you. • Remove one screw from the cover plate located below the ash shelf. Loosen the other screw (do not remove) swing the cover plate out of the way and tighten screw down to hold it in place.
  • Page 8: Maintenance And Service

    Maintenance and Service Periodically check to ensure that your direct vent system is clean. Periodically check the pilot and burner. Check to see that all the burner ports are clean and clear. Check the pilot head for blockage. Check to ensure the pilot flame is blue with no or very small yellow tips. PENING Turn unit off and wait until the appliance has cooled down.
  • Page 9: Cleaning Plated Surfaces

    Maintenance and Service LEANING LATED URFACES It is important to note that fingerprints and other marks can leave a permanent stain on plated finishes. To avoid this, give the face a quick wipe with denatured alcohol on a soft cloth BEFORE lighting the fireplace.
  • Page 10: Fuel Conversion

    Maintenance And Service ONVERSION TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY Please read and understand these instructions before installing. Warning: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 11 Maintenance And Service Convert the SIT gas valve: a) Remove the black protection cap from the HI/LO knob by hand shown in Figure 9. b) Insert a ” or 4 mm Allen wrench into the hexagonal key-way of the screw (see Figure 10), rotate it counter-clockwise until it is free and extract it.
  • Page 12: Initial Installation

    Initial Installation QUALIFIED INSTALLERS ONLY WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. REPARATION NSTALLATION • Remove the packaging from the appliance, and check to make sure there is no damage. If damage is found, please report it to both the carrier and your dealer as soon as possible.
  • Page 13: Venting

    Initial Installation QUALIFIED INSTALLERS ONLY ENTING This model must have a vent opening in the rear of the unit. Confirm this and also check that the label on the right side panel door states “Vented Room Heater”. WARNING: This appliance has been designed to operate by drawing combustion air and dilution air from the room.
  • Page 14: Termination

    Initial Installation QUALIFIED INSTALLERS ONLY ERMINATION �� �� ����� ��� The bottom of the vent cap shall extend ������ ����� ���� at least 2 feet (0.61 m) above the highest ������� ������ ���� point of the roof where it passes through ������������...
  • Page 15: Straight Vertical Installation

    Initial Installation QUALIFIED INSTALLERS ONLY TRAIGHT ERTICAL NSTALLATION This basic venting configuration shown are rough guidelines only. Follow national and local codes for other installation options. For the best venting performance, we recommend a total vent height in the range of 10 feet (3.0 m) to 30 feet (9.1 m).
  • Page 16: Electrical Requirements

    • The thermostat connects to the two purple wires in ������� ������ �� ����� ����� the harness Figure 17: EG28 BV Wiring Diagram. • Control panel light uses a 7 Watt max. bulb • If the unit is installed in a Mobile Home it must be connected to a grounding rod.
  • Page 17: Gas Line Connection And Testing

    Initial Installation ONNECTION AND ESTING WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a 3⁄8”...
  • Page 18: Secondary Installation

    Secondary Installation NSTALLATION OF ET AND MBERS The placement of the logs is not arbitrary. they positioned incorrectly, the flames can be “pinched” and will not burn correctly. The burner come with five (5) locator pins and two (2) resing areas, which make alignment easier.
  • Page 19 Secondary Installation 3. Place the log set into the firebox. Locate each log by seating it down onto the burner tray support pins. Resting Areas for Follow Figures 11 to 16 proper log Center Log placement. 4. Upon the first light up, watch for ignition to ALL burner ports.
  • Page 20: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution The main burner The gas valve may not be on. • Check that the gas control knob is in the “ON” position. does not ignite Thermostat is not calling for • Adjust the thermostat several degrees above ambient temperature. when called for.
  • Page 21: Parts List

    Parts List Reference Part Description Part Number Number 120°F (49°C) Ceramic Temperature Sensor EC-001 Spill Switch 220°F (121°C) EC-002 Thermocouple EC-009 Spark Electrode with Cable EC-011 Thermopile EC-012 Pilot NG with Electrode EC-013 Pilot LP with Electrode EC-014 Fully Assembled Pilot NG EC-015 Fully Assembled Pilot LP EC-016...
  • Page 22 Parts List Reference Part Description Part Number Number Burner Tray Top - LP / NG EG28-116 Pan Burner Tray Top EG28-116A BV Owner’s Manual EG28-121 Cabinet Side Panel EG28-123 BV Stove Top EG28-124 Firebox Baffle EG28-125 Fan Kit EG28-127 BV Top Baffle EG28-132 Wire Channel EG28-139...
  • Page 23: Parts Diagram - Chassis

    Parts Diagram - Chassis �� �� � �� �� �� �� �� �� � � �� �� �� �� � �� EG 28 Body (Chassis) April 2006...
  • Page 24: Parts Diagram - Gas Tray & Door

    Parts Diagram - Gas Tray & Door...
  • Page 25: Warranty

    The warranty does not cover removal and re-installation costs. Sherwood Industries Ltd. reserves the right to repair or to replace the defective product. The shipping costs are to be paid by the consumer. All warranties by the manufacture are set forth herein and no claim shall be made against the manufacturer on any oral warranty or representation.
  • Page 26: Installation Data Sheet

    � NATURAL GAS (NAT) PROPANE(LPG) _________________________________________ INLET GAS PRESSURE:_________in wc PHONE:___________________________________ MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam. INSTALLER’S SIGNATURE: _________________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.envirofire.biz April 20, 2006 C-11099...
