SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
OWNER'S MANUAL

WHAT TO DO IF YOU SMELL GAS

• Open windows/extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use
any phone in your building.
• Immediately call your gas supplier from
a neighbour's phone.
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Installation and service must be performed by a qualified installer, service
Do not store or use gasoline or other flammable vapours and liquids in the
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas fitter when installed within the Commonwealth of Massachusetts. Other
Massachusetts code requirements: Flexible connector must not be longer than 36in, shut
off valve must be a "T" handle gas cock; only direct vent sealed combustion products are
approved for bedrooms/bathrooms; fireplace dampers must be removed or welded in the
open position prior to the installation of a fireplace insert or gas log.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Follow the gas
WARNING
agency or the gas supplier.
FOR YOUR SAFETY
vicinity of this or any other appliance.

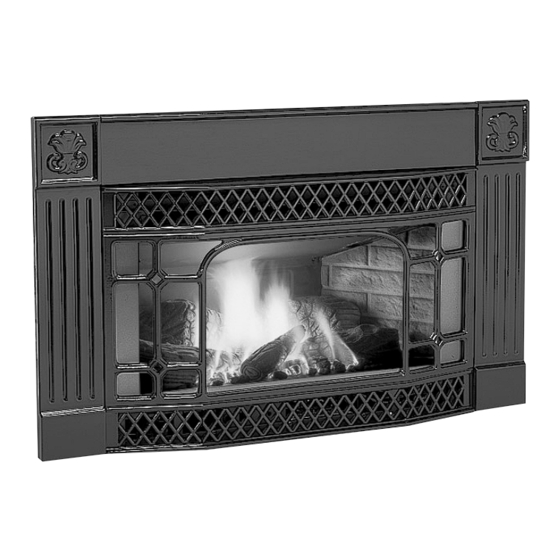

FOCUS
B Y : S H E R W O O D I N D U S T R I E S L T D
This appliance may be installed
in an after market permanently
located, manufactured
(mobile) home, where not
prohibited by local codes.
This appliance is only for use
with the type of gas indicated
on the rating plate. This
appliance is not convertible for
use with other gases, unless a
certified kit is used.
EG31-118

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Focus EG31-118 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enviro Focus EG31-118

  • Page 1: What To Do If You Smell Gas

    SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE FOCUS B Y : S H E R W O O D I N D U S T R I E S L T D OWNER’S MANUAL WHAT TO DO IF YOU SMELL GAS This appliance may be installed...
  • Page 2: Safety Precautions

    Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed • To prevent injury, do not allow anyone who is in accordance with their instructions. Carefully read all unfamiliar with the stove to operate it.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions....................2 Table of Contents....................3 Codes And Approvals....................4 Specifications......................5 Rating Label Location...................5 Dimensions And Clearances To Combustibles..........5 B-Vent Model....................6 Direct Vent Model..................6 Automatic Flue Gas Spill Switch..............6 Operating Instructions.....................7 Before lighting.....................7 Pilot Lighting Instructions................7 Turn Off Gas To Appliance................8 Removing Burner Controls................8 Maintenance And Service..................9 Routine Maintenance...................9...
  • Page 4: Codes And Approvals

    2,000 feet (810 m), input should be reduced 4% for each 1,000 feet (405 m) above sea level. This ENVIRO FOCUS Fireplace: • Has been certified for use with either natural or propane gas. (See rating label.) • Is not for use with solid fuels.
  • Page 5: Specifications

    Specifications WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. IMENSIONS LEARANCES OMBUSTIBLES Mantle pillar to glass door - 9” (22.8 cm) From floor to 8” wide mantle - 38”...
  • Page 6: B-Vent Model

    Specifications WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. ODEL WARNING: This appliance has been designed to operate by drawing combustion air and dilution air from the room.
  • Page 7: Operating Instructions

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE. EFORE LIGHTING This appliance is equipped with a pilot, which must be lit by following these instructions exactly: A) BEFORE LIGHTING, smell around the appliance area for gas.
  • Page 8: Turn Off Gas To Appliance

    After the unit has gone through the first burn turn the unit off including the pilot, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer. EMOVING...
  • Page 9: Maintenance And Service

    • Install the new piece of glass with the large bulb in the gasket tape against the unit. Place the joint in the tape in a bottom corner. Close door. Glass must be purchased from an Enviro dealer. No substitute materials are allowed. Warning: Clearances must be sufficient to allow access for maintenance and service Warning: Failure to position the parts in accordance with this manual, or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
  • Page 10: Removing Burner Controls

    Maintenance And Service EMOVING URNER ONTROLS 1. Shut off gas supply to appliance. 2. Remove surround panels by pulling up, then out. Disconnect gas line from the valve. Disconnect harness at connector on side of unit. 3. Open the door and remove the log. Remove the burner tray assembly by removing the TWO screws in the center of the burner.
  • Page 11: Initial Installation

    ENTING IREPLACE NSERTS The ENVIRO FOCUS may be installed and vented into any solid fuel fireplace that has been installed in accordance with the National, Provincial/State and local building codes and has been constructed of non-combustible materials. An approved chimney liner and rain cap must be used. A throat connector or flashing must be installed to ensure a tight seal, top performance, safety and efficiency.
  • Page 12: Preparing Your Focus For Installation

    Initial Installation QUALIFIED INSTALLERS ONLY REPARING OCUS NSTALLATION • Remove the packaging from the appliance and surround panels; check to make sure there is no damage. Carefully check the glass door. Do not use the unit if it is damaged. In the event damage is found, please report it to both the courier and your dealer as soon as possible.
  • Page 13: Fuel Conversion

    Installation QUALIFIED INSTALLERS ONLY ONVERSION Warning: A qualified service technician, in accordance with the manufacturer’s instructions as well as all applicable authority having jurisdiction, shall install this conversion kit. If the information in these instructions is not followed exactly, a fire, explosion or CO poisoning, may result.
  • Page 14: Electrical Requirements

    Initial Installation QUALIFIED INSTALLERS ONLY LECTRICAL EQUIREMENTS The Focus will operate without electrical power. This model has a Millivolt gas control which uses the pilot flame to generate enough electricity to operate the main burners. This appliance when equipped with a blower, must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE...
  • Page 15: Converting A Direct Vent Fireplace To A B-Vented Fireplace

    Initial Installation QUALIFIED INSTALLERS ONLY A B-V ONVERTING IRECT IREPLACE ENTED IREPLACE Parts required for conversion; 1-300°F (149°C) manual reset spill switch and wires 1-Draft hood (4’’ chimney connection) 300° Spill 2-Air channels Switch 1-Draft hood diverter 1. Remove the chimney connector, fresh air cover plates and draft hood cover plate.
  • Page 16: Gas Line Connection

    Initial Installation QUALIFIED INSTALLERS ONLY ONNECTION Warning: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. Gas Line Connection: •This fireplace is equipped with a certified flexible pipe located on the right side of the unit, terminating in a 3⁄8” male NPT fitting.
  • Page 17: Secondary Installation

    Secondary Installation NSTALLING ONTROLLER This is for installing the fan controller when using the cast iron faceplate and bay door assembly. Install the fan controller in the control panel already provided on this unit (see right). Cut one wire tie so that the wires can be dressed Orange and white wire correctly through the body of the unit.
  • Page 18: Removing And Installing The Brick Panel

    , contact your nearest Enviro dealer. IMPORTANT: Upon the first light up after installing logs and embers, watch for ignition to ALL burner ports. If a long delay is noted wait for the appliance to cool down: •Open the front door of the appliance...
  • Page 19: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution Spark will not arc to the Defective piezo ignitor • Check connections to ignitor pilot after repeatedly • If ignitor connections are good but no spark, replace pressing the spark ignitor ignitor. Broken spark electrode •...
  • Page 20: Parts List

    Parts List Part # Part Description Part # Part Description EG31-075 Burner Switch Bracket 30-030 Extension Knob (Pilot) 30-031 Extension Knob (HI-LO) EG31-089 Window Channel Tape 30-034 Relief Door & Gasket EG31-090 1 Piece Glass With Tape 50-343 Blank Orifice #73 EG31-091 Steel Bay 3 Pieces Glass Set with Tape 50-506 Rear Log...
  • Page 21: Cast Parts List

    Cast Parts List 30-036 Cast surround only - Painted 50-402 Cast front only (no surround, glass, valve door, or clip-on) - Painted 30-035AW Cast surround only - Antique White 50-403 Cast front only (no surround, glass, valve 30-035DB Cast surround only - Diamond Black door, or clip-on) - Antique White 30-035IR Cast surround only - Inferno Red...
  • Page 22: Parts Diagram - Body

    Parts Diagram - Body...
  • Page 23: Parts Diagram - Surrounds

    Parts Diagram - Surrounds...
  • Page 24: Parts Diagram- Cast Bay Front

    Parts Diagram- Cast Bay Front...
  • Page 25: Warranty

    Warranty Sherwood Industries Ltd. offers a Limited Lifetime Warranty on this gas product. This Limited Lifetime Warranty covers the appliance for a period of seven years from the date of installation. This warranty applies only to the original owner in the original location. Covered under the lifetime warranty are: the surround, the chassis and the heat exchanger.
  • Page 26: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
