SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
OWNER'S MANUAL
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life. Installation and
service must be performed by a qualified installer, service agency or the gas supplier.
FOR YOUR SAFETY: Do not store or use gasoline or other Flammable vapours and
liquids in the vicinity of this or any other appliance.
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas fitter when installed within the Commonwealth of Massachusetts. Other
Massachusetts code requirements: Flexible connector must not be longer than 36in., a
shut off valve must be installed; only direct vent sealed combustion products are approved
for bedrooms/bathrooms. A carbon monoxide detector is required in all rooms containing
gas fired direct vent appliances.

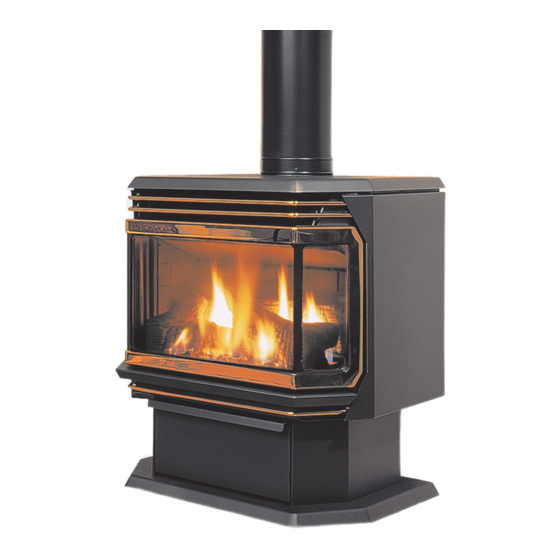

EG28 BV
B Y : S H E R W O O D I N D U S T R I E S L T D
WHAT TO DO IF YOU SMELL GAS
• Open windows/Extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use any
phone in your building.
• Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
This appliance may be installed in an after market
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
WARNING
certified kit is used.
EG28-121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG28 BV and is the answer not in the manual?

Questions and answers

Summary of Contents for Enviro EG28 BV

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. EG28 BV B Y : S H E R W O O D I N D U S T R I E S L T D OWNER’S MANUAL...
  • Page 2: Safety Precautions

    Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • To prevent injury, if the pilot or pilot and • All ENVIRO gas-fired appliances must be installed in accordance with their instructions. Carefully read all burners have gone out on their own, open the the instructions in this manual first.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions....................2 Table of Contents....................3 Codes And Approvals..................4 Specifications....................5 Dimensions....................5 Rating Label Location................5 Operating Instructions..................6 Lighting Instructions................6 Adjusting The Venturies................7 Normal Sounds During Operation............7 Maintenance and Service...................8 Opening The Door..................8 Cleaning The Glass ................8 To Replace Door..................8 Cleaning The Inside Of The Firebox............8 Cleaning Plated Surfaces................9 Blower Removal..................9...
  • Page 4: Codes And Approvals

    This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows: VENTED GAS FIREPLACE HEATER (EG28 BV NG/LPG) TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES...
  • Page 5: Specifications

    Specifications imensions Shipping Weight 210 lbs (95 kg) 11" (279 mm) 4" (102 mm) 19" " (483 mm) (699 mm) 22" (559 mm) Figure 1: EG28 Exterior Dimensions. ating abeL ocation The rating label is found inside the right cabinet side panel.
  • Page 6: Operating Instructions

    Operating Instructions FOR YOUR SAFETY READ COMPLETELY BEFORE OPERATING. ighting nstRuctions CAUTION: ATTENTION: Hot while operating. Do not touch, severe burns may result. Keep children, clothing, furniture, gasoline or other flammable vapors away. CAUTION: Do not operate this fireplace with the glass removed, cracked or broken.
  • Page 7: Adjusting The Venturies

    Operating Instructions Thermopile Thermocouple Figure 3: Pilot Burning. Figure 4: Gas Valve. Djusting entuRies • Remove the ash shelf by undoing the screw at each end, pull shelf towards you. • Remove one screw from the cover plate located below the ash shelf. Loosen the other screw (do not remove) swing the cover plate out of the way and tighten screw down to hold it in place.
  • Page 8: Maintenance And Service

    The glass in this appliance is ceramic. If the glass is damaged or broken a factory door with glass replacement must be used. Remove the door with glass, a new door assembly must be purchased from an ENVIRO dealer (part #: EG28-103). Do not use a substitute materials; it will void the warranty.
  • Page 9: Cleaning Plated Surfaces

    Maintenance and Service Leaning LateD uRfaces It is important to note that fingerprints and other marks can leave a permanent stain on plated finishes. To avoid this, give the face a quick wipe with denatured alcohol on a soft cloth BEFORE lighting the fireplace.
  • Page 10: Fuel Conversion

    Maintenance And Service onVeRsion TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY Please read and understand these instructions before installing. Warning: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 11 Maintenance And Service Convert the SIT gas valve: a) Remove the black protection cap from the HI/LO knob by hand shown in Figure 9. b) Insert a ” or 4 mm Allen wrench into the hexagonal key-way of the screw (see Figure 10), rotate it counter-clockwise until it is free and extract it.
  • Page 12: Initial Installation

    Initial Installation QUALIFIED INSTALLERS ONLY WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. RepaRation nstaLLation • Remove the packaging from the appliance, and check to make sure there is no damage. If damage is found, please report it to both the carrier and your dealer as soon as possible.
  • Page 13: Venting

    The ENVIRO incorporates its own internal draft hood, so no additional external draft hood is required. Check periodically that the vent is unrestricted and an adequate draught is present when the unit is in...
  • Page 14: Termination

    Initial Installation QUALIFIED INSTALLERS ONLY eRmination 10 ft (3050 mm) The bottom of the vent cap shall extend Height above roof at least 2 feet (0.61 m) above the highest surface within 10ft point of the roof where it passes through horizontally 2 ft (610 mm) and at least 2 feet (0.61 m) higher than...
  • Page 15: Straight Vertical Installation

    Initial Installation QUALIFIED INSTALLERS ONLY tRaight eRticaL nstaLLation This basic venting configuration shown are rough guidelines only. Follow national and local codes for other installation options. For the best venting performance, we recommend a total vent height in the range of 10 feet (3.0 m) to 30 feet (9.1 m).
  • Page 16: Electrical Requirements

    LectRicaL equiRements The ENVIRO EG28 will operate without electrical power. This model has a millivolt gas control, which uses the pilot flame to generate enough electricity to operate the main burners. The appliance is equipped with a blower and must be electrically connected...
  • Page 17: Gas Line Connection And Testing

    Initial Installation onnection anD esting WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a ⅜”...
  • Page 18: Secondary Installation

    Figure 21: Step 2 of Log Placement. ENVIRO dealer replacement embers. 1. The embers can be place before or after the logs are placed. A bag of ceramic fiber embers and rock wool embers is provided gently remove the ember material from the plastic bag.
  • Page 19 Secondary Installation 3. Place the log set into the firebox. Locate each log by seating it down onto the burner tray support pins. Resting Areas for Follow Figures 11 to 16 proper log Center Log placement. 4. Upon the first light up, watch for ignition to ALL burner ports.
  • Page 20: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution The main burner The gas valve may not be on. • Check that the gas control knob is in the “ON” position. does not ignite Thermostat is not calling for • Adjust the thermostat several degrees above ambient temperature. when called for.
  • Page 21: Parts List

    Parts List Reference Part Description Part Number Number 120°F (49°C) Ceramic Temperature Sensor EC-001 Spill Switch 220°F (121°C) EC-002 Thermocouple EC-009 Spark Electrode with Cable EC-011 Thermopile EC-012 Pilot NG with Electrode EC-013 Pilot LP with Electrode EC-014 Fully Assembled Pilot NG EC-015 Fully Assembled Pilot LP EC-016...
  • Page 22 Parts List Reference Part Description Part Number Number Burner Tray Top EG28-116A BV Owner’s Manual EG28-121 Cabinet Side Panel EG28-123 BV Stove Top EG28-124 Firebox Baffle EG28-125 Fan Kit EG28-127 BV Top Baffle EG28-132 Wire Channel EG28-139 Pedestal Wiring Plate EG28-140 Pedestal Back EG28-141...
  • Page 23: Parts Diagram - Chassis

    Parts Diagram - Chassis EG 28 Body (Chassis) April 2006...
  • Page 24: Parts Diagram - Gas Tray & Door

    Parts Diagram - Gas Tray & Door...
  • Page 25: Warranty

    Sherwood Industries Ltd. (“Sherwood”) hereby warrants, subject to the terms and conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail.
  • Page 26: Installation Data Sheet

    � NATURAL GAS (NAT) PROPANE(LPG) _________________________________________ INLET GAS PRESSURE:_________in wc PHONE:___________________________________ MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam. INSTALLER’S SIGNATURE: _________________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com January 22, 2013 C-13841...
