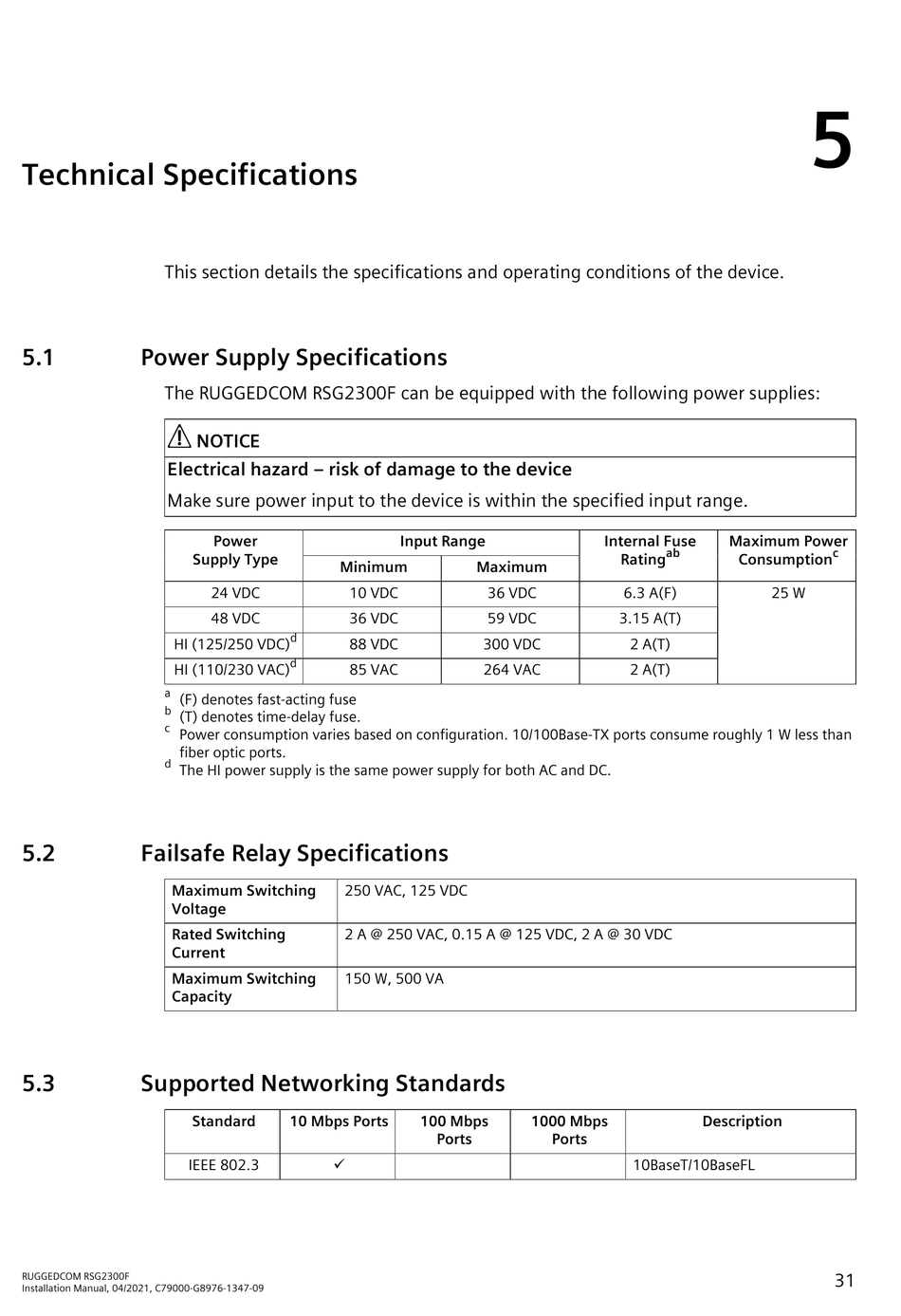

Technical Specifications

This section details the specifications and operating conditions of the device.
5.1

Power Supply Specifications

The RUGGEDCOM RSG2300F can be equipped with the following power supplies:
Electrical hazard – risk of damage to the device
Make sure power input to the device is within the specified input range.
HI (125/250 VDC)
HI (110/230 VAC)
a
(F) denotes fast-acting fuse
b
(T) denotes time-delay fuse.
c
Power consumption varies based on configuration. 10/100Base-TX ports consume roughly 1 W less than
fiber optic ports.
d
The HI power supply is the same power supply for both AC and DC.
5.2

Failsafe Relay Specifications

Maximum Switching
Voltage
Rated Switching
Current
Maximum Switching
Capacity
5.3

Supported Networking Standards

Standard
IEEE 802.3
RUGGEDCOM RSG2300F
Installation Manual, 04/2021, C79000-G8976-1347-09
NOTICE
Power
Supply Type
Minimum
24 VDC 10 VDC
48 VDC 36 VDC
d
88 VDC
d
85 VAC
250 VAC, 125 VDC
2 A @ 250 VAC, 0.15 A @ 125 VDC, 2 A @ 30 VDC
150 W, 500 VA
10 Mbps Ports
ü
Input Range
Maximum
36 VDC
59 VDC
300 VDC
264 VAC
100 Mbps 1000 Mbps
Ports Ports
Internal Fuse Maximum Power
ab
Rating Consumption
6.3 A(F) 25 W
3.15 A(T)
2 A(T)
2 A(T)
Description
10BaseT/10BaseFL
5
