2. Explanation for Each Function

2.1

Front Panel

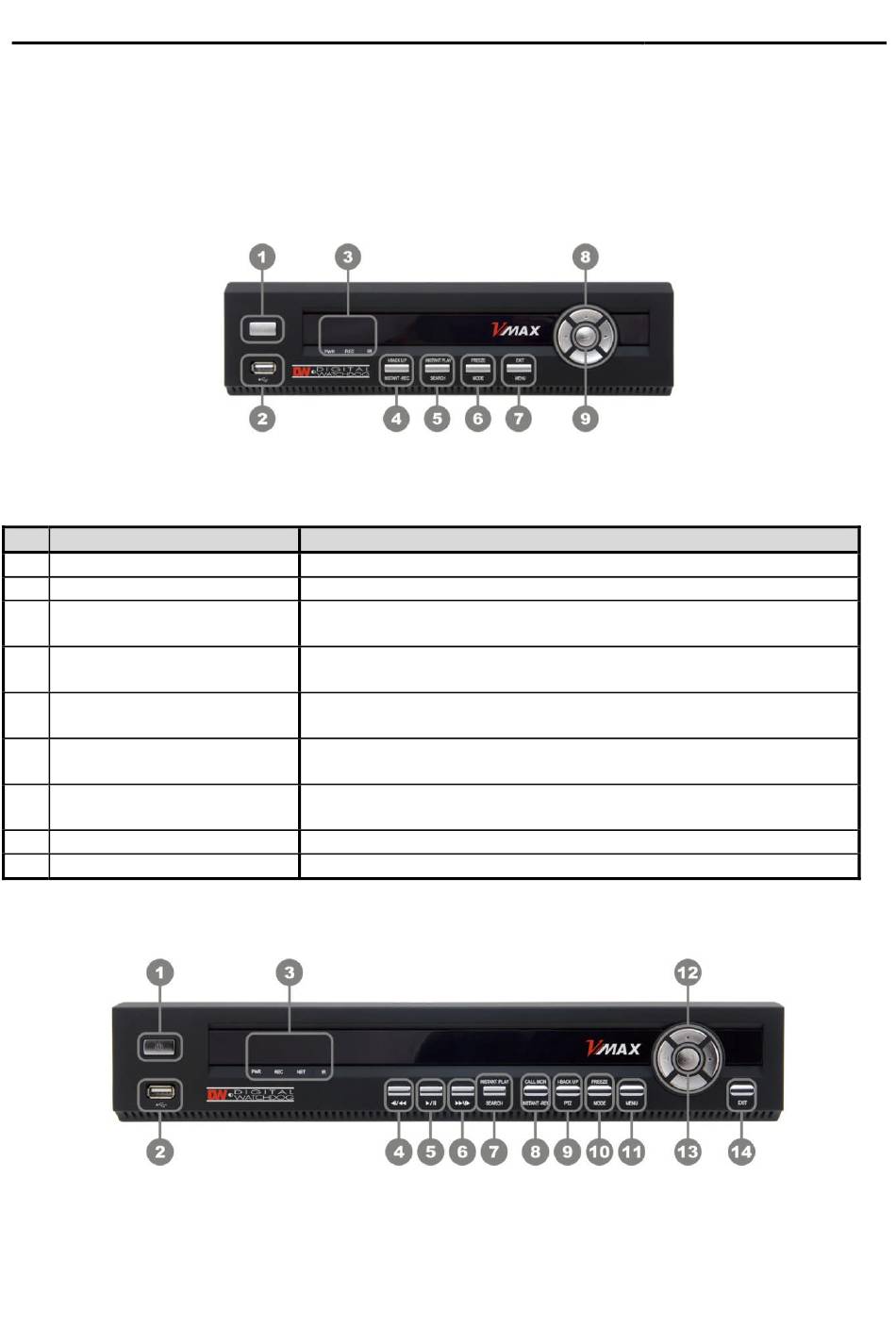

[DVR with Compact Case (270 x 71 x 215 mm)]
No. Buttons
1 Power Button
2 USB Port
3 LED Indicator
Instant-Rec
4
I-backup (Press and hold)
Search
5
Instant Play (Press and hold)
Mode
6
Freeze (Press and hold)
Menu
7
Exit (Press and hold)
8 Direction Button
9 Enter Button
[DVR with 1.5U Height (360 x 66 x 380mm)]
System startup or shutdown (shutdown is password protected)
USB port (Ver. 2.0) for mouse operation or backup or F/W update
Indicates system status
Power, Record and Remote Controller
Emergency recording / Used to initiate instant back up
Go to search mode / Used to initiate Instant Reverse Playback
Change screen mode / Used to initiate Freeze function
Open system menu or return to previous mode
Move to the direction User wants to select
Select value or setting
Functions
