User Manual
Installation Guide
UHF RFID Standalone Terminal:
U1000E, U1000F, U2000E, U2000F
Version: 1.0
Date: 2017.09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZKTeco U1000F
Summary of Contents for ZKTeco U1000F
- Page 1 Installation Guide UHF RFID Standalone Terminal: U1000E, U1000F, U2000E, U2000F Version: 1.0 Date: 2017.09...

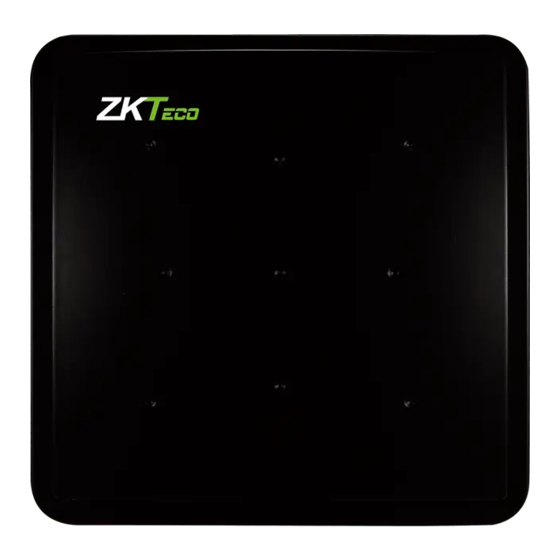

- Page 2 1. Overview Front View Antenna Working Frequency: 902MHz 926MHz 865MHz 868MHz Read Range: U1000E/F (0-6 meters) U2000E/F (0-12 meters) Dimension 250mm*250mm*70mm (U1000E, U1000F) 445mm*445mm*70mm (U2000E, U2000F) Lateral View and Interface Cables 2PIN Mounting 4PIN Green Bracket 4PIN Black RJ45 6PIN Green...
- Page 3 2. Install the Integrated Machine Hang Mounting Please install the integrated machine according to the following chart. The machine is installed on the fixed column, and the angle and height is adjusted according to the actual effect of swing card. Method A: Method B: Note: To get better reading performance, driving direction of vehicle should...
- Page 4 Note: 1) Avoid installing the integrated machine against to another. 2) The integrated machine detection distance may vary depending on rain, snow or wind. 3) The device should be away from strong magnetic field when working. 3. Install the UHF Card Tag1, DF01Card, DF02Card UHF1-Tag1, DF01Card and DF02 Card are generally used in long distance access control management and long distance pedestrian crossing control...
- Page 5 Tag2 Card UHF1-Tag2 is generally used in long distance pedestrian crossing control management, such as long distance single channel access management in construction site. Tag3 Card UHF1-Tag3 is generally used in long distance fixed vehicle access management. It is installed on the upper or lower edges of the license plate. As is shown below: Tag4 Card UHF1-Tag4 is also generally used in long distance fixed vehicle access...
-
Page 6: Structure Function
The position of the tag/card in the vehicle is as follows: UHF Tag Note: If there is a metal explosion-proof film above the windshield, you have to cut a small piece off it or roll down the window to read the tag. (The cut area is at least one time the tag’s) 4. -
Page 7: Lock Connection
(1)If a registered user verified, the device will export the signal to unlock the door. (2)Door sensor will detect the on-off state. (3) External exit button is supported; it is convenient to open the door inside. (4) External card reader is supported. (5) Connect the USB port of the integrated machine to the USB port of the computer to set the working parameters of the integrated machine. - Page 8 (1) The system supports NO LOCK and NC LOCK. The NO LOCK (normally open by power on) is connected with NO terminal, and the NC LOCK is connected with NC terminal. (2) To prevent the generation of self-inductance EMF which would affect the system, when the electrical lock is linked to the Access Control System, it is required to connect one FR107 diode (equipped in the package, do not reverse the polarities) in parallel in order to release the self-inductance EMF.
- Page 9 8. Connected with Power Input DC12V, ≤110mA (≤80mA standby) Positive is connected with +12V, negative is connected with GND (do not reverse the polarities). 9. Wiegand Output & Input Wiegand Output The device supports standard Wiegand 26/34 output, as a reader device it has a very good compatibility.
- Page 10 10. Connected with Computer 1) USB Connection Integrated Machine Connect the USB port of the integrated machine to the USB port of the computer. Set the working parameters of the integrated machine using DEMO software. 2) RJ45 Connection Connect the RJ45 port of the integrated machine to the Ethernet port of the computer.
