Installation Guide

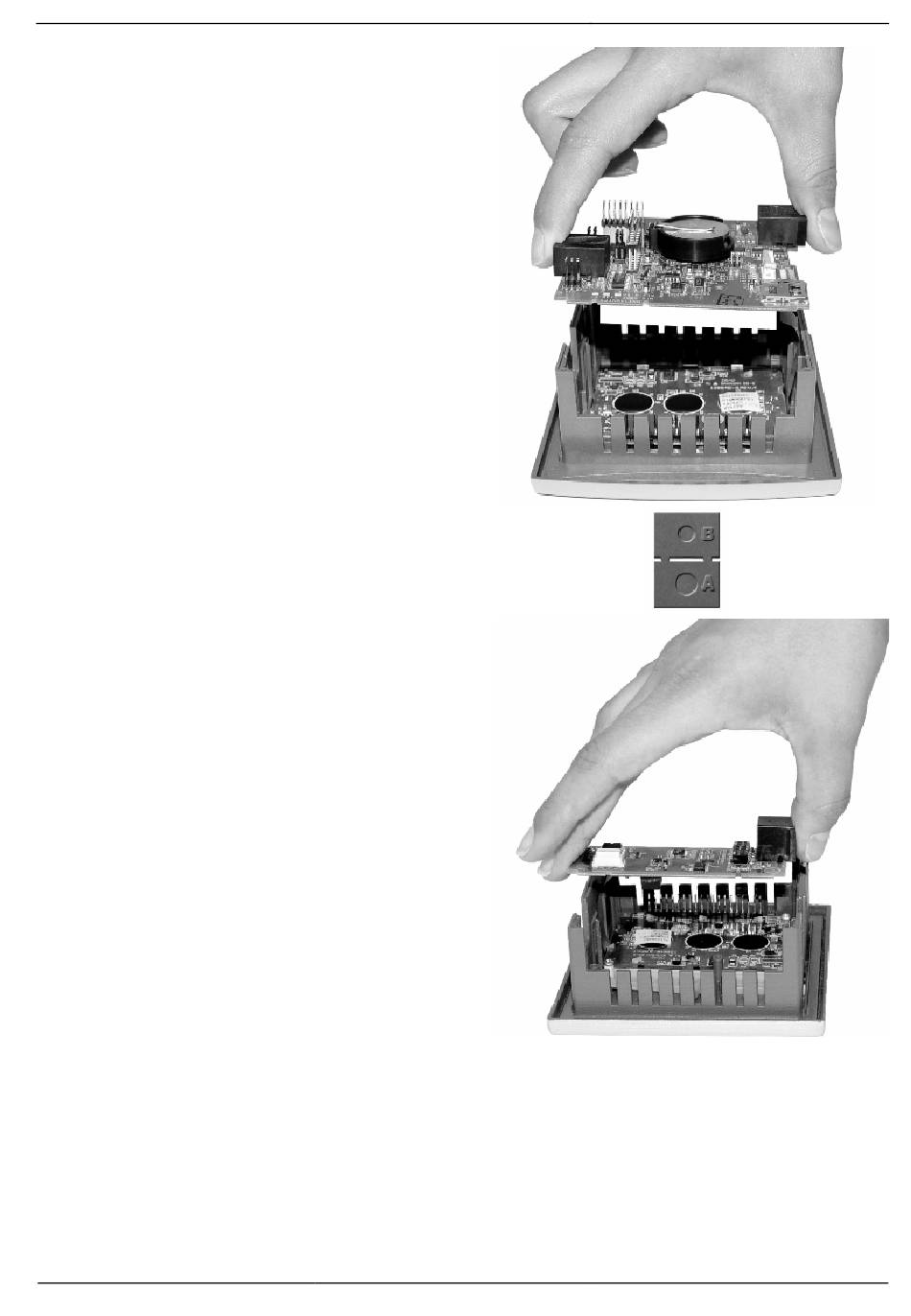

4. Hold the main board by Port 1 and by the I/O
expansion port, and pull it out of the controller.
5. Remove the plastic tab marked A and B, and
then break the tab in two.
6. Install the module as shown in the
accompanying figure.
Unitronics
9/07
