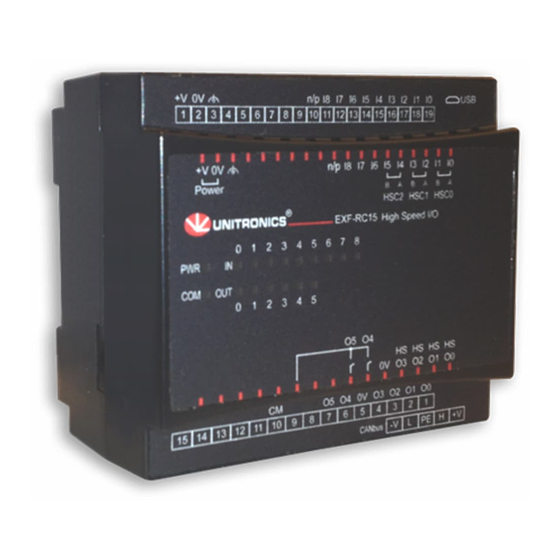

High Speed Remote I/O Module
The Unitronics EXF-RC15 is a High Speed Remote I/O Module that offers three High Speed Counter
inputs and four high speed outputs. Overall, the EXF-RC15 offers 9 digital inputs, 4 digital transistor
outputs and 2 relay outputs. It connects to the Vision controller via CANbus and can be easily
programmed via a USB port.

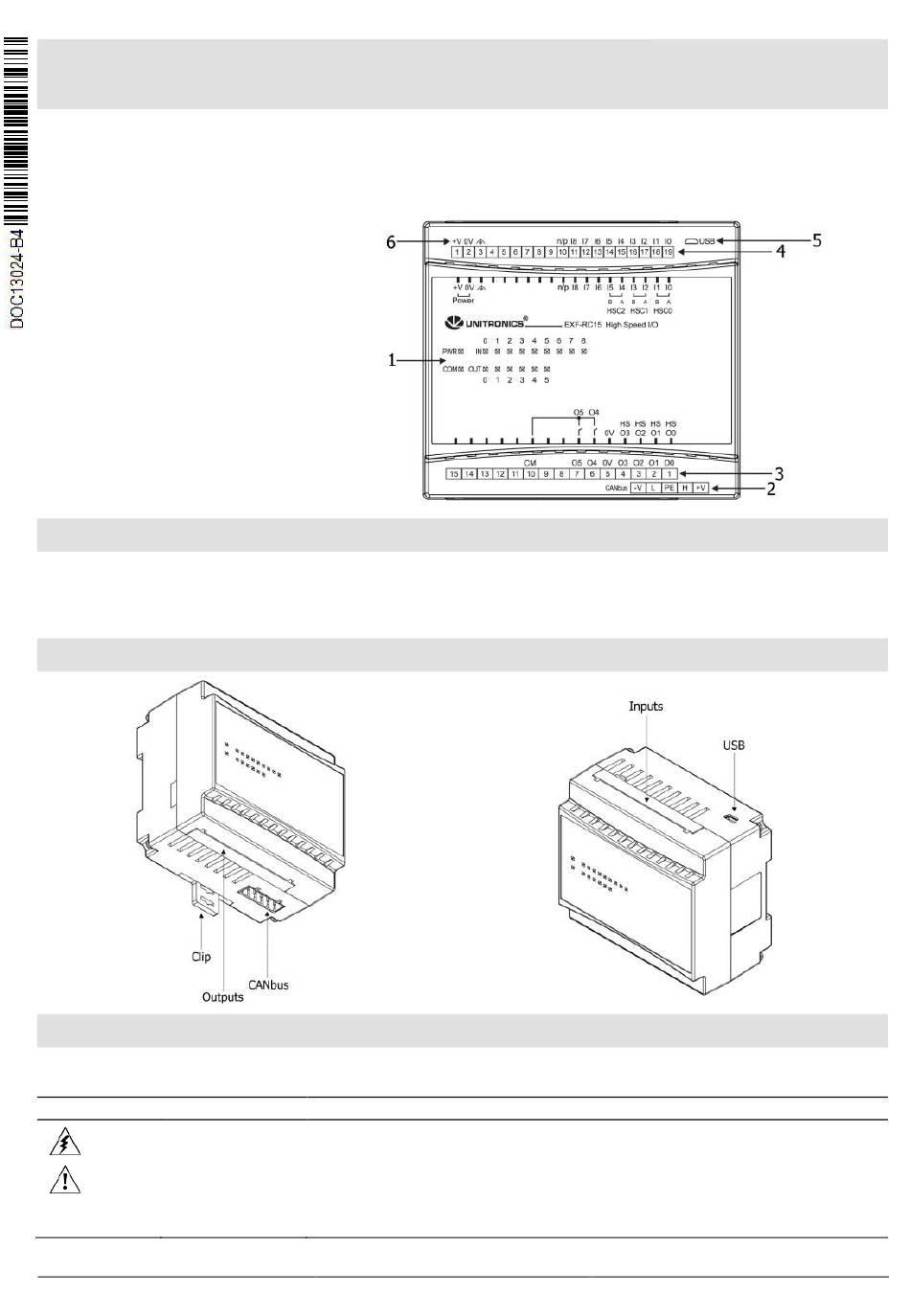

Component Identification
1
Status indicators
2
CANbus port
3
Output points
4
Input points
5
USB port
6
Power supply connection
points
Standard Kit Contents
2 I/O terminal blocks
1 CANbus terminal block
1 CANbus termination resistor
High Speed Remote I/O Module Diagram
Alert Symbols and General Restrictions
This document uses the following alert symbols to highlight notices that must be observed in order to
ensure personal safety and/or prevent property damages.
Symbol
Meaning
Danger
Warning
Caution
Caution
Unitronics
Description
The identified danger causes physical and property damage.
The identified danger could cause physical and property damage.
Use caution.
EXF-RC15
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Unitronics EXF-RC15
Summary of Contents for Unitronics EXF-RC15
- Page 1 High Speed Remote I/O Module EXF-RC15 The Unitronics EXF-RC15 is a High Speed Remote I/O Module that offers three High Speed Counter inputs and four high speed outputs. Overall, the EXF-RC15 offers 9 digital inputs, 4 digital transistor outputs and 2 relay outputs. It connects to the Vision controller via CANbus and can be easily programmed via a USB port.
- Page 2 All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. Please dispose of this product according to local and national standards and regulations.
- Page 3 EXF-RC15 Installation Guide Wiring Do not touch live wires. Install an external circuit breaker. Guard against short-circuiting in external wiring. Use appropriate circuit protection devices. Unused pins should not be connected. Ignoring this directive may damage the device.
- Page 4 EXF-RC15 Installation Guide npn Input Wiring Input wiring HSC input wiring pnp Input Wiring Input wiring HSC input wiring Shaft-encoder Input Wiring npn Outputs Wiring Unitronics...
- Page 5 EXF-RC15 Installation Guide Relay Outputs Increasing Contact Life Span To increase the life span of the relay output contacts and protect the device from potential damage by reverse EMF, connect: A clamping diode in parallel with each inductive DC load ...
- Page 6 CANbus Connector The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
