Installation Instructions

This section comprises all of the installation procedures for each of the modules.
Installing modules also requires you to remove and replace PCB boards already
Caution installed in the controller.
Make certain that the pins fit correctly into their matching receptacle.

Opening the Controller

Before performing these actions, touch a grounded object to discharge any electrostatic
charge.
Avoid touching the PCB board directly. Hold the PCB board by its connectors.
1. Turn off the power supply, disconnect, and dismount the controller.
2. The back cover of the controller comprises 4 screws, located in the corners. Remove the screws,
and pull off the back cover.

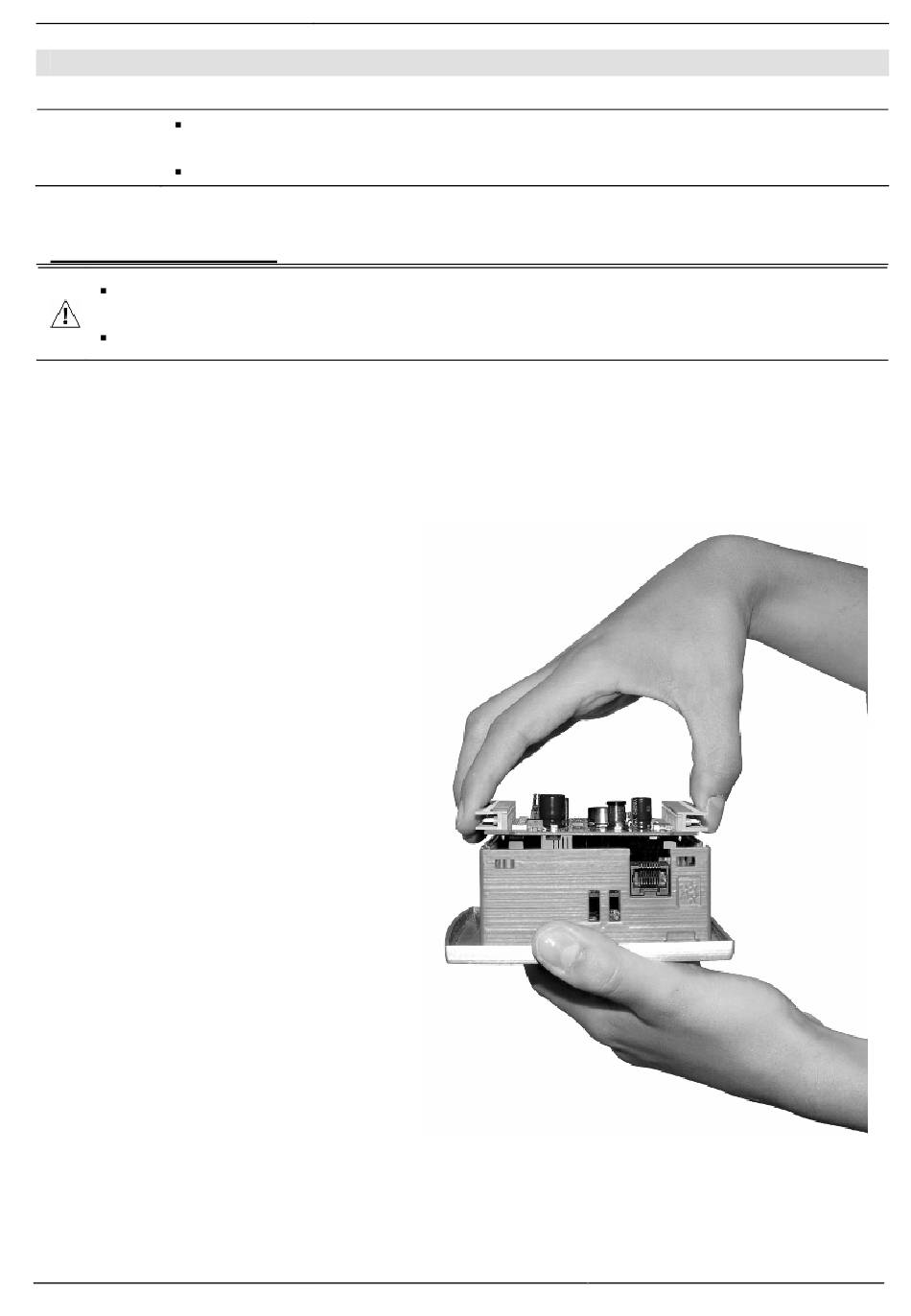

3. Hold the I/O PCB board by its top and
bottom connectors and steadily pull
the board off.
In the next section, continue with the instructions that are appropriate for your module type.
Note that if you are installing both a V100-17-CAN module and either V100-17-RS4/X or V100-17-
ET2 modules, you should install the V100-17-RS4/X or V100-17-ET2 modules first.
