MCH 13-16/ET Compact
78
MCH 26-32/ET Compact
79
80

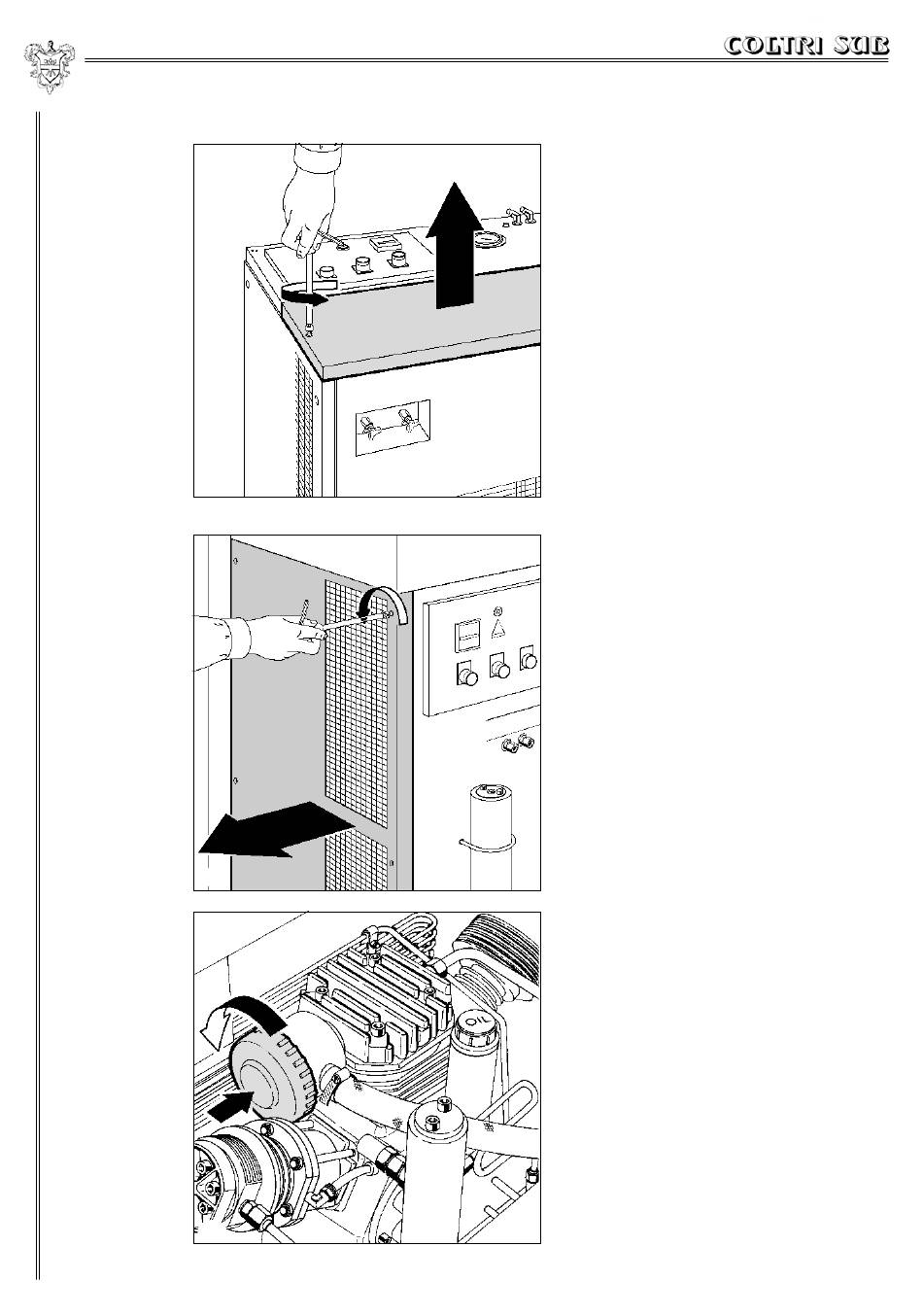

The filter must be replaced every 125 operating
hours with the following procedure:
1 Remove the upper protective cover by
unscrewing the securing screws (Fig. 78).
1 Remove the left-hand side protective cover
(looking at the compressor from the front), by
unscrewing the fixing screws (Fig. 79).
2 Press cap n° 1 lightly and turn it in an anti-
clockwise direction (Fig. 80).
54
MCH 13-16/ET Compact
MCH 26-32/ET Compact
Maintenance
