For the compressor model MCH 26-32/ET Compact, the following operations must be carried
out twice (bearing in mind that this model is double.
6.2.2
6.2.2
Connecting the refill hoses
Connecting the refill hoses
Connecting the refill hoses
6.2.2
6.2.2
6.2.2
Connecting the refill hoses
Connecting the refill hoses
40
2 Connect hose N°2 in the same way as described in the previous point (4 for the model MCH 26-32/ET
Compact).
3 A torque wrench should be available to fasten the hoses.

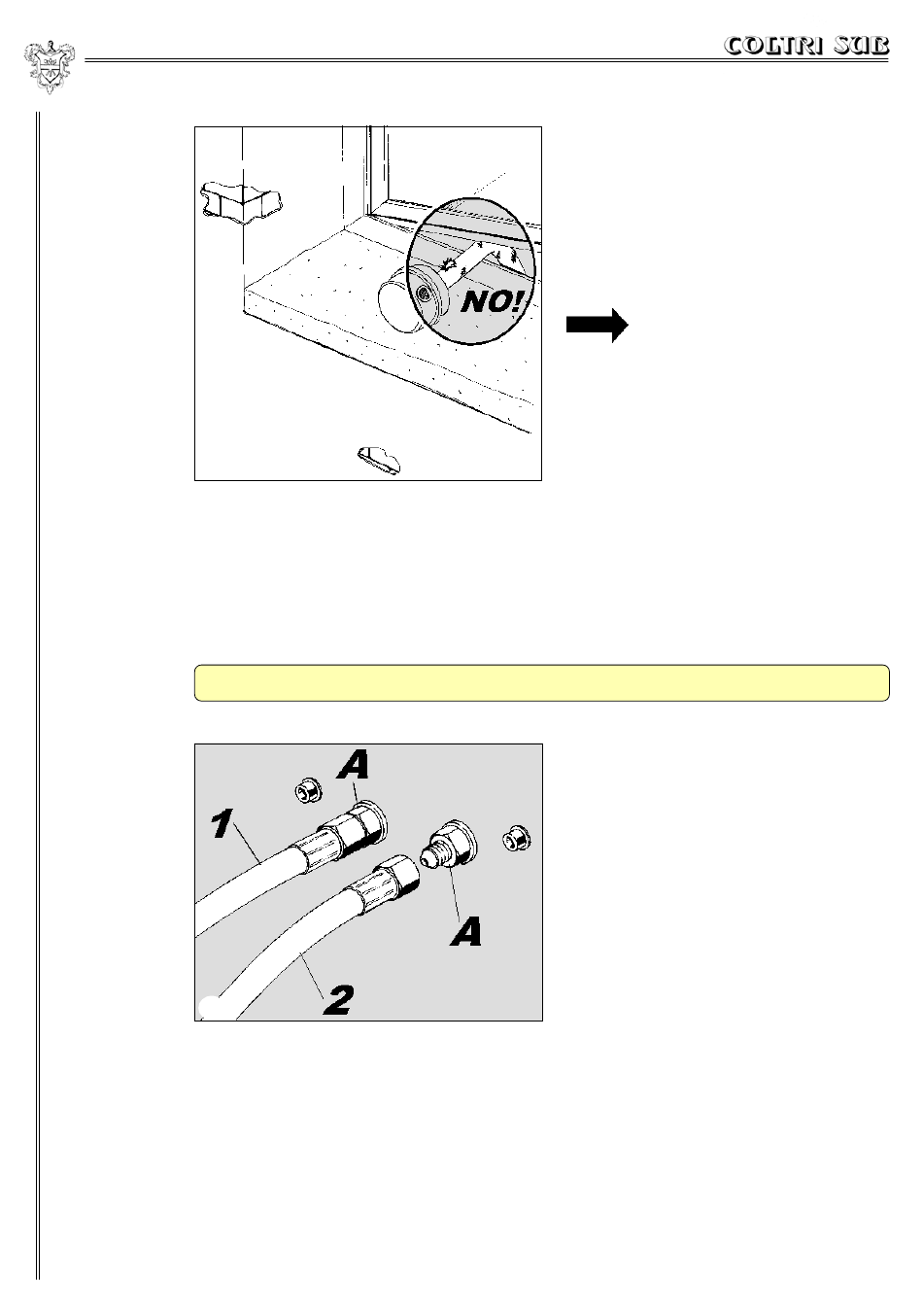

7 Make sure that there are no bends or
breakages along the length of the pipe
(Fig. 39).
If the extension should have broken during
the connection to the head, it must be
replaced.
Make sure that the air intake is away from
exhaust fumes given off by internal-combustion
engines or harmful fumes.
1 Screw hose N° 1 into the special attachment
"A" (Fig. 40) without securing it too tightly
(see point 4).
32
WARNING
Installation
