MCH 13-16/ET Compact
48
MCH 26-32/ET Compact
49
C h e c k s C h e c k s C h e c k s
C h e c k s C h e c k s
50
Start up

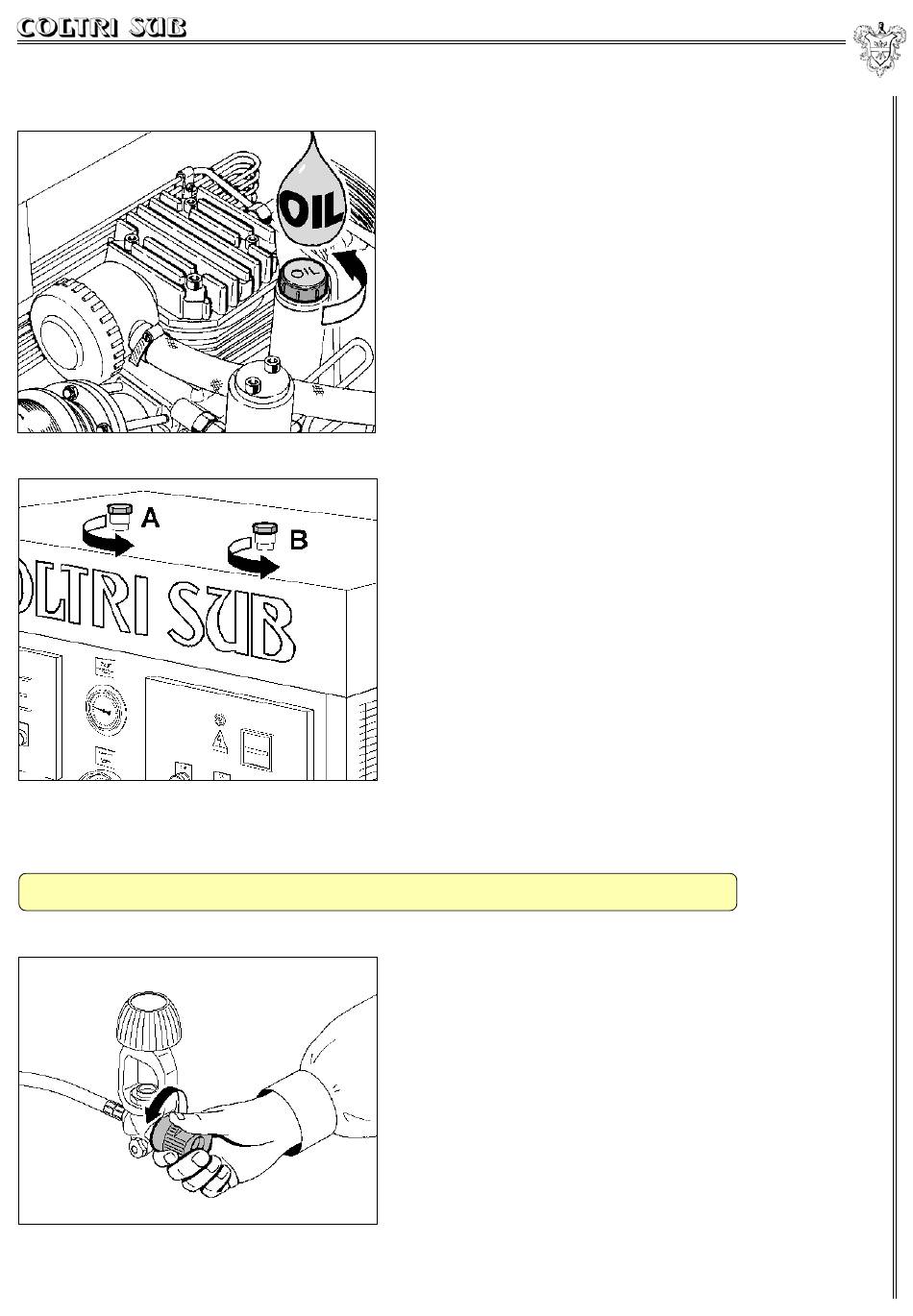

The oil is added by removing the cap marked with
the word "OIL" (Fig. 48) for model MCH 13-16/ET,
while for model MCH 26-32/ET the two oil caps
located on the upper cover of the machine
(Fig. 49) and marked with the letters "A" and "B"
must be unscrewed.
The quantity of oil to be poured in is 1.5 lt. and the
level should be checked with the machine turned
off, bearing in mind that an excess amount of oil
may cause infiltrations in the cylinders and a
deposit on the valves. On the contrary, if the oil
level is too low, the tang of the connecting rod is
prevented from providing the correct lubrication with
the possibility of causing a seizure of the cylinders.
To check the quantity of oil poured in, see the
following paragraph.
1 Turn on the manual condensate discharge
taps (Fig. 50).
37
