33
34
35

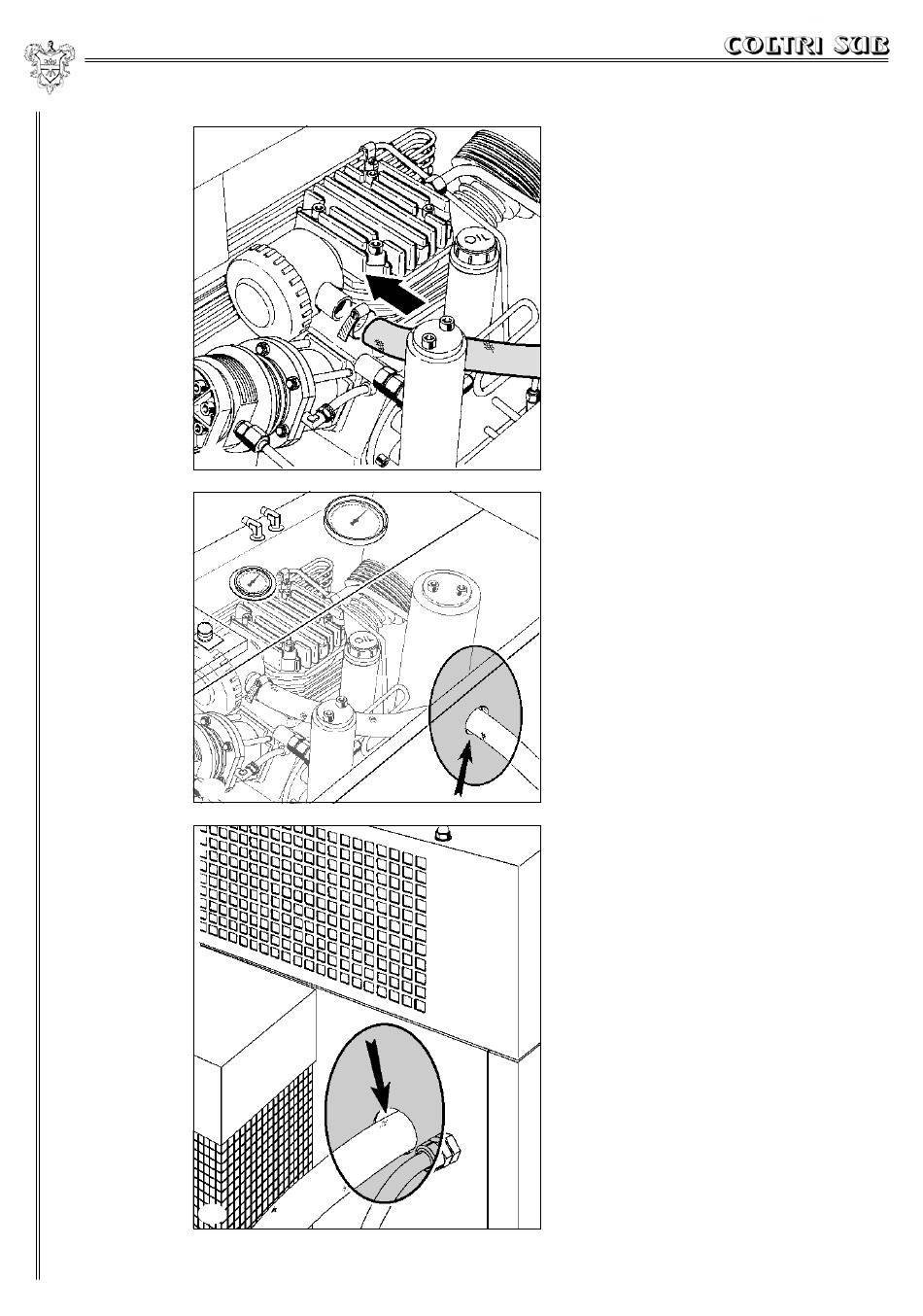

2 Connect the extension pipe to the connector
(Fig. 33) (2 in model MCH 26-32/ET
Compact).
3 Pass the pipe through the hole located in
the rear guard (Fig. 34-35-36) (2 in model
MCH 26-32/ET Compact).
MCH 13-16/ET Compact
MCH 26-32/ET Compact
30
Installation
