Installation

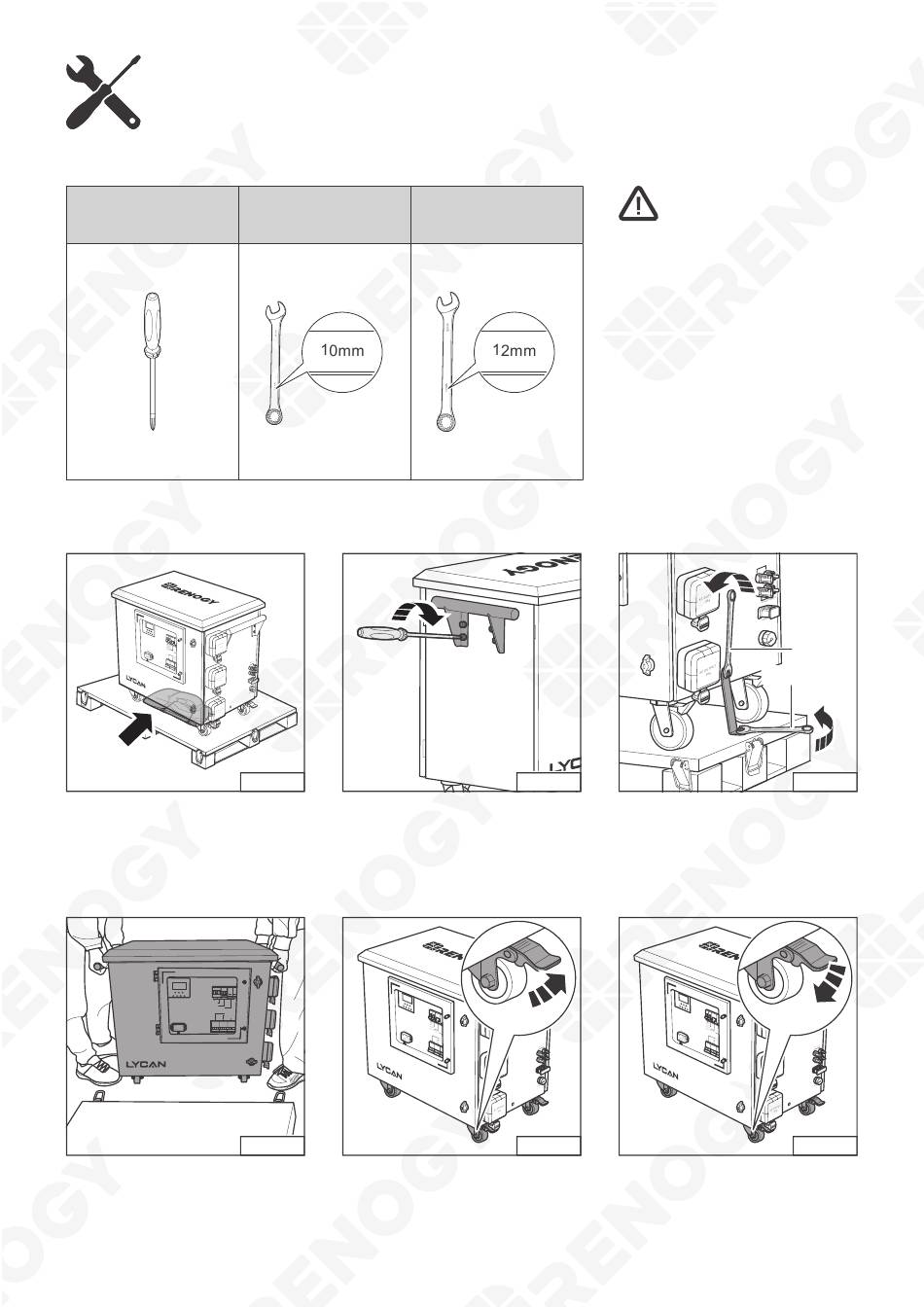

Recommended Tools
Phillips Screwdriver
(#2)
Find the Handle Bar and the
Handle Bar Screws under
LYCAN.
AC/INV CHARGE FAULT
SET UP DOWN ENT
SOLAR 1
SOLAR 2
BATTERY
SURCE PROTECTION
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
BLUETOOTH
POWER
BT-2 LINK
Bluetooth Module
Lift LYCAN from the skid with
two people.
Wrench (10mm)
STEP-1.1
Install the Handle Bar on the left
side of LYCAN with the Handle Bar
Screws. Make sure that the Screws
are firmly tightened with the Philips
Screwdriver.
STEP-1.4
Release the Pedal Brakes on Swivel
Casters. Move LYCAN to a proper
installation location.
Wrench (12mm)
STEP-1.2
STEP-1.5
z Make sure that the Handle Bar
is installed firmly on LYCAN.
z Allow at least 1 foot of space
behind the Vent Cover for
efficient heat dissipation.
z Install LYCAN at ground level
on a flat surface. Ensure that
the installation environment is
clean, cool, ventilated and away
from direct sunlight.
z If transporting the Swivel
Casters over wet surfaces,
ensure it is no more than 2
inches deep.
10mm
Loosen the screws to remove
the fixing bracket from LYCAN.
Keep the upper screw properly
for subsequent grounding cable
connection.
Engage the Pedal Brakes on Swivel
Casters to prevent LYCAN from moving.
12mm
STEP-1.3
STEP-1.6
05
