Charging
Solar Charging

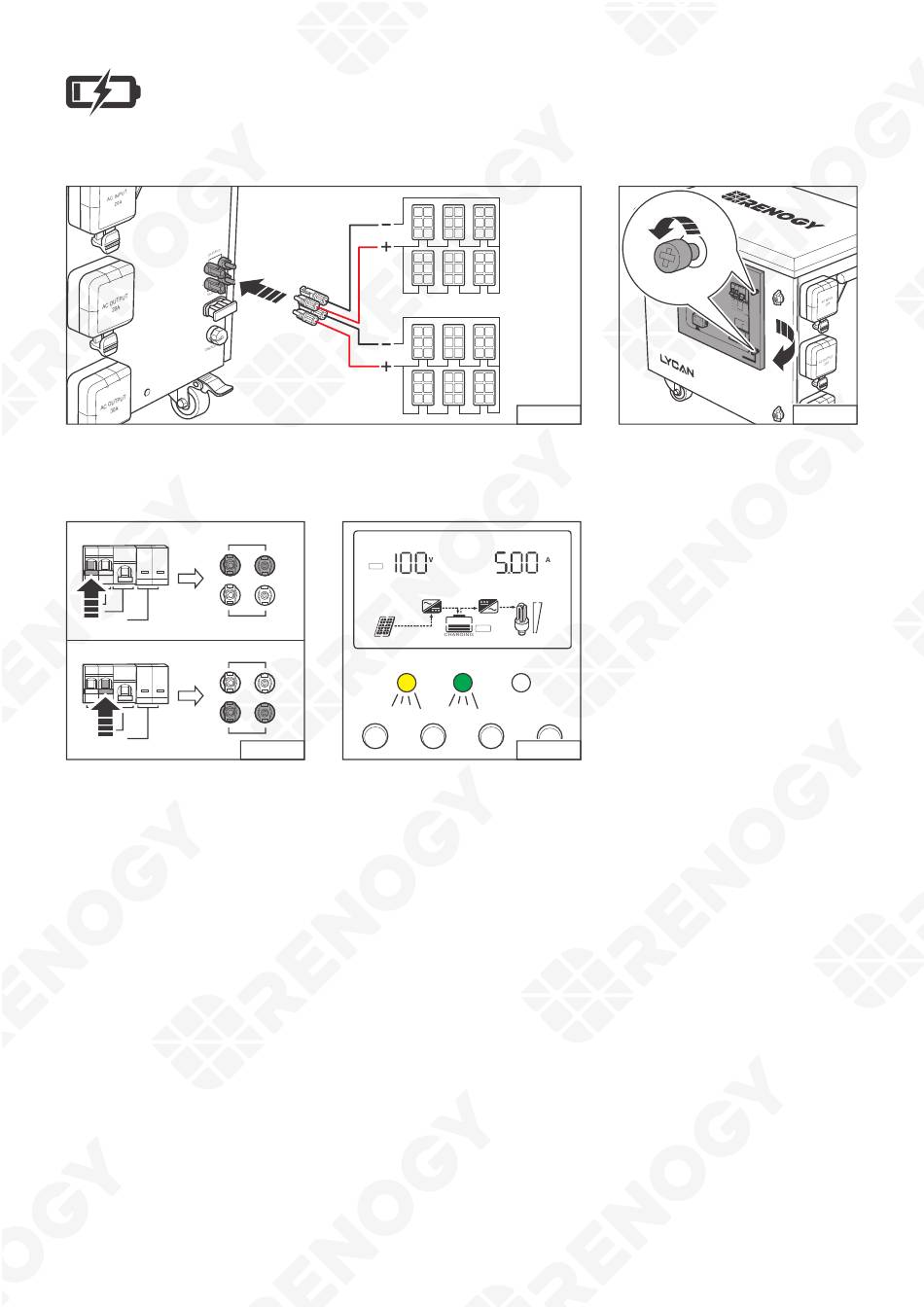

Connect the solar panels (sold separately) in series and/or
parallel to form solar arrays. Connect the solar arrays to the Solar
Connectors of LYCAN. LYCAN accepts up to 2 solar arrays.
Solar Input Circuit Breaker 1
SOLAR INPUT 1
+
+
SOLAR 1
SOLAR 2
BATTERY
SURCE PROTECTION
SOLAR INPUT 2
Solar Input Circuit Breaker 2
SOLAR INPUT 1
+
+
SOLAR 1
SOLAR 2
BATTERY
SURCE PROTECTION SOLAR INPUT 2
Push the switch up to close
the corresponding Solar Input
Circuit Breaker.
INPUT
-
PV
-
AC/INV
-
SET
-
STEP-3.8
The Solar Inverter Charger
Display shows that the battery
is being charged by solar, and
the Solar Inverter Charger
CHARGE Indicator flashes
green.
Solar
Array 1
Solar
Array 2
STEP-3.6
OUTPUT
100%
25%
LI
CHARGE FAULT
DOWN
UP ENT
STEP-3.9
Loosen the captive screws to
open the Viewing Window.
STEP-3.7
