Powering Appliances
Off-Grid Living

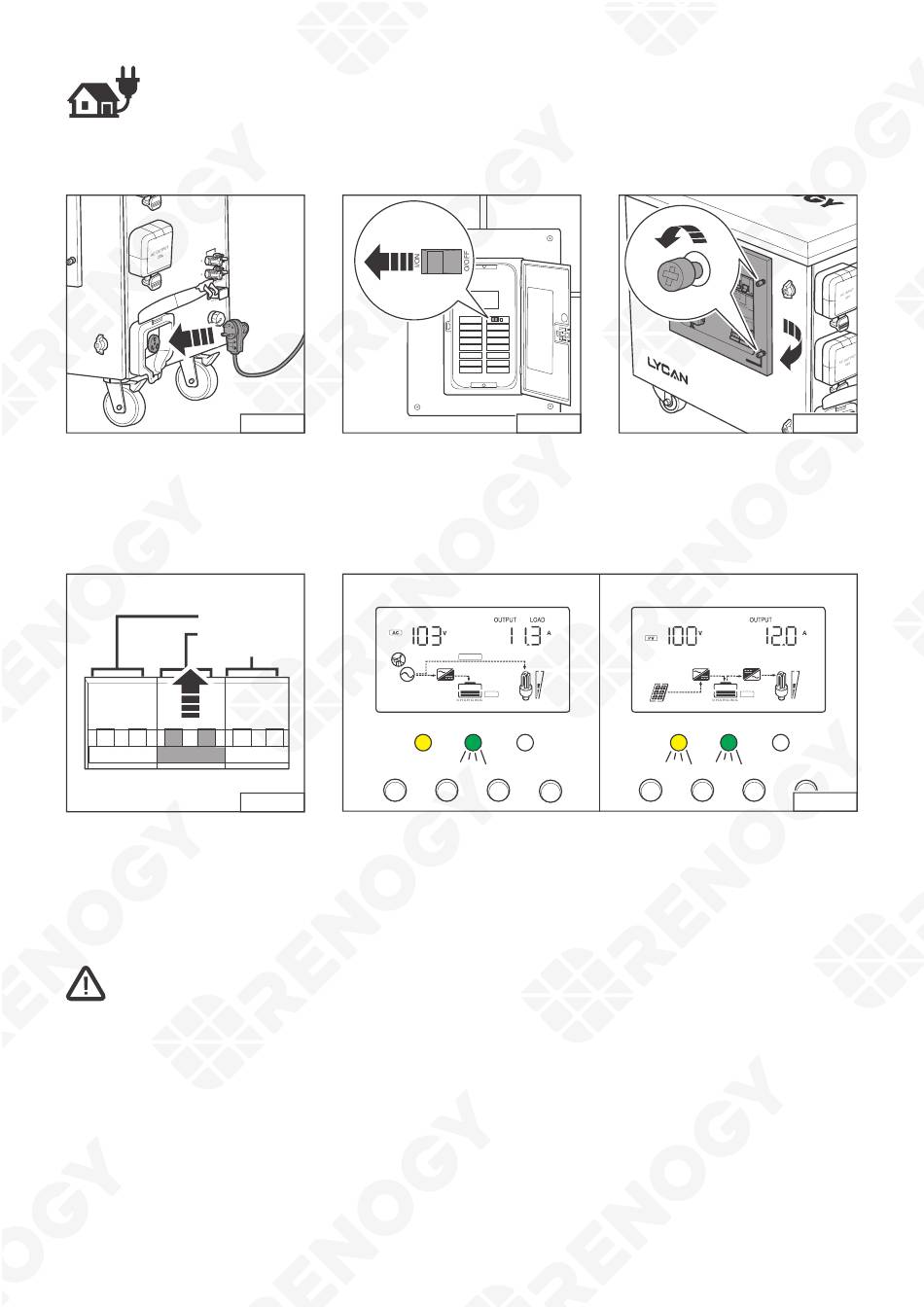

Connect the plug end of the
Adapter Cable to the 30A AC
Outlet of LYCAN.
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
Push the switch up to close
the 30A AC Output Circuit
Breaker.
z Please close the Viewing Window and tighten the captive screws after completing the steps
above.
z The AC Circuit Breakers and the appliances MUST be rated at 120VAC.
z The continuous loads shall not exceed 24A, and the noncontinuous loads shall not exceed 30A.
z When the appliances are powered by bypass AC, the continuous loads shall not exceed 16A, and
the noncontinuous loads shall not exceed 20A.
14
STEP-5.4
Replace the cover to the
AC Load Center. Push the
switches toward the center of
the AC Load Center to close
all the AC Circuit Breakers.
Powered by Bypass AC
INPUT
AC/INV
SET
STEP-5.7
The Solar Inverter Charger AC/INV Indicator lights up yellow
when the appliances are powered by bypass AC.
The Solar Inverter Charger AC/INV Indicator flashes yellow when
the appliances are powered by the batteries.
