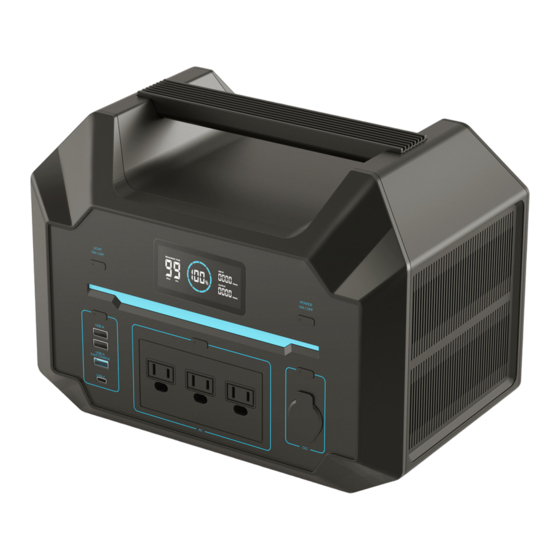

Renogy PHOENIX 500 Manual

Portable power station
Hide thumbs Also See for PHOENIX 500:
Table of Contents

Advertisement

Quick Links

Download this manual
PHOENIX 500
Portable Power Station
Version A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOENIX 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renogy PHOENIX 500

Summary of Contents for Renogy PHOENIX 500

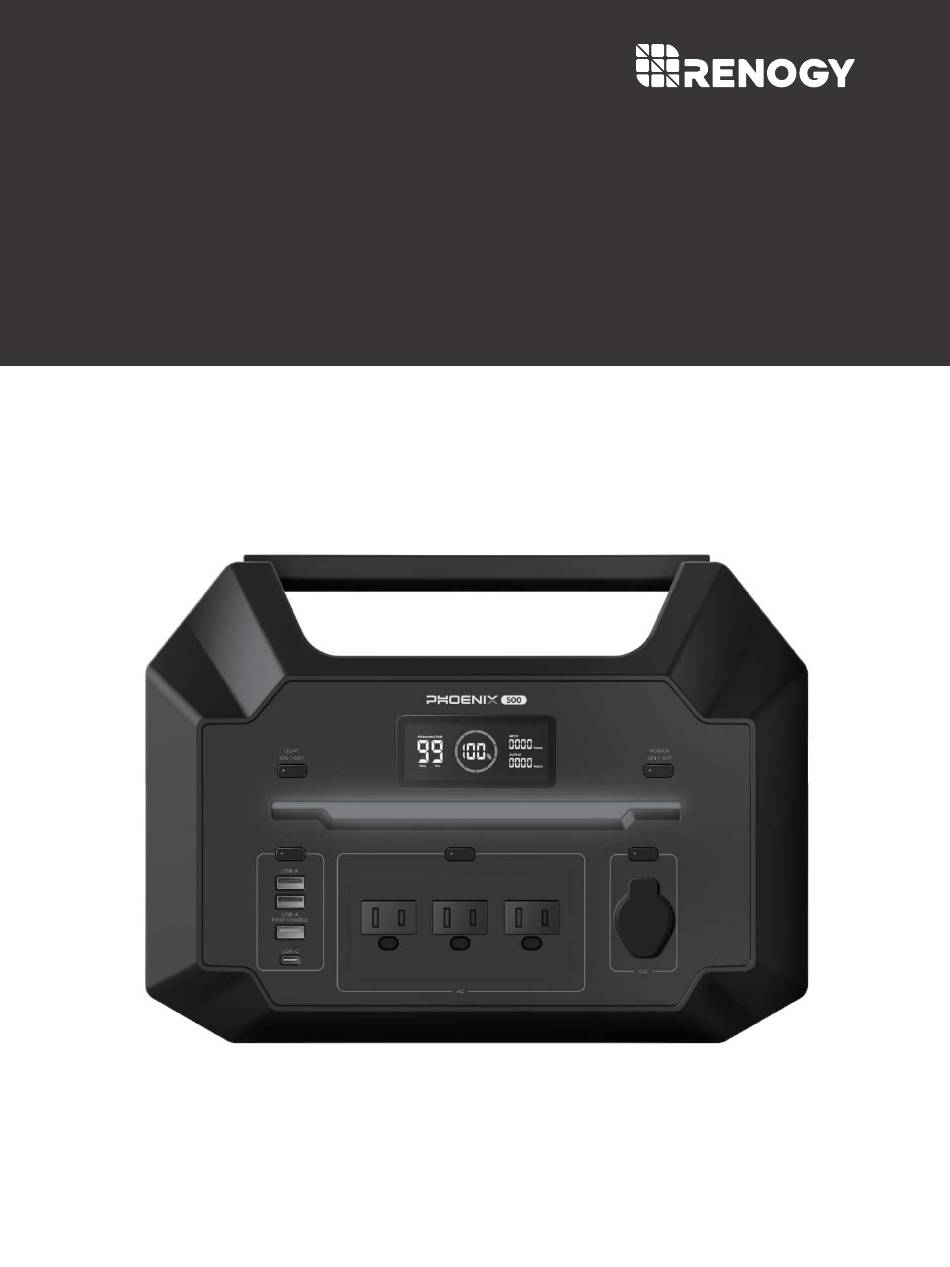

  • Page 1 PHOENIX 500 Portable Power Station Version A0...
  • Page 3 User Manu- • Renogy is not responsible or liable for the failures, damages, or injuries resulting from repair • The illustrations in the User Manual are for demonstration purposes only. Details may appear •...
  • Page 4 Important Safety Instructions Please save these instructions. The User Manual provides important operation and maintenance instructions for PHOENIX 500 Portable Power Station. Please read the User Manual carefully before operation and save it for future reference. Failure to observe the instructions or precautions in the User Manual can result in electrical shock, serious injury, or death, or can damage PHOENIX, potentially rendering it inoperable.
  • Page 5 • • • • Please ensure that no water sources including downspouts, sprinklers, or faucets are above or near PHOENIX. • Please ensure that snow does not accumulate around PHOENIX. • DO NOT lean on, stack anything on top of, or hang anything from PHOENIX or from cables leading to PHOENIX.

  • Page 6: Table Of Contents

    Table of Contents Product Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 05 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 05 Package Content- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 07 LCD Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 08...

  • Page 7: Product Overview

    Product Overview United States Europe/South Korea China /Canada/Japan Australia United Kingdom - 05 -...
  • Page 8 LCD Display AC Outlets LED Strip Lights CIG Port Overload Protector AC Inlet DC Input Port Parallel Outlet - 06 -...

  • Page 9: Package Content

    Package Content PHOENIX 500 AC Power Portable Power Station Cable Solar Charge Cable Car Charge Cable User Manual - 07 -...

  • Page 10: Lcd Display

    LCD Display Icon Name Description Indicates the current battery level. As the PHOE- NIX charges, the ring will light up clockwise with the increasing percentage, and the endmost ring segment will fast flash. Once PHOENIX is fully charged, all the ring segments will light up and re- main solid.
  • Page 11 Icon Name Description CIG Port Status SPS Mode Status WiFi Status Indicates the connection status of the WiFi. Single Phase Parallel Mode allel mode. When the single phase parallel mode is Status High Temperature Indicates the protection related to high tempera- Protection tures.

  • Page 12: Operation

    Operation • display the operating status of PHOENIX. • go out. DC Home Connection • It is required to turn on PHOENIX before connecting it to the DC Home app. Setting Up • Scan the QR code to download the DC Home app. •...
  • Page 13 Bluetooth Connection • • Click “+” on the top right corner to search for PHOENIX. • on the pop-up menu to add PHOENIX to the device list. • Monitor and program PHOENIX on the DC Home app. • Please keep the phone or tablet within 65.6 feet (20 m) of PHOENIX. WiFi Connection •...
  • Page 14 • PHOENIX only connects to the 2.4GHz WiFi network. - 12 -...

  • Page 15: Charging

    104°F (40°C). • DO NOT use damaged accessories to charge PHOENIX as it might cause electric shock. • ONLY use Renogy approved accessories to charge PHOENIX. • DO NOT charge PHOENIX immediately after a long heavy run. • Please charge PHOENIX immediately when the battery level drops below 10% to prevent overdischarge.
  • Page 16 • The operating voltage of the solar panel array shall exceed 10V, and the open circuit voltage shall NOT exceed 50V. • Please ensure that the solar panels are of the same type and ratings and under similar condi- tions. •...

  • Page 17: Powering Devices

    Car Charging • Start the car engine. • Connect the DC Input Port of PHOENIX to the CIG port in the car with the included Car Charge Cable. PHOENIX will start charging automatically. Powering Devices • DO NOT discharge PHOENIX at high temperatures above 131°F (55°C) or low temperatures below -4°F (-20°C).
  • Page 18 USB-A/USB-C Devices will stop powering the devices. speaker, wireless headphone, and drone. held game console, and DSLR camera. support the Quick Charge (QC) standard. support the Power Delivery (PD) standard. Car Powered Devices vice to the CIG Port to start powering the device. stop powering the device.

  • Page 19: Standby Power Supply (Sps)

    • tions. Inappropriate output frequency might damage the device. • heat dissipation when the AC Outlets are in use. • PHOENIX might not be able to power the AC devices that require high starting currents even though they are rated under 800W. age limits.

  • Page 20: Parallel Connection

    Parallel Connection • It is required to turn on PHOENIXes before connecting them in parallel. The iStack technology allows two PHOENIXes to be connected in parallel to deliver 990Wh ca- pacity and 1440W AC output. Single Phase Parallel • Connect the Parallel Outlets of two PHOENIXes with a single phase parallel kit (sold sepa- rately).

  • Page 21: Strip Lights Operation

    • Please read the user manual of PHOENIX Single Phase Parallel Kit before connecting PHOE- NIXes in parallel. • Please fully charge the PHOENIXes before connecting them in parallel. • The AC Inlet will be disabled for AC charging and SPS mode when the single phase parallel kit is connected to PHOENIX.
  • Page 22 • The timeout of the CIG Port or AC Outlets can be set or disabled on the DC Home app. Unit Timeout • The timeout of PHOENIX can be set or disabled on the DC Home app. - 20 -...

  • Page 23: Maintenance

    Maintenance Cleaning • Remove all the connections from PHOENIX. • • Clear the leaves, debris, and dust from the fans of PHOENIX. • Clean the casing of PHOENIX with a soft dry cloth. • Keep the area around PHOENIX clean and dry. •...

  • Page 24: Troubleshooting

    Troubleshooting • If PHOENIX does not operate properly, refer to the table below for possible causes and cor- rective steps. • If the corrective steps do not work, contact our customer service through renogy.com/con- tact-us/. Icons Pattern Possible Causes Corrective Steps •...
  • Page 25 Icons Pattern Possible Causes Corrective Steps • • • Check the current ratings of the devices. Stop using the devices if they draw currents that ex- Slow Charge Output Flash Overcurrent/Short Circuit • LCD Display lit up to release the protection. •...
  • Page 26 Icons Pattern Possible Causes Corrective Steps • Disconnect the device from the CIG Port. • Remove the short circuit if the CIG Port is shorted. • Check the current rating of the device. Stop CIG Output using the device if it draws current that ex- Slow Overcurrent/Short Flash...
  • Page 27 Icons Pattern Possible Causes Corrective Steps • Reallocate the output power to ensure that the total output power is under 1050W. • LCD Display lit up to release the protection. Slow Total Output • Flash Overload Power can be resumed. •...
  • Page 28 Icons Pattern Possible Causes Corrective Steps • Disconnect the single phase parallel kit from PHOENIXes. • Check the models of PHOENIXes. Stop con- necting PHOENIXes in parallel if they are of • Check the output voltages of the AC Outlets. Fast Single Phase Stop connecting PHOENIXes in parallel if their...
  • Page 29 General Dimension 12.76 x 8.19 x 9.43 inch / 324 x 208 x 239.5 mm Weight 16.71 lbs / 7.6 kg Charge Temperature Discharge Temperature Storage Temperature -4°F~68°F / -20°C~20°C Battery Type Lithium Ion Capacity 18V, 27500mAh / 495Wh Cycle Life 600 Cycles (80% DOD, 80% EOL) Input 85V~120V (JP)/90V~140V (US, CA)/200V~240V (EU, UK, AU, KR,...
  • Page 30 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: desired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 31 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. FCC ID: 2ANPB-RPS5080AA R210- IC ID: 23590-RPS5080AA 189209 5050 S Archibald Ave, Ontario, CA 91762 909-287-7111 www.renogy.com support@renogy.com 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com...
