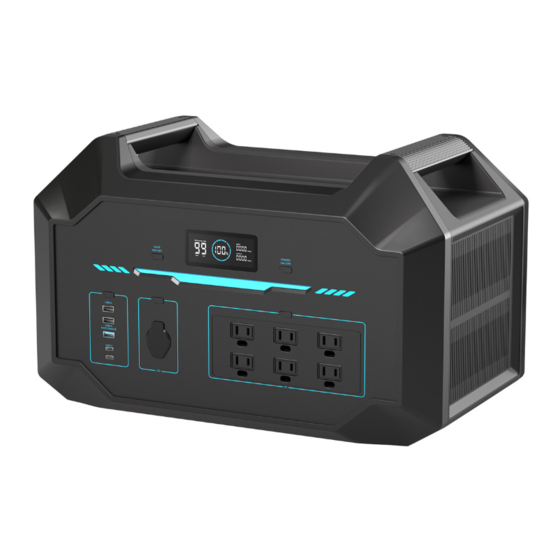

Renogy 1000 Manual

Portable power station
Hide thumbs Also See for 1000:
Table of Contents

Advertisement

Quick Links

Download this manual
RENOGY 1000
Portable Power Station
Version A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renogy 1000

Summary of Contents for Renogy 1000

  • Page 1 RENOGY 1000 Portable Power Station Version A0...
  • Page 2 All information in the User Manual is subject to copyright and other intellectual property rights of Renogy and its licensors. The User Manual may not be modified, reproduced, or copied, in whole or in part, without the prior written permissions of Renogy and its licensors.
  • Page 3 Important Safety Instructions Please save these instructions. The User Manual provides important operation and maintenance instructions for RENOGY 1000 Portable Power Station (hereinafter referred to as Portable Power Station). Please read the User Manual carefully before operation and save it for future reference. Failure to observe the instruc- tions or precautions in the User Manual can result in electrical shock, serious injury, or death, or can damage the portable power station, potentially rendering it inoperable.
  • Page 4 • Please use the portable power station in accordance with its input and output specifications. • DO NOT expose the portable power station to flammable or harsh chemicals or vapors. • DO NOT expose the portable power station to strong electrostatic fields, strong magnetic fields, or radiation.

  • Page 5: Table Of Contents

    Table of Contents Product Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 05 Identification of Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 05 Package Content- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 07 LCD Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 08...

  • Page 6: Product Overview

    Product Overview █ Identification of Parts United States Europe China /Canada/Japan /South Korea United Kingdom Australia - 05 -...
  • Page 7 LCD Display CIG Port Power On/Off Button LED Strip Lights Light On/Off Button AC On/Off Button CIG On/Off Button AC Outlets USB On/Off Button Overload Protector USB-A Ports AC Inlet USB-A Fast Charge Port DC Input Port USB-C Ports Parallel Outlet - 06 -...

  • Page 8: Package Content

    █ Package Content RENOGY 1000 AC Power Portable Power Station Cable Solar Charge Car Charge User Manual Cable Cable - 07 -...

  • Page 9: Lcd Display

    LCD Display Icon Name Description Indicates the current battery level. As the portable power station charges, the ring will light up clock- wise with the increasing percentage, and the end- most ring segment will fast flash. Once the portable Battery Level power station is fully charged, all the ring segments will light up and remain solid.
  • Page 10 Icon Name Description CIG Port Status Indicates the on/off status of the CIG Port. SPS Mode Status Indicates the on/off status of the SPS mode Indicates the enable/disable status of the iBoost iBoost Mode Status mode. When the iBoost mode takes effect, the icon will slow flash.

  • Page 11: Operation

    Operation █ Turning On/Off • Short press the Power On/Off Button to turn on the portable power station. The LCD Display will light up to display the operating status of the portable power station. • Long press the Power On/Off Button for 3 seconds to turn off the portable power station. The LCD Display will go out.
  • Page 12 Bluetooth Connection • Turn on the Bluetooth on the phone or tablet. • Click “+” on the top right corner to search for the portable power station. • Click “Confirm” on the pop-up menu to add the portable power station to the device list. •...
  • Page 13 • The portable power station only connects to the 2.4GHz WiFi network. - 12 -...

  • Page 14: Charging

    DO NOT use damaged accessories to charge the portable power station as it might cause electric shock. • ONLY use Renogy approved accessories to charge the portable power station. • DO NOT charge the portable power station immediately after a long heavy run.
  • Page 15 • The operating voltage of the solar panel array shall exceed 10V, and the open circuit voltage shall NOT exceed 100V. • Please ensure that the solar panels are of the same type and ratings and under similar condi- tions. •...

  • Page 16: Powering Devices

    Car Charging • Start the car engine. • Connect the DC Input Port of the portable power station to the CIG port in the car with the in- cluded Car Charge Cable. The portable power station will start charging automatically. █...
  • Page 17 • It is required to turn on the portable power station before powering devices. • When the portable power station is overloaded, it will turn off the USB-A Ports, USB-A Fast Charge Port, and USB-C Port, CIG Port, and AC Outlets in sequence until the total output power drops below 2100W.

  • Page 18: Standby Power Supply (Sps)

    AC Devices • Short press the AC On/Off Button with the portable power station on to turn on the AC Outlets. Connect the devices to the AC Outlets to start powering the devices. • The output frequency of the AC Outlets can be switched between 50Hz and 60Hz on the DC Home app.

  • Page 19: Parallel Connection

    • Short press the AC On/Off Button with the portable power station on to turn on the AC Outlets. • Connect the Parallel Outlets of two RENOGY 1000 portable power stations with a single phase parallel kit (sold separately). The single phase parallel mode will be turned on after a few seconds of initialization.
  • Page 20 • Short press the AC On/Off Button with the portable power station on to turn on the AC Outlets. • Connect the Parallel Outlets of two RENOGY 1000 portable power stations with a split phase parallel kit (sold separately). The split phase parallel mode will be turned on after a few sec- onds of initialization.

  • Page 21: Strip Lights Operation

    The split phase parallel mode is available on US, CA, and JP models only. • Please read the user manuals of RENOGY Single Phase Parallel Kit and RENOGY Split Phase Parallel Kit before connecting two RENOGY 1000 portable power stations in parallel.
  • Page 22 CIG Port/AC Outlets Timeout • When the device draws low or no power from the CIG Port or AC Outlets for 1 hour, the CIG Port or AC Outlets will turn off automatically to save energy. • The timeout of the CIG Port or AC Outlets can be set or disabled on the DC Home app. Unit Timeout •...

  • Page 23: Maintenance

    Maintenance █ Cleaning • Remove all the connections from the portable power station. • Turn off the portable power station. • Clear the leaves, debris, and dust from the fans of the portable power station. • Clean the casing of the portable power station with a soft dry cloth. •...

  • Page 24: Troubleshooting

    • If the portable power station does not operate properly, refer to the table below for possible causes and corrective steps. • If the corrective steps do not work, contact our customer service through renogy.com/con- tact-us/. Icons Pattern Possible Causes Corrective Steps •...
  • Page 25 Icons Pattern Possible Causes Corrective Steps • Disconnect the devices from the USB-A Ports and USB-A Fast Charge Port. • Remove the short circuits if the USB-A Ports or USB-A Fast Charge Port are shorted. • USB-A/ Check the current ratings of the devices. Stop USB-A Fast using the devices if they draw currents that ex- Slow...
  • Page 26 Icons Pattern Possible Causes Corrective Steps • Disconnect the device from the CIG Port. • Remove the short circuit if the CIG Port is shorted. • Check the current rating of the device. Stop CIG Output using the device if it draws current that ex- Slow Overcurrent/Short ceeds the specification of the CIG Port.
  • Page 27 Icons Pattern Possible Causes Corrective Steps • Reallocate the output power to ensure that the total output power is under 2100W. • Short press the Power On/Off Button with the LCD Display lit up to release the protection. Slow Total Output •...
  • Page 28 Pattern Possible Causes Corrective Steps • Disconnect the single phase parallel kit from the two RENOGY 1000 portable power sta- tions. • Check the models of the portable power sta- tions. Stop connecting them in parallel if they are of different models.

  • Page 29: Specifications

    Specifications General Dimension 18.27 x 10.79 x 11.57 inch / 464 x 274 x 294 mm Weight 41.0 lbs / 18.6 kg 32°F~104°F / 0°C~40°C (Recommended) Charge Temperature 32°F~131°F / 0°C~55°C (Extreme) -4°F~104°F / -20°C~40°C (Recommended) Discharge Temperature -4°F~131°F / -20°C~55°C (Extreme) Storage Temperature -4°F~95°F / -20°C~35°C Battery...
  • Page 30 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 5050 S Archibald Ave, Ontario, CA 91762 909-287-7111 www.renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 www.renogy.cn www.renogy.jp ca.renogy.com au.renogy.com uk.renogy.com de.renogy.com...
