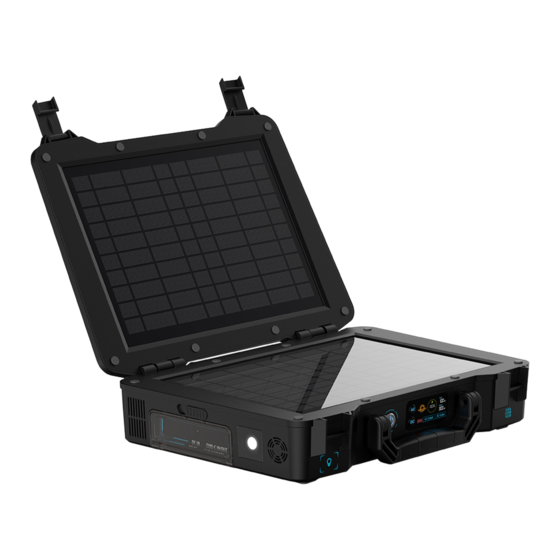

- Page 1 PHOENIX ELITE PORTABLE SOLAR GENERATOR Model: R300PHXE User Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS FEATURES PACKAGE CONTENTS PRODUCT OVERVIEW SPECIFICATIONS LCD SCREEN RECHARGING PHOENIX ELITE OPERATING PHOENIX ELITE MAINTENANCE TROUBLESHOOTING FREQUENTLY ASKED QUESTIONS WARRANTY - 01 -... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the User Guide carefully before recharging or operating your PHOENIX Elite. IMPORTANT SYMBOLS Indicates potentially dangerous conditions that could result in personal injury WARNING Indicates conditions or practices that could result in damages to the unit or other CAUTION equipment Indicates procedures or functions that are important for proper and safe operation... -
Page 4: Features
Equipped with a 300Wh rechargeable lithium-ion battery pack and multiple output ports, the PHOENIX Elite is ready to provide long-lasting power for a wide range of mobile devices and small appliances. PACKAGE CONTENTS 1 x Renogy PHOENIX Elite Portable Solar Generator 1 x AC/DC Adapter 1 x Cigarette Lighter Plug to 5.5mm DC Adapter Cable 1 x MC4 to 5.5mm DC Adapter Cable... -
Page 5: Product Overview
PRODUCT OVERVIEW 9 10 11 12 - 04 -... - Page 6 Flashlight On/Off Button DC Output Ports QC USB-A Port Main Power Button AC Output Mode On/Off Button USB-A Ports DC Output Mode On/Off Button Hinges LCD Screen Input Side Door DC Input Port Built-in Solar Panels Latches USB-C PD Port AC Outlet LED Flashlight CIG Port...
-
Page 7: Specifications
SPECIFICATIONS General Dimension 413 x 308 x 100 mm / 16.3 x 12.1 x 3.9 inch Weight 5.3 kg / 11.7 lb. Material ABS + PC Flashlight 3W LED Normal Operating Temperature 0-45 ℃ / 32-113 ℉ Storage Temperature -10-60 ℃ / 14-140℉ Operating / Storage Humidity 20-90% Battery... -
Page 8: Lcd Screen
LCD SCREEN The LCD Screen will be lit when the PHOENIX Elite is being recharged or turned on to display the recharging and operating status of the PHOENIX Elite. Please refer to the following table to interpret the information displayed on the LCD Screen. Icon Name Description... -
Page 9: Recharging Phoenix Elite
If the [Error Code] icon appears, the PHOENIX Elite may need special attention. Please refer to CAUTION the TROUBLESHOOTING section for help. RECHARGING PHOENIX ELITE To maximize the battery life, please ensure that the PHOENIX Elite is fully recharged before CAUTION operating or storing. - Page 10 Renogy ECLIPSE Series Solar Panel: 100W Renogy Monocrystalline Foldable Solar Suitcase w/o Controller: 100W Renogy ECLIPSE Series Foldable Solar Panel w/o Controller: 100W, 200W Renogy Flexible Solar Panel: 50W, 100W, 160W, 175W Renogy E.FLEX Series Portable Solar Panel: 50W, 100W, 120W Electrical shock can occur if the MC4 to 5.5mm DC Adapter Cable is damaged or frayed.
- Page 11 The PHOENIX Elite will begin to recharge automatically. The LCD Screen will be lit with the [Battery Level] icon and [Input Power] icon appearing. Electrical shock can occur if the AC/DC Adapter is damaged. DO NOT use a damaged AC/DC WARNING Adapter to recharge the PHOENIX Elite.
-
Page 12: Operating Phoenix Elite
Recharging via USB-C PD Wall Charger For optimal recharging performance, it is highly recommended to recharge the PHOENIX Elite using a USB-C PD wall charger (not included) with a high power rating. Plug the PHOENIX Elite into a wall outlet through the USB-C PD Port using the USB-C PD wall charger and the included USB-C to USB-C Cable. - Page 13 DC Powered Devices: 299.5Wh x 95% Working Hours = Device Power Rating (W) AC Powered Devices: 299.5Wh x 85% Working Hours = Device Power Rating (W) The above estimation formulas only apply when the PHOENIX Elite has been fully recharged NOTE and the device does not draw too much power.
-
Page 14: Maintenance
If the PHOENIX Elite does not operate normally, please refer to the following table for possible causes and corrective steps. If the following corrective steps do not work, please contact the Renogy technical support team for help. Refer to the last page of the User Guide for contact information. - Page 15 Disconnect all the electrical load(s). Recharge the unit until Battery Under-voltage the [Error Code] icon disappears. Stop using the unit. Contact the Renogy technical support Battery Cell Imbalance team for help. Stop using the unit. Contact the Renogy technical support BMS Communication team for help.
- Page 16 USB-A Ports Output mode. If the [Error Code] icon persists, stop using the unit. Under-voltage Contact the Renogy technical support team for help. Disconnect the electrical load(s). Remove the short circuit(s). Press the DC Output Mode On/Off Button to clear USB-A Ports Output the [Error Code] icon.
-
Page 17: Frequently Asked Questions
If the [Error Code] icon appears, please see the TROUBLESHOOTING section or contact the Renogy technical support team for help. Refer to the last page of the User Guide for contact information. 2. Can I replace the battery in the PHOENIX Elite? No, the battery in PHOENIX Elite is not replaceable. -
Page 18: Warranty
We only provide after-sales services for products that are sold by RENOGY or retailers and distributors authorized by RENOGY. If you have purchased your unit from other channels, please contact your seller for more information about return and warranty. - Page 19 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
