New England Arbors Mayfair Raised Planter Box Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

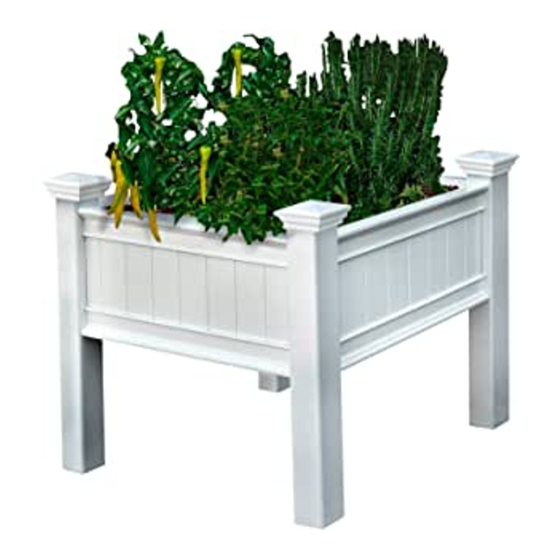

Mayfair Raised Planter Box

Please read through before starting assembly.

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST)

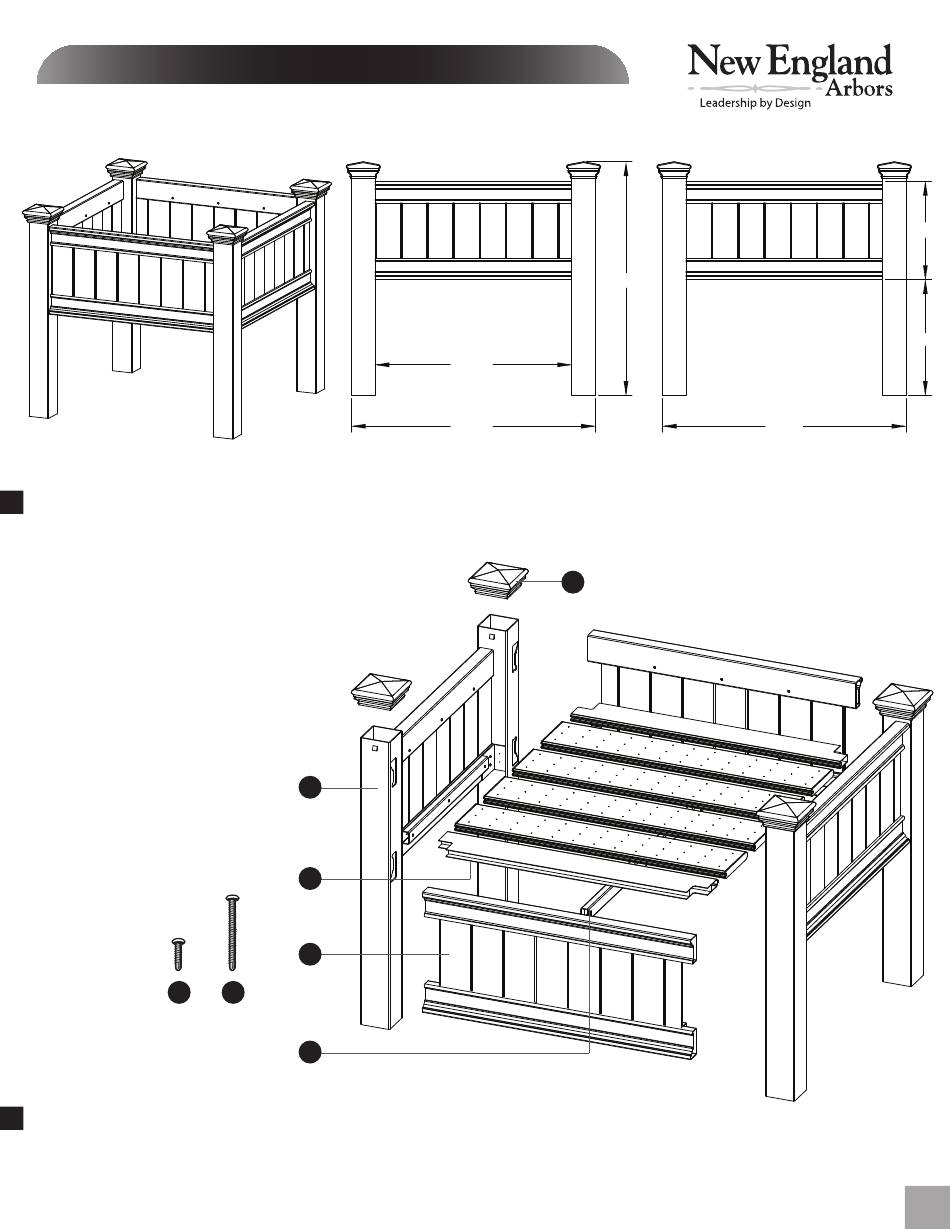

1. Pre-Assembled Side Wall Panels with Posts Connected (2)

2. Floor Panels (6)

3. Pre-Assembled Front and Back Wall Panels (2)

4. Floor Support (1)

5. Post Caps (4)

6. 5/8" Stainless Steel Screws (8)

7. 2 1/2" Stainless Steel Screws (8)

Not to Scale

General Information

• Read Instructions through carefully before beginning assembly.

• When assembling components, place on a non-abrasive surface

(i.e. shipping box) to avoid scratching.

• We recommend an area approx 4'x 8' for unobstructed assembling.

• You should not need to use excessive force when assembling components.

www.newenglandarbors.com

Ver 1.1/OCT 2012

Table of Contents

Do you have a question about the Mayfair Raised Planter Box and is the answer not in the manual?

Page 1 A S S E M B LY I N S T R U C T I O N S Mayfair Raised Planter Box www.newenglandarbors.com © ¦ § ¢ £ ¤ ¦ § ¤ ¨ ¢ £ © ¢ £ ¡...
Page 2 The Mayfair Raised Planter Box www.newenglandarbors.com S T E P O N E Lay down one of the pre-assembled side panel with post down and insert the two front and back panels as shown. Note: Make sure the support rail is on the bottom of the panels.
Page 3 The Mayfair Raised Planter Box S T E P T W O Place the floor support onto the support rail as shown. Note the notches and the orientation of the floor support. Layout and arrange the floor boards as shown and insert them one by one starting with either of the shorter floor board.
