A S S E M B LY I N S T R U C T I O N S

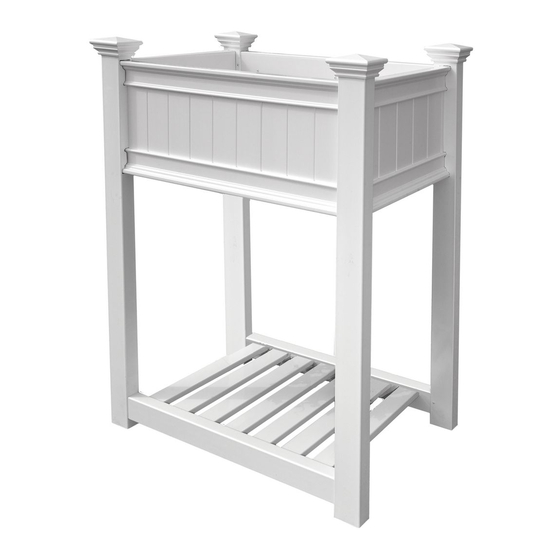

Urbanscape Raised Planter Box
Please read through before starting assembly.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Pre-Assembled Side Wall Panels with Posts Connected (2) - 10946
2. Floor Panels (6) - 10947
3. Pre-Assembled Front and Back Wall Panels (2) - 10948
4. Floor Supports (2) - 10949
5. Shelf Boards (7) - 10950
6. Shelf Rails (2) - 10951
7. Post Caps (4) - 10611
5/8 (16 mm) Stainless Steel Screws (4) -
8.
1 1/2 (38 mm) Stainless Steel Screws (8) -
9.
8
Not to Scale
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 4'x 8' (1.2 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
1
20016
2
20005
3
4
5
9
6
53.38" (136 cm)
36"
(91 cm)
7
www.newenglandarbors.com
www.newenglandarbors.co.uk
5.75"
(15 cm)
24"
(61 cm)
Ver 1.1/072517
1
Advertisement
Table of Contents
Related Manuals for New England Arbors Urbanscape Raised Planter Box
Summary of Contents for New England Arbors Urbanscape Raised Planter Box
-
Page 1: General Information
A S S E M B LY I N S T R U C T I O N S www.newenglandarbors.com Urbanscape Raised Planter Box www.newenglandarbors.co.uk 53.38" (136 cm) 5.75" (15 cm) 24" 36" (61 cm) (91 cm) Please read through before starting assembly. - Page 2 The Urbanscape Raised Planter Box www.newenglandarbors.com S T E P O N E www.newenglandarbors.co.uk Insert the seven Shelf Boards into the Shelf Rails as shown aside Note that there are tabs located at the ends of the Shelf Boards. Push Shelf Boards until tabs are locked into place.
- Page 3 The Urbanscape Raised Planter Box S T E P T W O Fasten the Pre-assembled side panels to the front and back walls using two 1 1/2” (38 mm) screws for the bottom rails and one of the 5/8” (16 mm) screw for the top rail. Repeat for all four corners.
- Page 4 The Urbanscape Raised Planter Box S T E P T H R E E To plant a hanging plant, remove two boards at a time and place the stem between the two boards as shown. Join the two boards together, holding the root of the plant between the opening of the boards.
