ASSEMBLY
GUIDE

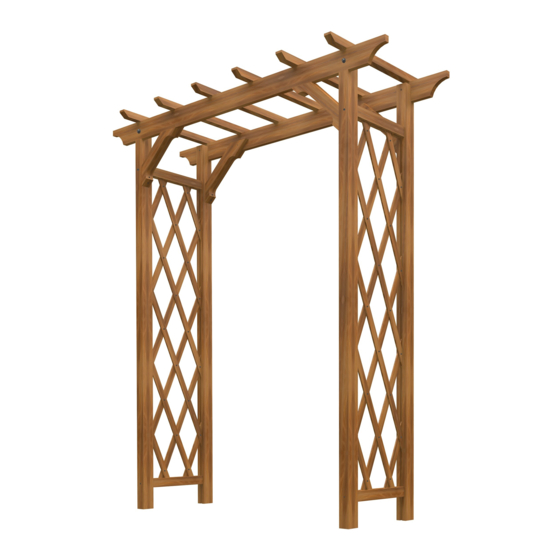

Heartwood Arbor
VA68897
VER 1.22 11/22/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heartwood VA68897 and is the answer not in the manual?

Questions and answers

Summary of Contents for New England Arbors Heartwood VA68897

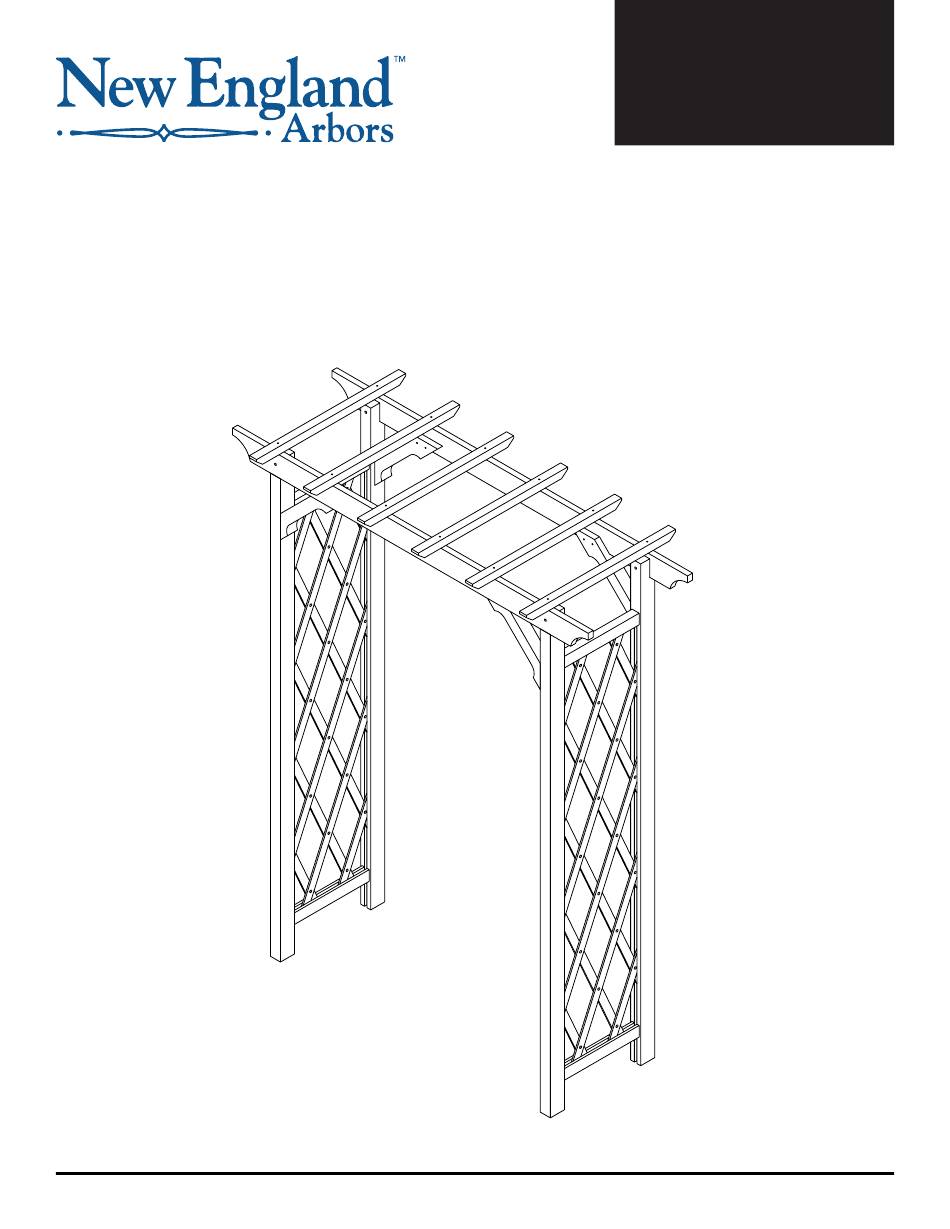

  • Page 1 ASSEMBLY GUIDE Heartwood Arbor VA68897 VER 1.22 11/22/19...
  • Page 2 GETTING STARTED First off, allow us to say thank you for the investment you have made in our fine Arbor. This Arbor is designed to be assembled and installed ideally by two people with basic carpentry knowledge and tools. Do not attempt alone, especially during the installation stage.
  • Page 3: Table Of Contents

    IN THIS GUIDE MATERIALS OVERVIEW MATERIALS BREAKDOWN HAMMER T-NUTS INTO ALL FOUR POSTS ATTACHING ONE RAIL, TWO POSTS AND LATTICE TOGETHER ATTACHING SECOND RAIL TO LATTICE AND POST ATTACHING SUPPORT BEAMS TO POSTS ATTACHING BRACES TO SUPPORT BEAMS ATTACHING FILTERS TO SUPPORT BEAMS ATTACHING METAL STAKES TO POSTS...
  • Page 4: Materials Overview

    MATERIALS OVERVIEW 1. 12022 - Filters (x6) 1 3/8” x 1” x 29 3/16” (3.50cm x 2.54cm x 75cm) 2. 12023 - Brace Right (x2) 2” x 3 1/8” x 17 7/16” (5cm x 8cm x 44.3cm) 3. 12039 - Brace Left (x2) 2”...
  • Page 5: Materials Breakdown

    MATERIALS BREAK DOWN 12024- 12022- 12023- BRACE 12039- BRACE RAIL FILTERS RIGHT LEFT (X4) (X6) (X2) (X2) 12028- METAL 12027- SUPPORT STAKE BEAM (X4) (X2) 20061 - BOLT, WASHER, T-NUT 2 3/4” (6.98CM) (X4) 20062 - SCREW A - 3 1/2” (8.89M) 12025- LATICE (X8) 12026 -...
  • Page 6: Hammer T-Nuts Into All Four

    Step 1 HAMMER T-NUTS INTO ALL FOUR POSTS (X4) VER 1.22 11/22/19...
  • Page 7: Attaching One Rail, Two Posts

    Step 2 ATTACHING ONE RAIL, TWO POSTS AND LATTICE TOGETHER 3 1/2” (8.89CM) (X2) VER 1.22 11/22/19...
  • Page 8: Attaching Second Rail To

    Step 3 ATTACHING SECOND RAIL TO LATTICE AND POST Repeat steps 2 and 3 for second arbor panel 3 1/2” (8.89CM) (X2) VER 1.22 11/22/19...
  • Page 9: Attaching Support Beams To

    Step 4 ATTACHING SUPPORT BEAMS TO POSTS Repeat for second beam 2 3/4” (6.98CM) (X4) VER 1.22 11/22/19...
  • Page 10: Attaching Braces To Support

    Step 5 ATTACHING BRACES TO SUPPORT BEAMS 1 3/4” (4.5CM) (X12) 2 3/8” (6CM) (X4) VER 1.22 11/22/19...
  • Page 11: Attaching Filters To Support

    Step 6 ATTACHING FILTERS TO SUPPORT BEAMS 2 3/8” (6CM) (X12) VER 1.22 11/22/19...
  • Page 12: Attaching Metal Stakes To

    Step 7 ATTACHING METAL STAKES TO POSTS 1 1/4”(3.18 CM) (X8) 4 3/4” (12cm) VER 1.22 11/22/19...
  • Page 13: Securing Arbor Into Ground

    Step 8 SECURING ARBOR INTO GROUND With a helper and yourself placed on either side, raise the arbor over desired area and press stakes into ground. This will keep your Arbor from tipping over. Depending on how hard your ground soil is, you may use a mallet to hammer down each top corner of your arbor.
  • Page 14: Option 2 (Step 1): Distance

    Option 2 STEP 1: DISTANCE BETWEEN WOOD POSTS MATERIALS NEEDED: Determine the area you want to start building your arbor. At one end of the desired area, hammer one wooden stake into the ground, tie a piece of string around it and measure to a length of 55 (139.7cm). This is where your second wood stake needs to be hammered into the ground.
  • Page 15: Option 2 (Step 3): Securing

    Option 2 STEP 2: SECURING ARBOR INTO CONCRETE FOOTINGS Carefully move your arbor to the side. With your desired area choosen, measure and mark the location of posts and dig 4 holes, 18” deep and 6” in diameter. Place your arbor now in the excavated holes with a few bricks 6”...
  • Page 16 We’re here for you. If you have any questions at all, don’t hesitate to contact us. NORTH AMERICA TOLL FREE 1-800-282-9346 UNITED KINGDOM (44) 2038 687160 Visit our website to chat with a support technician. WWW.NEWENGLANDARBORS.COM WWW.NEWENGLANDARBORS.CO.UK VER 1.22 11/22/19...
