New England Arbors VA68239 Assembly Instructions

6 x 6 african keyhole garden

Advertisement

A S S E M B LY I N S T R U C T I O N S
6 x 6 African Keyhole Garden
30 1/8 in
27 1/2 in
Please read through before starting assembly.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).

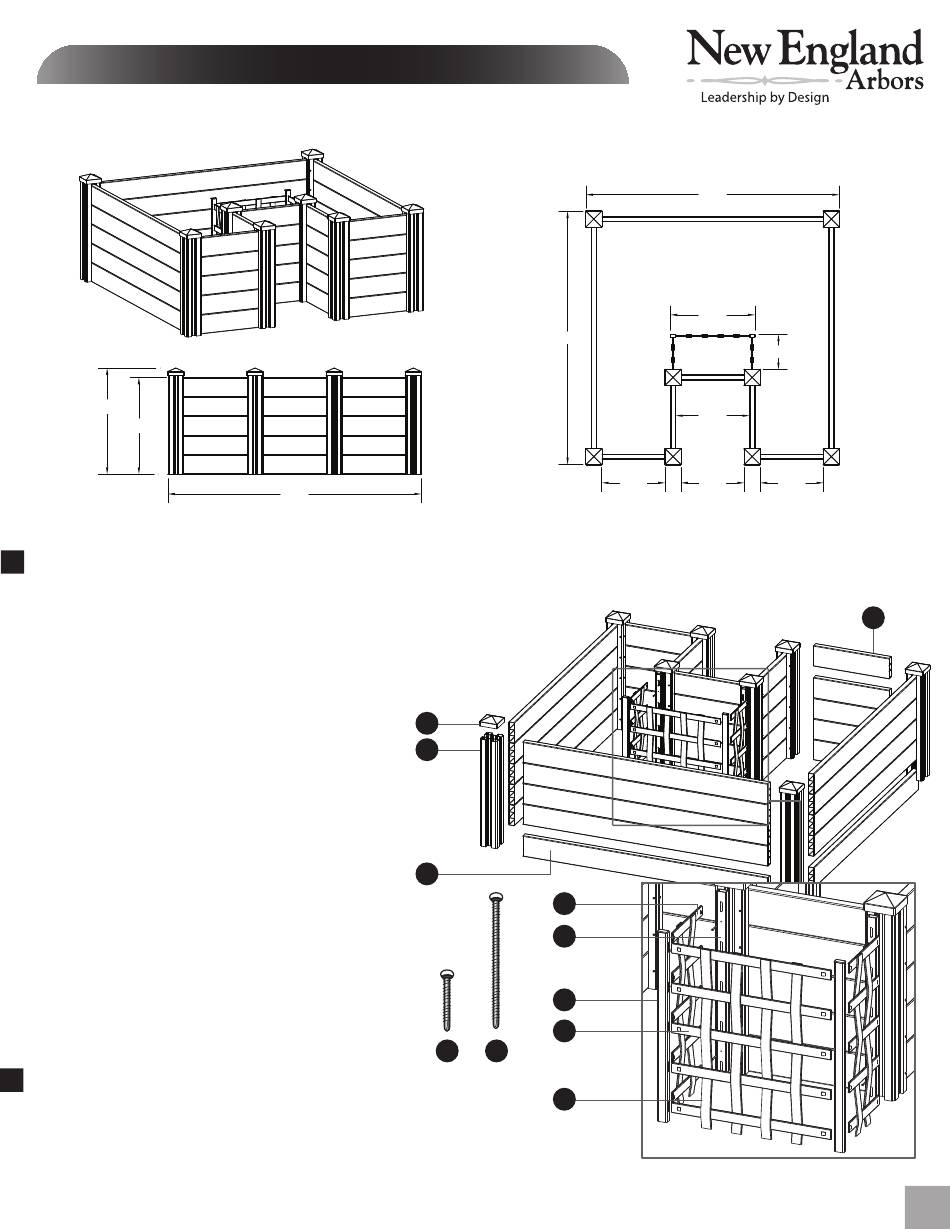

1. Post Caps (8)
2. Wall Boards - Short (25)
3. Wall Boards - Long (15)
4. Posts (8)
5. Basket Horizontal Slats - Short (10)
6. Basket Posts (2)
7. Basket Horizontal Slats - Long (5)
8. Basket Vertical Slats (8)
9. Basket Post Inserts (2)
10. 1-1/2" Self-Auguring Stainless Steel Screws (4)
11. 4" Self-Auguring Stainless Steel Screws (80)

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 8'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
72 in
1
4
3
10
Not to Scale
72 in
18 in
5
9
6
7
11
8
www.newenglandarbors.com
72 in
24 in
10 in
21 in
18 in
18 in
2
Ver 1.0/120114
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA68239 and is the answer not in the manual?

Questions and answers

Summary of Contents for New England Arbors VA68239

  • Page 1 A S S E M B LY I N S T R U C T I O N S 6 x 6 African Keyhole Garden www.newenglandarbors.com 72 in 24 in 72 in 10 in 30 1/8 in 21 in 27 1/2 in 18 in 18 in 18 in...
  • Page 2 S T E P O N E Composting Garden Assembly Starting with one corner post, insert two long boards into the post as shown and fasten with two of the 4” screws. Add another post, long board, and short board to the assembly and fasten with another two screws as shown.
  • Page 3 S T E P T W O Garden Basket Assembly Arrange the four basket posts as shown. Note that there are two different types of posts (routed holes on one face vs routed holes on two faces). Also note where those routed holes are facing. Connect two of the posts with five short slats as shown.
  • Page 4 S T E P T H R E E Garden Basket Installation Carefully insert the end posts of the basket assembly into the grooves of the posts as shown in figure 2. Fasten the basket into place using four 1 ½” screws through the pre-drilled holes.
