Materials Included:
Part #
Description
1
3 1/2" sq.. x 78" Posts
2
1 3/4" sq. x 29 3/4" Top rail
3
1 3/4" sq. x 29 3/4" Bottom rail
4
7/8" x 1 1/2" x 19 5/8" Spokes
5
7/8" x 1 1/2" x 15 5/8" Spokes
6
Keystone
7
Arches
8
45 3/8" Lattice channels
9
29 1/2" x 48" Diamond lattice
10
Slotted half couplers
11
Hardware kit (Includes):
3/4" Self-tapping stainless screws
Materials (Optional):
- Pre-mix concrete
Post layout for installation.
Quantity
(recommended for added stability).
30"
(Fig. 2)

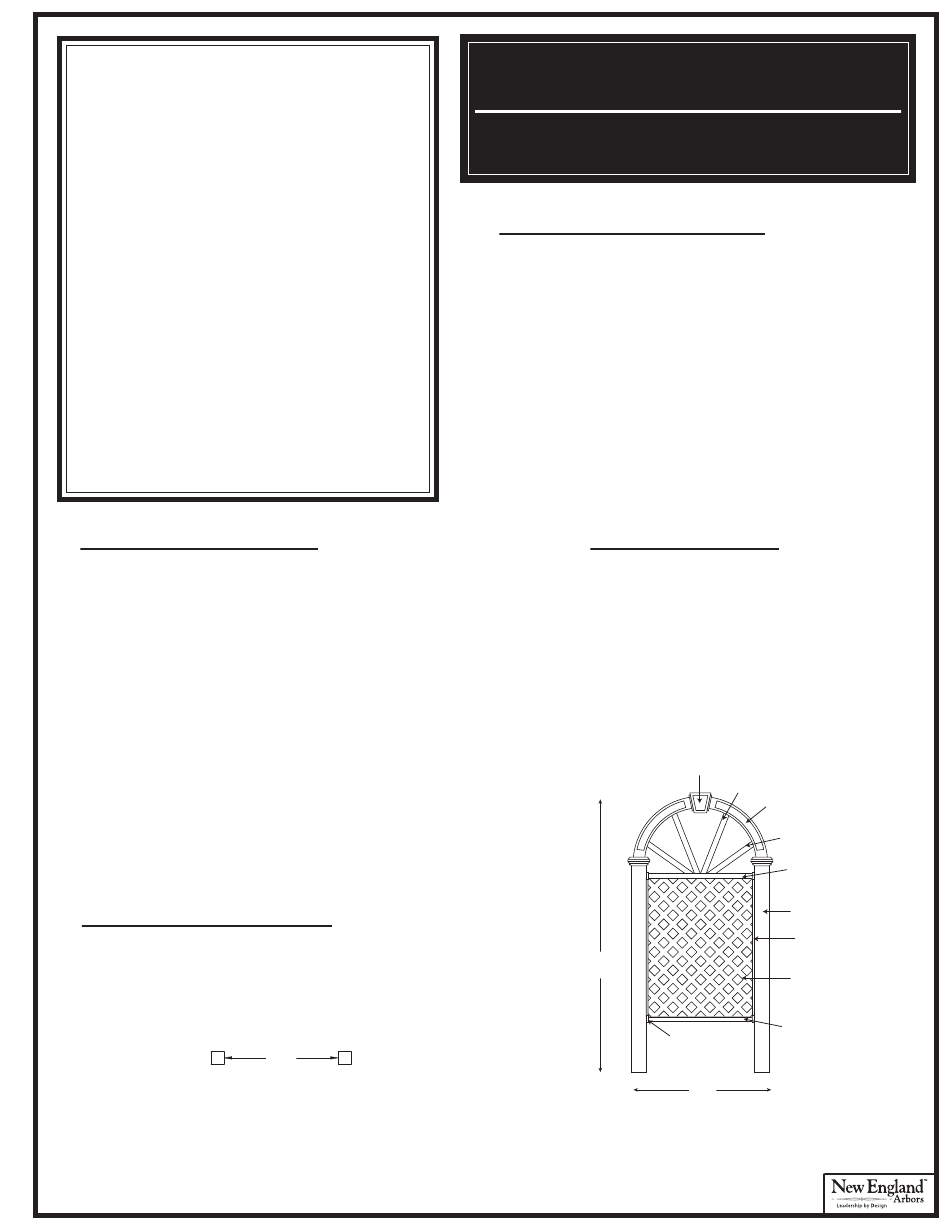

Nantucket Trellis
Assembly & Mounting Instructions
General Information:
- Read instructions through carefully before
beginning assembly.
- Identify each component from material list.
- When assembling components, place on a
non-abrasive surface to avoid scratches.
- Do not use excessive force when assembling
components.
- In the event of missing or defective parts,
please call our customer service department
Tools Required:
- Cordless drill with #2 Robertson
bit
2
- Tape measure
1
- Level
1
- Shovel
2
- Pencil
2
1
2
2
1
4
26
86.5"
Product dimensions & part
Part 6
Part 4
Part 7
Part 5
Part 2
Part 1
Part 8
Part 9
Part 3
Part 10
37"
(Fig. 1)
identification.
Ver 1.07
Advertisement
Related Manuals for New England Arbors Nantucket Trellis
Summary of Contents for New England Arbors Nantucket Trellis
- Page 1 Nantucket Trellis Assembly & Mounting Instructions General Information: - Read instructions through carefully before beginning assembly. - Identify each component from material list. - When assembling components, place on a non-abrasive surface to avoid scratches. - Do not use excessive force when assembling components.
- Page 2 Take the arches (part 7) and snap them into either side of the keystone (part 6). Using four screws, fasten the arches to the keystone on both sides as illustrated. Note: all screws are self-tapping and require no pre-drilling. Set aside the assembled arch. Lay out one of the posts (part 1).
- Page 3 Hold the top rail firmly in place, and fasten it to the coupler using the pilot hole provided. Fasten the bottom rail in the same manner. Slip the lattice (part 9) into the grooves between the bottom and top rail. Slide the lattice down to the post and into the lattice channel.
- Page 4 Dig two 12” deep holes in the desired location using the distance shown in (Fig. 2) on the front cover. Set the trellis into postion, and use a level to check the posts. Once you are satisfied with the orientation, fill in the holes. For added stabitily in high wind or high traffic areas, we recommend using pre-mix concrete (not included).
